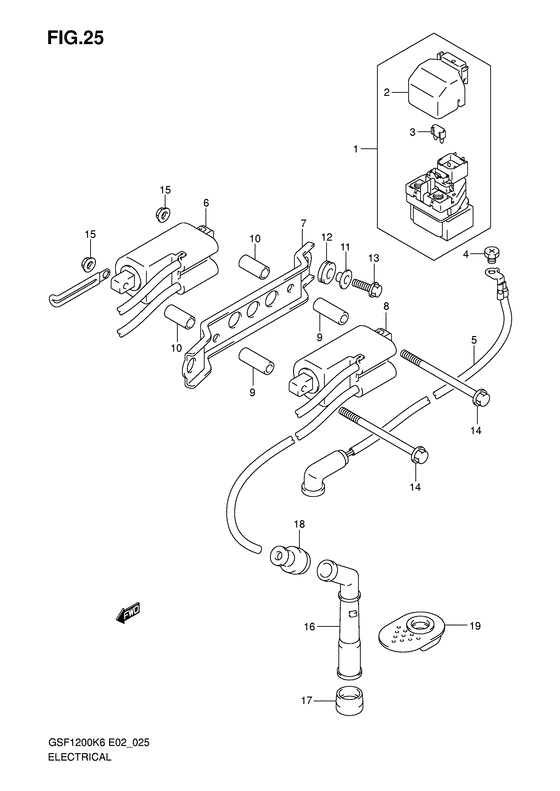

Electrical Diagram Suzuki GSF1200 Bandit
- Year
- 2006
- Model code
- GSF1200AK6(E2) K6
- Engine Capacity
- 1200
- Model
- GSF1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31800-38G00-000
Relay assy, starting motor
Relay assy, starting motor; |
31800-38G00-000 |
— | ||
| replacement | |||||
|
1
|
1
31800-38G10-000 RELAY ASSY,STARTING MOTORRelay assy, starting motor; |
31800-38G10-000 |
from US $58.51 |
||
|
2
|
2
31861-38G00-000 COVERCover, starter relay |
31861-38G00-000 |
from US $2.43 |
||
|
3
|
3
09481-30501-000 FUSE(30A)Fuse (30a); |
09481-30501-000 |
from US $1.08 |
||
|
4
|
4
09128-06013-000 SCREW(6X8)Screw Screw (6x8); |
09128-06013-000 |
from US $1.94 |
||
|
5
|
5
33810-49G00-000
WIRE,STARTER MOTOR LEAD
|
33810-49G00-000 |
— | ||
|
6
|
6
33410-38G00-000 COIL ASSY,IGNITION |
33410-38G00-000 |
US $218.24 |
||
|
7
|
7
33414-38G00-000 BRACKET,IGNITION COIL |
33414-38G00-000 |
US $5.15 |
||
|
8
|
8
33420-38G00-000 COIL ASSY,IGNITION |
33420-38G00-000 |
US $218.24 |
||
|
9
|
9
09180-06178-000 SPACER(6.4X10X22)Spacer, ign coil Spacer, ign coil; |
09180-06178-000 |
from US $1.22 |
||
|
10
|
10
09180-06203-000 SPACER(6.5X10.5X25)Spacer, ign coil Spacer, ign coil; |
09180-06203-000 |
from US $1.54 |
||
|
11
|
11
09180-06325-000 SPACER(6.2X8.4X6.9)Spacer, ign coil brkt; |
09180-06325-000 |
from US $1.82 |
||
|
12
|
12
09320-06017-000
CUSHION
|
09320-06017-000 |
— | ||
| replacement | |||||
|
12
|
12
09320-08516-000 Cushion(8X18X5.8) |
09320-08516-000 |
from US $3.35 |
||
|
13
|
13
01550-06203-000
Bolt
Bolt, ign coil brkt; |
01550-06203-000 |
— | ||
| replacement | |||||
|
13
|
13
01550-0620B-000 BoltBolt, inspection cap Bolt, ign coil brkt; |
01550-0620B-000 |
from US $0.76 |
||
|
14
|
14
01550-06803-000
Bolt
Bolt, ign coil; |
01550-06803-000 |
— | ||
| replacement | |||||
|
14
|
14
01550-0680B-000 BoltBolt, ign coil; |
01550-0680B-000 |
from US $1.22 |
||
|
15
|
15
08316-10063-000
Nut
Nut, ignition coil; |
08316-10063-000 |
— | ||
| replacement | |||||
|
15
|
15
08316-1006B-000 NUTNut, ignition coil; |
08316-1006B-000 |
from US $0.76 |
||
|
16
|
16
33510-48B10-000 Cap,spark plugCap, spark plug; |
33510-48B10-000 |
from US $18.24 |
||
|
17
|
17
33541-23E01-000 SEAL,SPARK PLUG CAPSeal, spark plug cap; |
33541-23E01-000 |
from US $2.58 |
||
|
18
|
18
33542-38B00-000 SEAL,HIGH TENSION CORDSeal, hightension cord Seal, high tension cord; |
33542-38B00-000 |
from US $1.52 |
||
|
19
|
19
33543-32F00-000 COVER,SPARK PLUG CAP |
33543-32F00-000 |
from US $9.88 |
||
