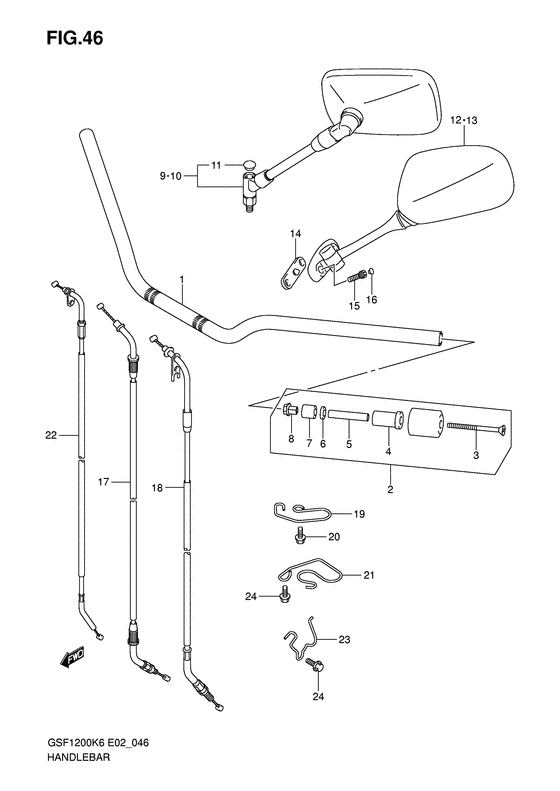

Handlebar Diagram Suzuki GSF1200 Bandit
- Year
- 2006
- Model code
- GSF1200AK6(E2) K6
- Engine Capacity
- 1200
- Model
- GSF1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56111-49G00-000 HANDLEBAR |
56111-49G00-000 |
from US $184.80 |
||
|
2
|
2
56200-38821-000
Balancer set
Balancer set, handlebar; |
56200-38821-000 |
— | ||
| replacements | |||||
|
2
|
2
56200-38823-000
BALANCER SET,HANDLEBAR
Balancer set, handlebar; |
56200-38823-000 |
— | ||
|
2
|
2
56200-38824-000 Balancer Set,handlebarBalancer set, handlebar; |
56200-38824-000 |
from US $44 |
||
|
3
|
3
09127-06018-000 SCREW(6X110) |
09127-06018-000 |
from US $1.82 |
||
|
4
|
4
56272-19D00-000 EXPANDER,HANDLE BALANCERExpander, handle Expander, outer; |
56272-19D00-000 |
from US $7.25 |
||
|
5
|
5
56276-17D00-000 SPACER,EXPANDER |
56276-17D00-000 |
from US $1.82 |
||
|
6
|
6
09160-06131-000 WASHER(6.5X16X4)Washer; |
09160-06131-000 |
from US $0.76 |
||
|
7
|
7
56272-10G00-000
EXPANDER,HANDLE BALANCER
Expander, inner; |
56272-10G00-000 |
— | ||
| replacement | |||||
|
7
|
7
56272-10G01-000 Expander,handle BalancerExpander, inner; |
56272-10G01-000 |
US $7.55 |
||
|
8
|
8
56273-10G00-000
Nut
|
56273-10G00-000 |
— | ||
| replacement | |||||
|
8
|
8
56273-10G10-000 NUT,HANDLE BALANCER |
56273-10G10-000 |
from US $4.10 |
||
|
9
|
9
56500-03F00-000
Mirror assy, rear view rh
Mirror, rear view rh; Gsf1200 |
56500-03F00-000 |
— | ||
| replacement | |||||
|
9
|
9
56500-03F90-000 MIRROR ASSY,RR VIEW,RMirror, rear view rh; Gsf1200 |
56500-03F90-000 |
from US $256.17 |
||
|
9
|
9
56500-03F90-000 MIRROR ASSY,RR VIEW,RGsf1200a |
56500-03F90-000 |
from US $256.17 |
||
|
10
|
10
56600-03F00-000
MIRROR ASSY,RR VIEW,L
Mirror, rear view lh; Gsf1200 |
56600-03F00-000 |
— | ||
| replacement | |||||
|
10
|
10
56600-03F90-000 MIRROR ASSY,RR VIEW,LMirror, rear view lh; Gsf1200 |
56600-03F90-000 |
from US $150.55 |
||
|
10
|
10
56600-03F90-000 MIRROR ASSY,RR VIEW,LGsf1200a |
56600-03F90-000 |
from US $150.55 |
||
|
11
|
11
56524-28600-000
Cap, mirror bas
Gsf1200/a |
56524-28600-000 |
— | ||
| replacement | |||||
|
11
|
11
56524-28601-000 CAPGsf1200/a |
56524-28601-000 |
from US $4.40 |
||
|
12
|
12
56500-38G20-000
Mirror, rear view rh
Gsf1200s/sa |
56500-38G20-000 |
— | ||
| replacement | |||||
|
12
|
12
56500-38G21-000 MIRROR ASSY,RR VIEW,RGsf1200s/sa |
56500-38G21-000 |
from US $66.88 |
||
|
13
|
13
56600-38G20-000
Mirror, rear view lh
Gsf1200s/sa |
56600-38G20-000 |
— | ||
| replacement | |||||
|
13
|
13
56600-38G21-000 MIRROR ASSY,RR VIEW,LGsf1200s/sa |
56600-38G21-000 |
from US $66.88 |
||
|
14
|
14
94576-24F00-000 CUSHION,RR VIEW MIRRORGsf1200s/sa |
94576-24F00-000 |
from US $4.10 |
||
|
15
|
15
07130-06163-000
Bolt, oil hose
Gsf1200s/sa |
07130-06163-000 |
— | ||
| replacements | |||||
|
15
|
15
07130-0616B-000 BoltGsf1200s/sa |
07130-0616B-000 |
from US $0.91 |
||
|
15
|
15
07130-0616A-000 BoltBolt, piston jet valve Gsf1200s/sa |
07130-0616A-000 |
from US $0.96 |
||
|
16
|
16
09250-05009-000 CAP(OD:10)Cap, inlet case Gsf1200s/sa |
09250-05009-000 |
from US $1.06 |
||
|
17
|
17
58300-49G00-000 Cable assy, throttle no.1 |
58300-49G00-000 |
US $45.63 |
||
|
18
|
18
58300-49G10-000 Cable assy, throttle no.2 |
58300-49G10-000 |
US $45.63 |
||
|
19
|
19
58631-38G00-000 GUIDE,THROTTLE CABLE NO.2Gsf1200s/sa |
58631-38G00-000 |
from US $6.40 |
||
|
20
|
20
02142-05103-000
Screw 5x10
Screw; |
02142-05103-000 |
— | ||
| replacement | |||||
|
20
|
20
02142-0510B-000 SCREWBolt Screw; |
02142-0510B-000 |
from US $0.72 |
||
|
21
|
21
58621-38G00-000 GUIDE,THROTTLE CABLEGsf1200s/sa |
58621-38G00-000 |
US $7.69 |
||
|
22
|
22
58410-49G00-000 CABLE,STARTER |
58410-49G00-000 |
US $29.62 |
||
|
23
|
23
58622-38G00-000 GUIDE,CABLE,R |
58622-38G00-000 |
from US $6.40 |
||
|
24
|
24
01550-06163-000
Bolt
Bolt; |
01550-06163-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0616B-000 BoltBolt; |
01550-0616B-000 |
from US $0.76 |
||
|
24
|
24
01550-0616A-000 BoltBolt; |
01550-0616A-000 |
from US $0.76 |
||
