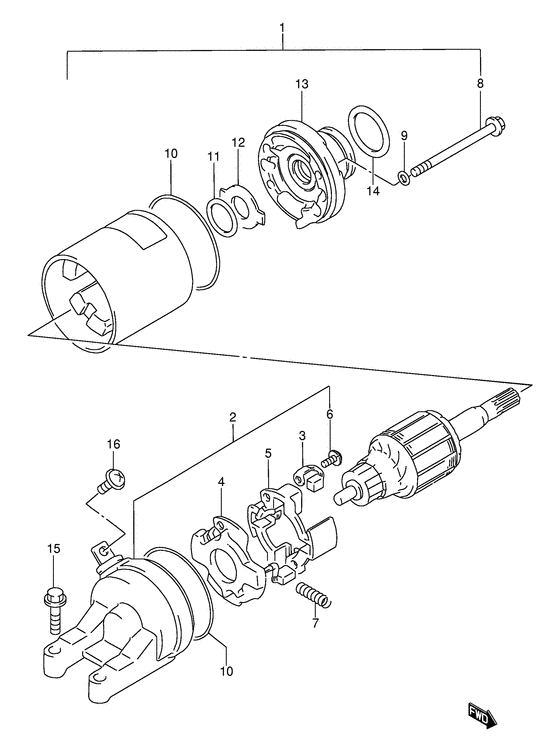

Starter motor Diagram Suzuki GSF400 Bandit
- Year
- 1997
- Model code
- GSF400VV(E30) V
- Engine Capacity
- 400
- Model
- GSF400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-32C11-000
Motor assy, starting
|
31100-32C11-000 |
— | ||
| replacement | |||||
|
1
|
1
31100-08F00-000 MOTOR ASSY,STARTING |
31100-08F00-000 |
from US $641.22 |
||
|
2
|
2
31175-32C11-000
FRAME ASSY,COMMUTATOR END
Frame assy, commutator end; |
31175-32C11-000 |
— | ||
|
3
|
3
31132-32C10-000 BRUSH |
31132-32C10-000 |
from US $3.92 |
||
|
4
|
4
31130-32C20-000 BRUSH SUB ASSY,STARTERBrush sub assy, starter Brush sub assy, starter; |
31130-32C20-000 |
from US $5.47 |
||
|
5
|
5
31133-32C10-000 HOLDER,BRUSH |
31133-32C10-000 |
from US $3.50 |
||
|
6
|
6
02112-34123-000
Screw
|
02112-34123-000 |
— | ||
| replacement | |||||
|
6
|
6
02112-3412B-000 SCREW |
02112-3412B-000 |
from US $3.15 |
||
|
7
|
7
31135-32C10-000 SPRING |
31135-32C10-000 |
from US $2.65 |
||
|
8
|
8
31281-32C10-000 Bolt |
31281-32C10-000 |
from US $6.15 |
||
|
9
|
9
31156-38300-000 O RING |
31156-38300-000 |
from US $2.13 |
||
|
10
|
10
31264-32C10-000 O RING |
31264-32C10-000 |
from US $4.05 |
||
|
11
|
11
31361-38300-000 SHIMShim, no.3; |
31361-38300-000 |
from US $1.60 |
||
|
12
|
12
31361-32C10-000 PLATE,LOCKPlate, lock; |
31361-32C10-000 |
US $1.60 |
||
|
13
|
13
31150-06C00-000 BRACKET |
31150-06C00-000 |
US $73.60 |
||
|
14
|
14
09280-24003-000 O RING(D:3,ID:24.5)O ring, outer O ring (d:3.1,id:24.5); |
09280-24003-000 |
from US $1.67 |
||
|
15
|
15
09128-06082-000
Screw (6x25)
Screw (6x25); |
09128-06082-000 |
— | ||
| replacement | |||||
|
15
|
15
01500-0625A-000 BoltBolt, gear shift arm Screw (6x25); |
01500-0625A-000 |
from US $0.96 |
||
|
16
|
16
09137-05004-000 SCREW(5X8)Screw (5x8) Screw (5x8); |
09137-05004-000 |
from US $3.15 |
||
