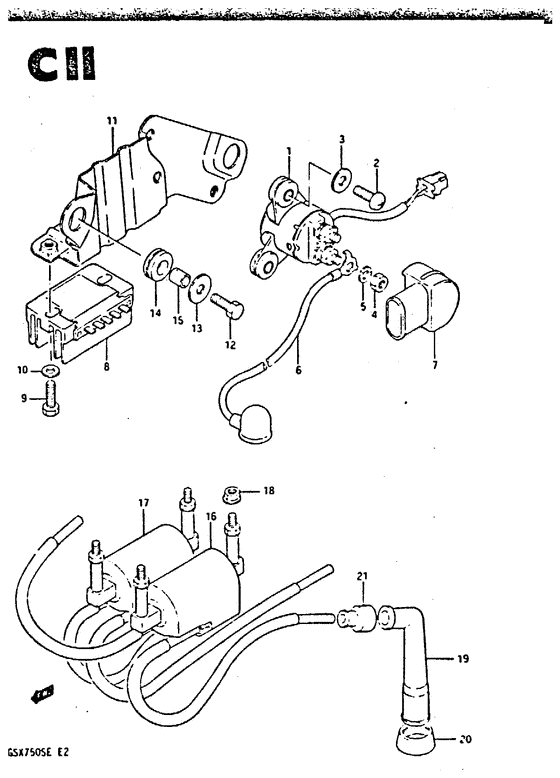

Electrical Diagram Suzuki GSX750
- Year
- 1984
- Model code
- GSX750SE(E2) E
- Engine Capacity
- 750
- Model
- GSX750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31800-43411-000 RELAY ASSY,STARTING MOTORRelay, starting motor |
31800-43411-000 |
from US $72.13 |
||
|
2
|
2
02112-06208-000
Screw
|
02112-06208-000 |
— | ||
| replacement | |||||
|
2
|
2
02112-06207-000 SCREW |
02112-06207-000 |
from US $0.80 |
||
|
3
|
3
09160-06007-000
Washer
|
09160-06007-000 |
— | ||
| replacement | |||||
|
3
|
3
09160-06084-000 WASHER(6.5X18X1.6) |
09160-06084-000 |
from US $0.76 |
||
|
4
|
4
08310-11066-000
Nut
|
08310-11066-000 |
— | ||
| replacements | |||||
|
4
|
4
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
4
|
4
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
5
|
5
08321-21066-000
Lock washer
|
08321-21066-000 |
— | ||
| replacement | |||||
|
5
|
5
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
6
|
6
33850-08A00-000
Lead wire, starting motor
|
33850-08A00-000 |
— | ||
| replacement | |||||
|
6
|
6
33850-44B01-000 WIRE,STARTER MOTOR LEADLead wire, starting motor |
33850-44B01-000 |
from US $23.74 |
||
|
7
|
7
33624-00A10-000
Cap,starter rel
|
33624-00A10-000 |
— | ||
|
8
|
8
32800-09300-000
Rectifier/regul
|
32800-09300-000 |
— | ||
| replacement | |||||
|
8
|
8
32800-09301-000
Rectifier Assy
|
32800-09301-000 |
— | ||
|
9
|
9
09128-06006-000 BOLT(6X20) |
09128-06006-000 |
from US $1.06 |
||
| replacement | |||||
|
9
|
9
09128-06057-000 BOLT(6X20)Bolt (6x20) |
09128-06057-000 |
from US $1.12 |
||
|
10
|
10
08322-21067-000
Washer
|
08322-21067-000 |
— | ||
| replacement | |||||
|
10
|
10
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.65 |
||
|
11
|
11
47411-08A00-000
Plate, parts holder
|
47411-08A00-000 |
— | ||
|
12
|
12
01107-06166-000
Bolt
|
01107-06166-000 |
— | ||
| replacement | |||||
|
12
|
12
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
13
|
13
09160-06027-000
Washer (6.5x20x1.2)
|
09160-06027-000 |
— | ||
| replacement | |||||
|
13
|
13
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) |
09160-06077-000 |
from US $1.12 |
||
|
14
|
14
09320-08007-000
Cushion
|
09320-08007-000 |
— | ||
| replacements | |||||
|
14
|
14
09320-08021-000
CUSHION
|
09320-08021-000 |
— | ||
|
14
|
14
09320-08510-000 Cushion(8.5X20X8) |
09320-08510-000 |
from US $1.82 |
||
|
15
|
15
09180-06038-000 SPACER(6.1X9X7.5)Spacer (6.1x9x7.5) Spacer; |
09180-06038-000 |
from US $0.61 |
||
|
16
|
16
33410-31310-000
Coil, ignition 1-4
|
33410-31310-000 |
— | ||
| replacement | |||||
|
16
|
16
33410-31311-000 COIL ASSY,IGNITION |
33410-31311-000 |
from US $133.60 |
||
|
17
|
17
33420-31310-000
Coil, ignition 2-3
|
33420-31310-000 |
— | ||
| replacement | |||||
|
17
|
17
33410-31311-000 COIL ASSY,IGNITION |
33410-31311-000 |
from US $133.60 |
||
|
18
|
18
08316-16066-000
Nut
|
08316-16066-000 |
— | ||
| replacement | |||||
|
18
|
18
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
19
|
19
33510-11410-000 Cap,spark plugCap, spark plug Cap, spark plug; |
33510-11410-000 |
from US $28.16 |
||
|
20
|
20
33541-24510-000
Seal, spark plug cap
Seal, plug; |
33541-24510-000 |
— | ||
| replacement | |||||
|
20
|
20
33541-47D00-000 SEAL,SPARK PLUGSeal, spark plug Seal, plug; |
33541-47D00-000 |
from US $4.26 |
||
|
21
|
21
33542-98000-000
Seal, hightension coad
|
33542-98000-000 |
— | ||
| replacement | |||||
|
21
|
21
33542-38B00-000 SEAL,HIGH TENSION CORDSeal, hightension cord |
33542-38B00-000 |
from US $1.52 |
||
