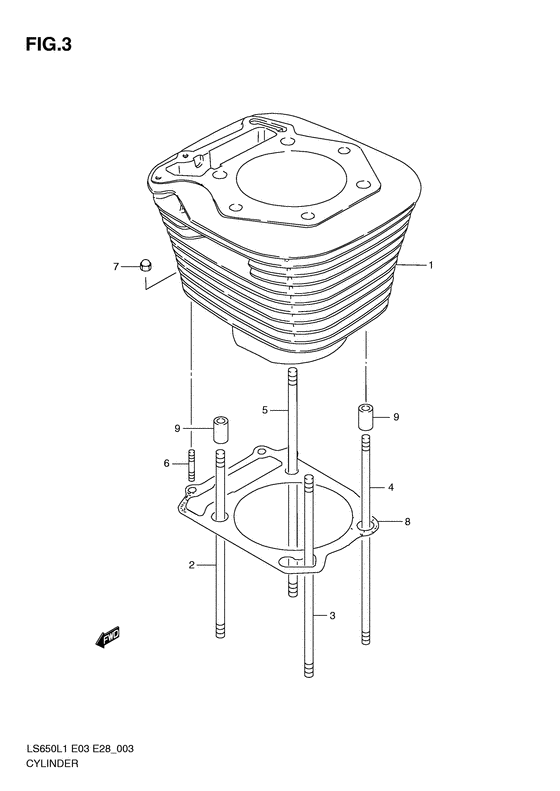

Cylinder Diagram Suzuki LS650 Boulevard S40
- Year
- 2011
- Model code
- LS650L1(E3/E28) L1
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- Boulevard S40
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11210-24B07-0F0 CYLINDER |
11210-24B07-0F0 |
US $798.72 |
||
| replacement | |||||
|
1
|
1
11210-24B08-0F0 CYLINDER |
11210-24B08-0F0 |
from US $1,116.06 |
||
|
2
|
2
09108-09001-000 BOLT,STUDStud bolt (9x166) Stud bolt (9x166); |
09108-09001-000 |
from US $12.95 |
||
|
3
|
3
09108-09002-000 BOLT,STUDStud bolt (9x178) Stud bolt (9x178); |
09108-09002-000 |
from US $14.79 |
||
|
4
|
4
09108-09003-000 BOLT,STUDStud bolt (9x183) Stud bolt (9x183); |
09108-09003-000 |
from US $14.79 |
||
|
5
|
5
09108-09004-000 BOLT,STUDStud bolt (9x203) Stud bolt (9x203); |
09108-09004-000 |
from US $14.98 |
||
|
6
|
6
01421-0620A-000 BOLT,STUDStud bolt; |
01421-0620A-000 |
from US $1.12 |
||
|
7
|
7
09145-06007-000 NUT |
09145-06007-000 |
from US $3.71 |
||
|
8
|
8
11241-24B01-H17 GASKET,CYLINDERGasket, cylinder |
11241-24B01-H17 |
from US $9.73 |
||
|
9
|
9
04211-13189-000 PINPin; |
04211-13189-000 |
from US $1.22 |
||
