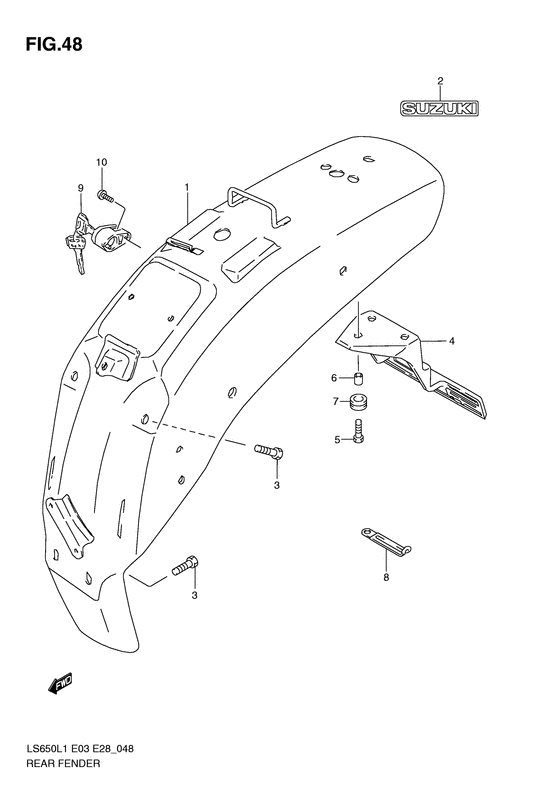

Rear fender Diagram Suzuki LS650 Boulevard S40
- Year
- 2011
- Model code
- LS650L1(E3/E28) L1
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- Boulevard S40
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63100-24C00-YUE FENDER ASSY,RRFender assy, rear (silver); |
63100-24C00-YUE |
from US $345.92 |
||
|
1
|
1
63100-24C00-YUK FENDER ASSY,RRFender, assy rear (orange); |
63100-24C00-YUK |
from US $345.92 |
||
|
2
|
2
68271-34A00-YES
EMBLEM,SUZUKI
Emblem, \suzuki\ (silver); |
68271-34A00-YES |
— | ||
| replacement | |||||
|
2
|
2
68271-34A01-YES Emblem,"suzuki"Emblem, \suzuki\ (silver); |
68271-34A01-YES |
US $10.27 |
||
|
3
|
3
09103-08419-000 BOLT(8X25)Bolt (8x25); |
09103-08419-000 |
from US $2.08 |
||
|
4
|
4
35916-24B01-000 BRACKET,LICENSE PLATEBracket, licence plate Bracket, license plate; |
35916-24B01-000 |
from US $55.94 |
||
|
5
|
5
09116-06010-000 BOLT(6X20)Bolt (6x20); |
09116-06010-000 |
from US $0.77 |
||
|
6
|
6
09180-06263-000 SPACER(6.5X9X9)Spacer (6.5x9x9); |
09180-06263-000 |
from US $1.52 |
||
|
7
|
7
09320-09016-000 CUSHIONCushion, holder |
09320-09016-000 |
from US $1.52 |
||
|
8
|
8
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire Clamp (l:45); |
09404-06429-000 |
from US $1.52 |
||
|
9
|
9
95700-38821-000 LOCK SET,HELMETLock set, helmet Lock set, helmet; |
95700-38821-000 |
from US $32.94 |
||
|
10
|
10
02112-05127-000 SCREWScrew, vacuum sw valve |
02112-05127-000 |
from US $0.76 |
||
