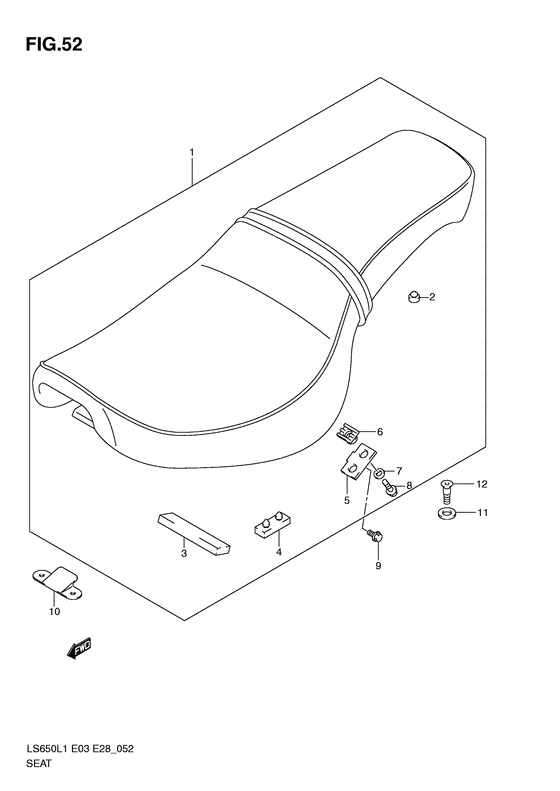

Seat Diagram Suzuki LS650 Boulevard S40
- Year
- 2011
- Model code
- LS650L1(E3/E28) L1
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- Boulevard S40
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45100-24BA0-HW9 SEAT ASSY |
45100-24BA0-HW9 |
from US $283.36 |
||
|
2
|
2
45149-24B00-000
CUSHION,SEAT
Cushion, seat; |
45149-24B00-000 |
— | ||
| replacement | |||||
|
2
|
2
45149-24B01-000 Cushion,seatCushion, seat; |
45149-24B01-000 |
from US $2.02 |
||
|
3
|
3
45116-24B00-000 CUSHION,CTR FRCushion, center front |
45116-24B00-000 |
from US $5.81 |
||
|
4
|
4
45149-43500-000 CUSHION,SEAT |
45149-43500-000 |
from US $4.80 |
||
|
5
|
5
45114-24B00-000 BRACKET,SEAT RRBracket, seat rear; |
45114-24B00-000 |
from US $5.81 |
||
|
6
|
6
45118-24B00-000 CUSHION,SEAT RR BRACKETCushion, seat rear bracket; |
45118-24B00-000 |
from US $2.13 |
||
|
7
|
7
09160-06066-000 WASHER(6.5X20X1.6)Washer, throttle lever (6.5x20x1.6) Washer (6.5x20x1.6); |
09160-06066-000 |
from US $1.12 |
||
|
8
|
8
01550-0625B-000 BoltBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
9
|
9
01550-0612B-000 BoltBolt, clamp Bolt (6x12); |
01550-0612B-000 |
from US $0.76 |
||
|
10
|
10
45119-24B00-000 PLATE,SEAT HOOK FRPlate, seat hook & rear Plate, seat hook front; |
45119-24B00-000 |
from US $1.96 |
||
|
11
|
11
45149-24BA0-000 CUSHION,SEAT RR |
45149-24BA0-000 |
US $6.99 |
||
|
12
|
12
09139-06115-000 SCREW(6X12)Screw (6x12); |
09139-06115-000 |
from US $7.80 |
||
