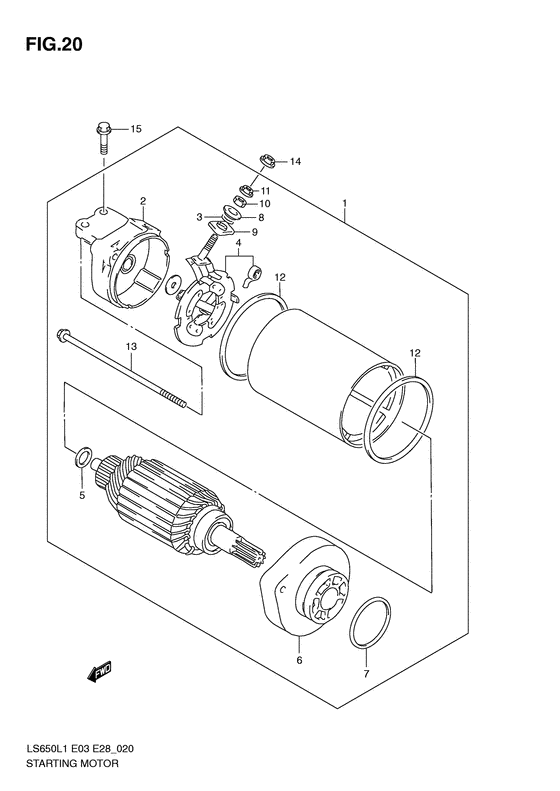

Starting motor Diagram Suzuki LS650 Boulevard S40
- Year
- 2011
- Model code
- LS650L1(E3/E28) L1
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- Boulevard S40
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-07F00-000 MOTOR ASSY,STARTING |
31100-07F00-000 |
from US $541.78 |
||
|
2
|
2
31170-07F00-000 FRAME ASSYFrame assy; |
31170-07F00-000 |
US $66.61 |
||
|
3
|
3
31143-38300-000 O RINGO ring |
31143-38300-000 |
from US $2.43 |
||
|
4
|
4
31132-45C00-000 HOLDER SET,BRUSHHolder set, brush Holder set, brush; |
31132-45C00-000 |
from US $20.24 |
||
|
5
|
5
31170-43400-000 SHIM SET,STARTING MOTORShim set Shim set; |
31170-43400-000 |
from US $2.50 |
||
|
6
|
6
31150-44B10-000 HOUSING ASSYHousing assy; |
31150-44B10-000 |
US $73.60 |
||
|
7
|
7
31156-48B00-000 O RING |
31156-48B00-000 |
from US $4.05 |
||
|
8
|
8
31172-38300-000 BUSHINGBushing (a) Bushing; |
31172-38300-000 |
from US $3.09 |
||
|
9
|
9
31173-88C00-000 BUSHING |
31173-88C00-000 |
from US $5.12 |
||
|
10
|
10
08310-00067-000 NUT |
08310-00067-000 |
from US $0.76 |
||
|
11
|
11
08361-3506A-000 NUT |
08361-3506A-000 |
from US $0.80 |
||
|
12
|
12
31264-44110-000 O RING |
31264-44110-000 |
from US $5.78 |
||
|
13
|
13
31281-24B00-000 Bolt |
31281-24B00-000 |
US $6.93 |
||
| replacement | |||||
|
13
|
13
31281-31D00-000 BoltScrew |
31281-31D00-000 |
from US $4.31 |
||
|
14
|
14
08361-3506A-000 NUT |
08361-3506A-000 |
from US $0.80 |
||
|
15
|
15
09103-06223-000 BOLT(6X20)Bolt, cl release arm Bolt (6x20); |
09103-06223-000 |
from US $3.89 |
||
