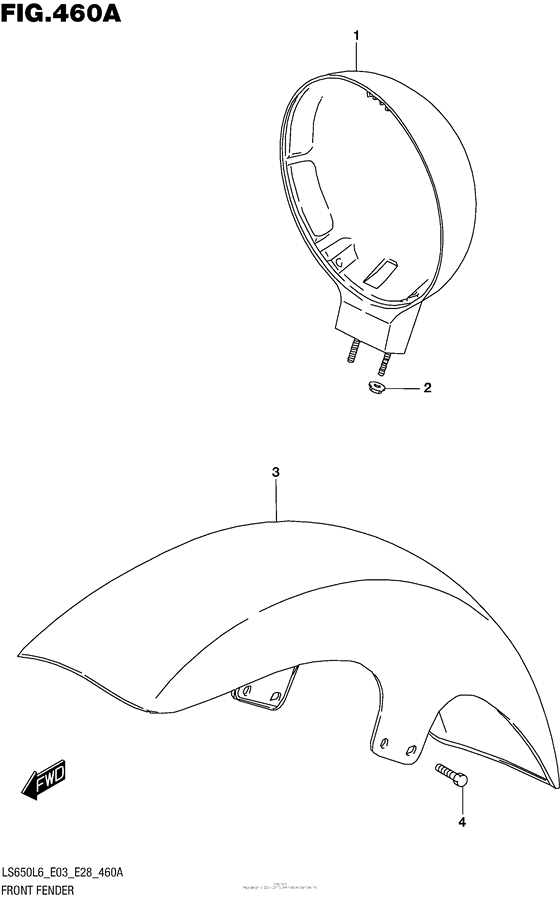

Front Fender Diagram Suzuki LS650 Boulevard S40
- Year
- 2016
- Model code
- LS650L6
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- Boulevard S40
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51810-38A03-000 Housing,headlamp |
51810-38A03-000 |
from US $122.40 |
||
|
2
|
2
08319-3106A-000 NUT |
08319-3106A-000 |
from US $1.44 |
||
|
3-1
|
3-1
53110-24B01-YSF FENDER COMP,FRONT |
53110-24B01-YSF |
from US $224.48 |
||
|
3-2
|
3-2
53110-24B01-YWW FENDER COMP,FRONT |
53110-24B01-YWW |
from US $277.81 |
||
|
4
|
4
01570-0616A-000 Bolt |
01570-0616A-000 |
from US $0.96 |
