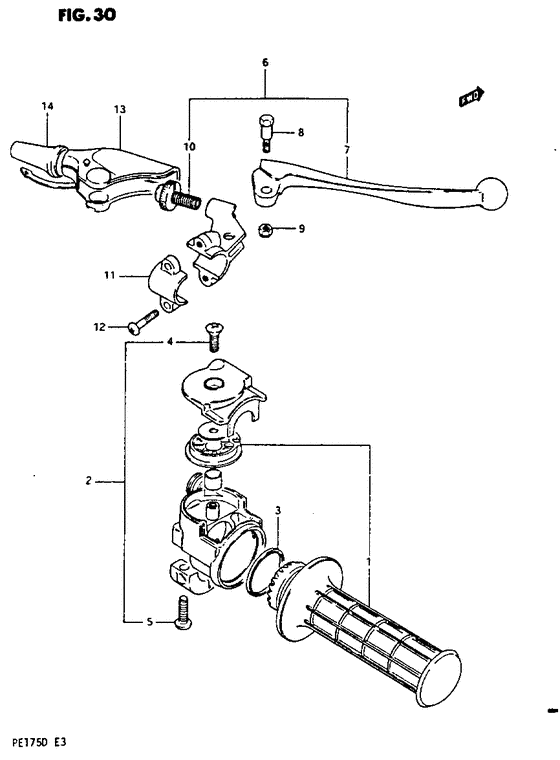

Rh handle grip Diagram Suzuki PE175
- Year
- 1983
- Model code
- PE175D(Z/D) D
- Engine Capacity
- 175
- Model
- PE175
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57110-40810-000
Grip set thrott
|
57110-40810-000 |
— | ||
|
2
|
2
57100-40330-000
CASE ASSY,THROTTLE
Case assy,throttle; |
57100-40330-000 |
— | ||
|
3
|
3
57184-40300-000
V ring
|
57184-40300-000 |
— | ||
|
4
|
4
02132-05167-000
Screw
|
02132-05167-000 |
— | ||
| replacement | |||||
|
4
|
4
02122-05167-000 SCREW |
02122-05167-000 |
from US $0.80 |
||
|
5
|
5
02112-05208-000
Screw
|
02112-05208-000 |
— | ||
| replacement | |||||
|
5
|
5
02112-05207-000 SCREW |
02112-05207-000 |
from US $3.11 |
||
|
6
|
6
57300-40600-000
Lever assy brak
|
57300-40600-000 |
— | ||
|
7
|
7
57420-29400-000
LEVER,BRAKE
|
57420-29400-000 |
— | ||
|
8
|
8
57431-11013-000 BOLT,LEVER PIVOTBolt,lever pivot; |
57431-11013-000 |
from US $2.72 |
||
|
9
|
9
08319-21068-000
U nut
U nut; |
08319-21068-000 |
— | ||
| replacement | |||||
|
9
|
9
08319-2106A-000 NUTU nut; |
08319-2106A-000 |
from US $1.28 |
||
|
10
|
10
57441-40610-000
Adjuster cable
|
57441-40610-000 |
— | ||
|
11
|
11
57512-14100-000
Bracket holder
|
57512-14100-000 |
— | ||
|
12
|
12
02112-06167-000 SCREWScrew 6x16; |
02112-06167-000 |
from US $0.18 |
||
|
13
|
13
57341-40600-000
Cover brake lev
|
57341-40600-000 |
— | ||
|
14
|
14
58273-31000-000
BOOT,CLUTCH CABLE
Clutch cable boot; |
58273-31000-000 |
— | ||
| replacement | |||||
|
14
|
14
58273-31001-000 Boot,clutch CableClutch cable boot; |
58273-31001-000 |
from US $1.98 |
||
