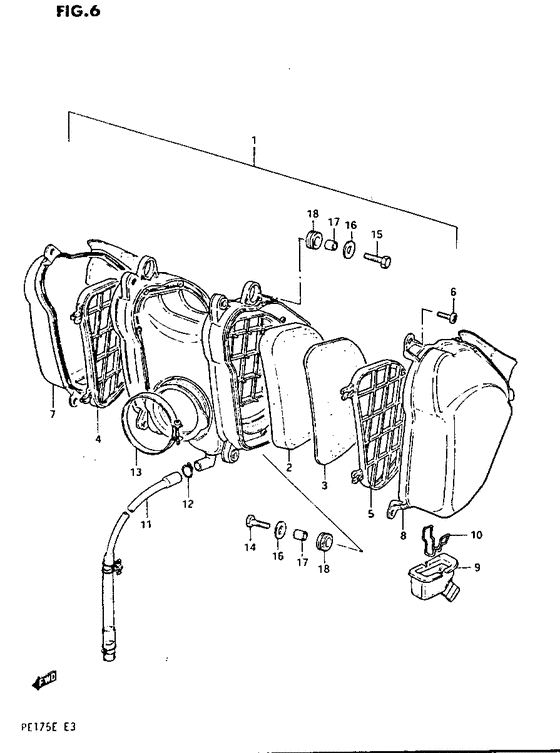

Air cleaner Diagram Suzuki PE175
- Year
- 1984
- Model code
- PE175E E
- Engine Capacity
- 175
- Model
- PE175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-14400-000
Cleaner assy,ai
|
13700-14400-000 |
— | ||
|
2
|
2
13781-14200-000 FILTERFilter,air cleaner Filter,air cleaner; |
13781-14200-000 |
from US $10.49 |
||
|
3
|
3
13786-14210-000
FILTER,2ND
|
13786-14210-000 |
— | ||
|
4
|
4
13791-14210-000
Holder air cleanr rh
|
13791-14210-000 |
— | ||
|
5
|
5
13792-14210-000
Holder air cleanr lh
|
13792-14210-000 |
— | ||
|
6
|
6
02142-05167-000 SCREWScrew, air intk guide no.2 Screw 5x16 cross; |
02142-05167-000 |
from US $0.76 |
||
|
7
|
7
13740-14400-000
Cap air cleaner
|
13740-14400-000 |
— | ||
|
8
|
8
13750-14400-000
Cap air cleaner lh
|
13750-14400-000 |
— | ||
|
9
|
9
13871-14400-000
Drain,air clean
|
13871-14400-000 |
— | ||
|
10
|
10
13877-14110-000
Drain stopper
|
13877-14110-000 |
— | ||
|
11
|
11
13870-00190-000
Hose drain
|
13870-00190-000 |
— | ||
|
12
|
12
09401-14301-000 CLIPClip |
09401-14301-000 |
from US $2.13 |
||
|
13
|
13
09402-64208-000
Clamp
|
09402-64208-000 |
— | ||
| replacement | |||||
|
13
|
13
09402-64203-000 CLAMPClamp (carburetor side) |
09402-64203-000 |
from US $2.58 |
||
|
14
|
14
01500-06207-000 Bolt |
01500-06207-000 |
from US $0.76 |
||
|
15
|
15
01500-06167-000 BoltBolt, fuel cooler |
01500-06167-000 |
from US $0.72 |
||
|
16
|
16
09160-06066-000 WASHER(6.5X20X1.6)Washer, throttle lever (6.5x20x1.6) |
09160-06066-000 |
from US $1.12 |
||
|
17
|
17
09180-07005-000
Spacer
|
09180-07005-000 |
— | ||
| replacement | |||||
|
17
|
17
09180-06259-000 SPACER(6.5X9X7) |
09180-06259-000 |
from US $3.91 |
||
|
18
|
18
09320-08021-000
CUSHION
Cushion fuel tank; |
09320-08021-000 |
— | ||
| replacement | |||||
|
18
|
18
09320-08510-000 Cushion(8.5X20X8)Cushion fuel tank; |
09320-08510-000 |
from US $1.82 |
||
