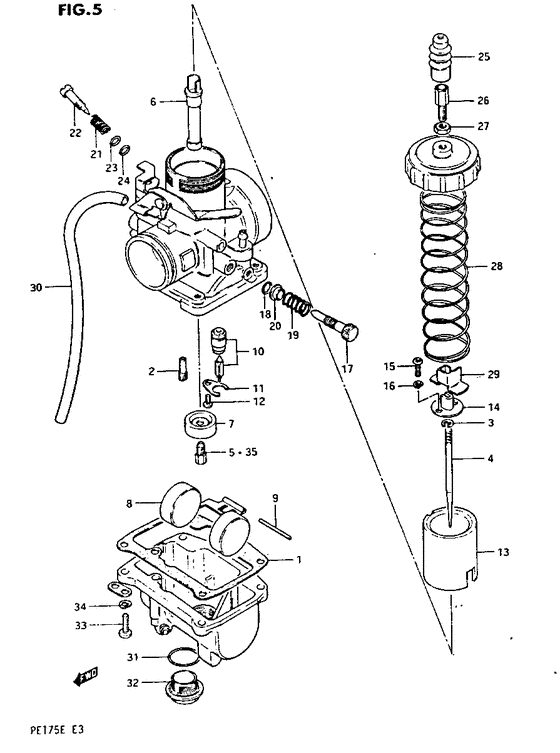

Carburetor Diagram Suzuki PE175
- Year
- 1984
- Model code
- PE175E E
- Engine Capacity
- 175
- Model
- PE175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13200-14400-000
Carburetor assy
|
13200-14400-000 |
— | ||
|
1
|
1
13251-40230-000
GASKET,FLOAT CAHMBER
|
13251-40230-000 |
— | ||
|
2
|
2
09492-25005-000 JET,PILOT(25)Jet pilot (25); |
09492-25005-000 |
from US $5.59 |
||
|
3
|
3
13394-10010-000 CLIPClip, needle Needle clip; |
13394-10010-000 |
from US $1.98 |
||
|
4
|
4
13383-41510-000 NEEDLE,JETNeedle,jet (6dp17-3) Needle,jet (6dp17-3); |
13383-41510-000 |
from US $12.70 |
||
|
5
|
5
09491-50008-000
JET,MAIN(250)
Jet,main #250; |
09491-50008-000 |
— | ||
|
6
|
6
09494-00317-000
Jet needle
Jet needle (r-3); |
09494-00317-000 |
— | ||
|
7
|
7
13331-40200-000
Ring
|
13331-40200-000 |
— | ||
|
8
|
8
13252-32010-000
FLOAT
|
13252-32010-000 |
— | ||
|
9
|
9
13254-01010-000 PIN,FLOAT |
13254-01010-000 |
from US $1.35 |
||
|
10
|
10
13370-40600-000
VALVE ASSY,NEEDLE
Valve,needle; |
13370-40600-000 |
— | ||
|
11
|
11
13373-39110-000 PLATEPlate,needle valve; |
13373-39110-000 |
from US $2.52 |
||
|
12
|
12
02112-04068-000
Screw
|
02112-04068-000 |
— | ||
| replacement | |||||
|
12
|
12
02112-0406B-000 SCREW |
02112-0406B-000 |
from US $0.76 |
||
|
13
|
13
13551-41520-000
Valve throttle
|
13551-41520-000 |
— | ||
|
14
|
14
13581-40200-000
CONNECTOR
Holder jet needle; |
13581-40200-000 |
— | ||
|
15
|
15
02112-03087-000
L.lock washer
Screw 3x8; |
02112-03087-000 |
— | ||
| replacement | |||||
|
15
|
15
02112-0308A-000 SCREWScrew 3x8; |
02112-0308A-000 |
from US $0.96 |
||
|
16
|
16
09162-03001-000 WASHER,LOCKLock washer |
09162-03001-000 |
from US $1.85 |
||
|
17
|
17
13267-41640-000 SCREW,THROTTLE STOPThrottle stop screw Throttle stop screw; |
13267-41640-000 |
from US $9.90 |
||
|
18
|
18
13278-02340-000 O RINGO ring Ring carburetor; |
13278-02340-000 |
from US $1.52 |
||
|
19
|
19
13268-31011-000 SPRING,THROTTLE STOPThrottle stop spring Throttle stop spring; |
13268-31011-000 |
US $5.58 |
||
|
20
|
20
13291-34010-000
COVER
Thro stp screw cover; |
13291-34010-000 |
— | ||
|
21
|
21
13271-96110-000 SPRINGSpring, air screw |
13271-96110-000 |
from US $1.62 |
||
|
22
|
22
13269-41640-000 SCREW,PILOT AIR |
13269-41640-000 |
from US $6.96 |
||
|
23
|
23
13291-41640-000
Washer
|
13291-41640-000 |
— | ||
| replacement | |||||
|
23
|
23
13606-18E00-000 WASHERLock washer |
13606-18E00-000 |
from US $2.39 |
||
|
24
|
24
13278-45010-000 O RINGO-ring |
13278-45010-000 |
from US $2.07 |
||
|
25
|
25
13681-41510-000 CAP,CABLE ADJUSTERCap, rubber Cap; |
13681-41510-000 |
from US $13.41 |
||
|
26
|
26
13577-41612-000 ADJUSTER,CABLEThrottle cable a jst; |
13577-41612-000 |
from US $5.52 |
||
|
27
|
27
13661-16600-000 NUTNut, adjuster |
13661-16600-000 |
from US $2.94 |
||
|
28
|
28
13573-41610-000
SPRING,THROTTLE VALVE RETURN
Valve return spring; |
13573-41610-000 |
— | ||
|
29
|
29
13629-40200-000
Cover holder
Cover holder; |
13629-40200-000 |
— | ||
|
30
|
30
13683-45070-000
Hose, over flow (l:400)
|
13683-45070-000 |
— | ||
| replacements | |||||
|
30
|
30
09355-35755-600
HOSE(3.5X7.5X600)
|
09355-35755-600 |
— | ||
|
30
|
30
09354-35753-600
Hose (3.5x7.5x600)
|
09354-35753-600 |
— | ||
|
30
|
30
09355-35007-600 Hose(3.5X7.5X600) |
09355-35007-600 |
from US $6.08 |
||
|
31
|
31
09280-20003-000 O RING(D:1.5,ID:19.5)O ring, oil pump |
09280-20003-000 |
from US $1.92 |
||
|
32
|
32
13247-40200-000
Plug drain
Plug drain; |
13247-40200-000 |
— | ||
|
33
|
33
02112-05168-000
Screw
|
02112-05168-000 |
— | ||
| replacement | |||||
|
33
|
33
02112-05167-000 SCREW |
02112-05167-000 |
from US $0.76 |
||
|
34
|
34
08321-21057-000 Washer lockLock washer Washer lock; |
08321-21057-000 |
US $2.59 |
||
| replacement | |||||
|
34
|
34
08321-0105A-000 WASHER,LOCKWasher lock; |
08321-0105A-000 |
from US $0.76 |
||
|
35
|
35
09491-46001-000 JET,MAIN(230)Jet, main (230) Jet,main #230; Opt |
09491-46001-000 |
from US $6.15 |
||
|
35
|
35
09491-48003-000
JET,MAIN(240)
Jet,main #240; Opt |
09491-48003-000 |
— | ||
|
35
|
35
09491-52001-000
Jet, main (260)
Opt |
09491-52001-000 |
— | ||
| replacement | |||||
|
35
|
35
09491-52006-000 JET,MAIN(260)Opt |
09491-52006-000 |
from US $6.55 |
||
|
35
|
35
09491-54002-000
JET,MAIN(270)
Opt |
09491-54002-000 |
— | ||
|
35
|
35
09491-56001-000
Jet main 280
Opt |
09491-56001-000 |
— | ||
| replacement | |||||
|
35
|
35
09491-56003-000
JET,MAIN(280)
Opt |
09491-56003-000 |
— | ||
