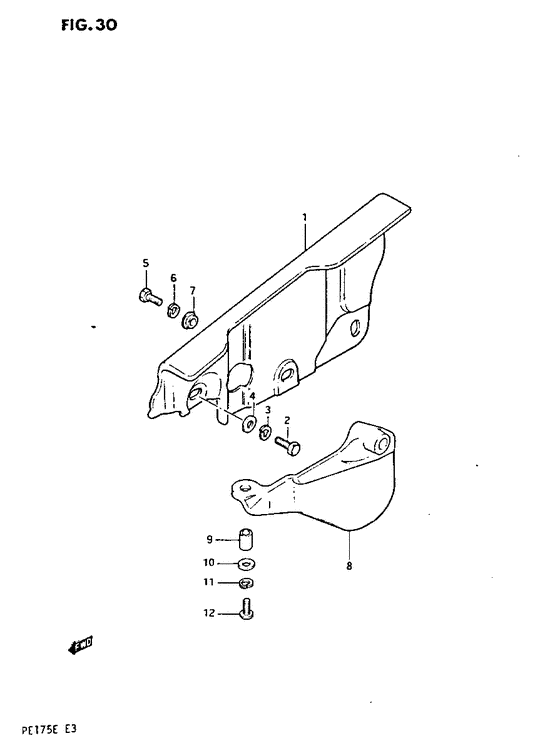

Chain case Diagram Suzuki PE175
- Year
- 1984
- Model code
- PE175E E
- Engine Capacity
- 175
- Model
- PE175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61311-40504-000
Chain case
|
61311-40504-000 |
— | ||
|
2
|
2
01500-06167-000 BoltBolt, fuel cooler |
01500-06167-000 |
from US $0.72 |
||
|
3
|
3
08321-01067-000 WASHER,LOCKWasher, lock; |
08321-01067-000 |
from US $0.65 |
||
|
4
|
4
09160-06028-000 WASHER(6.5X18X1)Washer |
09160-06028-000 |
from US $0.25 |
||
|
5
|
5
01500-06127-000 Bolt |
01500-06127-000 |
from US $0.76 |
||
|
6
|
6
08321-01067-000 WASHER,LOCKWasher, lock; |
08321-01067-000 |
from US $0.65 |
||
|
7
|
7
09169-06010-000 WASHERWasher, inner |
09169-06010-000 |
from US $2.24 |
||
|
8
|
8
61321-40501-000
Rubber chain ca
|
61321-40501-000 |
— | ||
|
9
|
9
09180-06032-000
Spacer (6.1x8x5.2)
|
09180-06032-000 |
— | ||
| replacement | |||||
|
9
|
9
09180-06246-000 SPACER(6.1X8X5.2) |
09180-06246-000 |
from US $1.60 |
||
|
10
|
10
09160-06028-000 WASHER(6.5X18X1)Washer |
09160-06028-000 |
from US $0.25 |
||
|
11
|
11
08321-01067-000 WASHER,LOCKWasher, lock; |
08321-01067-000 |
from US $0.65 |
||
|
12
|
12
02112-06128-000
Screw
|
02112-06128-000 |
— | ||
| replacement | |||||
|
12
|
12
02112-06127-000 SCREW |
02112-06127-000 |
from US $0.76 |
||
