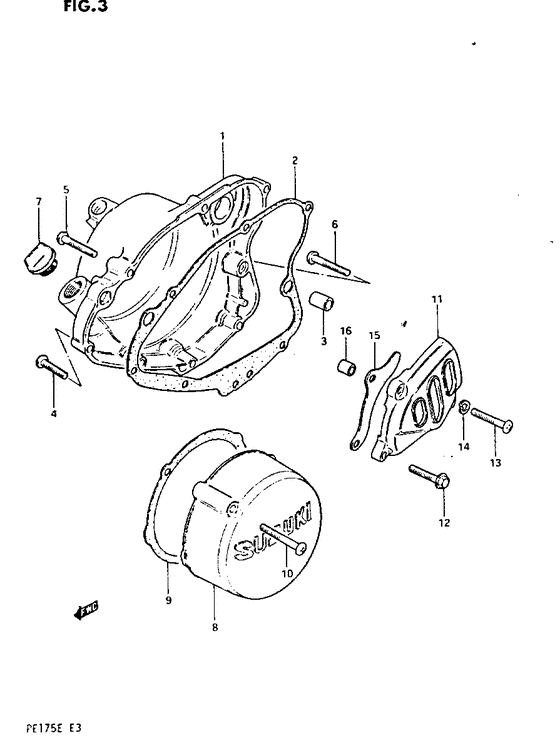

Crankcase cover Diagram Suzuki PE175
- Year
- 1984
- Model code
- PE175E E
- Engine Capacity
- 175
- Model
- PE175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11341-40201-000
Cover clutch
|
11341-40201-000 |
— | ||
|
2
|
2
11482-40200-H17 GASKET,CLUTCH COVERGasket,cl cover(na) Gasket,cl cover(na); |
11482-40200-H17 |
from US $12.36 |
||
|
3
|
3
09206-13001-000
Pin
|
09206-13001-000 |
— | ||
| replacement | |||||
|
3
|
3
04211-13189-000 PIN |
04211-13189-000 |
from US $1.22 |
||
|
4
|
4
02112-06305-000
Screw 6x30
|
02112-06305-000 |
— | ||
| replacements | |||||
|
4
|
4
02112-0630B-000 SCREW |
02112-0630B-000 |
US $0.76 |
||
|
4
|
4
02112-0630A-000 SCREW |
02112-0630A-000 |
from US $0.80 |
||
|
5
|
5
02112-06404-000
Screw
Screw 6x40; |
02112-06404-000 |
— | ||
| replacements | |||||
|
5
|
5
02112-0640B-000 SCREWScrew 6x40; |
02112-0640B-000 |
US $0.80 |
||
|
5
|
5
02112-0640A-000 SCREWScrew 6x40; |
02112-0640A-000 |
from US $0.80 |
||
|
6
|
6
02112-06455-000
Screw
|
02112-06455-000 |
— | ||
| replacement | |||||
|
6
|
6
02112-0645B-000 SCREW |
02112-0645B-000 |
from US $0.96 |
||
|
7
|
7
09200-20810-000
PLUG SET
Plug set; |
09200-20810-000 |
— | ||
| replacement | |||||
|
7
|
7
09200-20811-000 Plug SetPlug set; |
09200-20811-000 |
from US $2.24 |
||
|
8
|
8
11351-41403-000
Cover magneto
|
11351-41403-000 |
— | ||
|
9
|
9
11483-41111-000
GASKET,MAGNETO COVER
|
11483-41111-000 |
— | ||
|
10
|
10
02112-06555-000
Screw 6x55
|
02112-06555-000 |
— | ||
| replacement | |||||
|
10
|
10
02112-0655B-000 SCREW |
02112-0655B-000 |
from US $1.53 |
||
|
11
|
11
11360-40200-000
COVER,ENGINE SPROCKET
|
11360-40200-000 |
— | ||
|
12
|
12
01517-06354-000
Bolt
|
01517-06354-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0635B-000 Bolt |
01550-0635B-000 |
from US $0.91 |
||
|
12
|
12
01550-0635A-000 Bolt |
01550-0635A-000 |
from US $0.96 |
||
|
13
|
13
02112-06455-000
Screw
|
02112-06455-000 |
— | ||
| replacement | |||||
|
13
|
13
02112-0645B-000 SCREW |
02112-0645B-000 |
from US $0.96 |
||
|
14
|
14
08321-21064-000
Lock washer
|
08321-21064-000 |
— | ||
| replacement | |||||
|
14
|
14
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
15
|
15
27641-40221-000
Plate chain gui
|
27641-40221-000 |
— | ||
|
16
|
16
09180-07004-000 SPACER(6.5X10.5X12)Spacer, control lever |
09180-07004-000 |
from US $3.35 |
||
