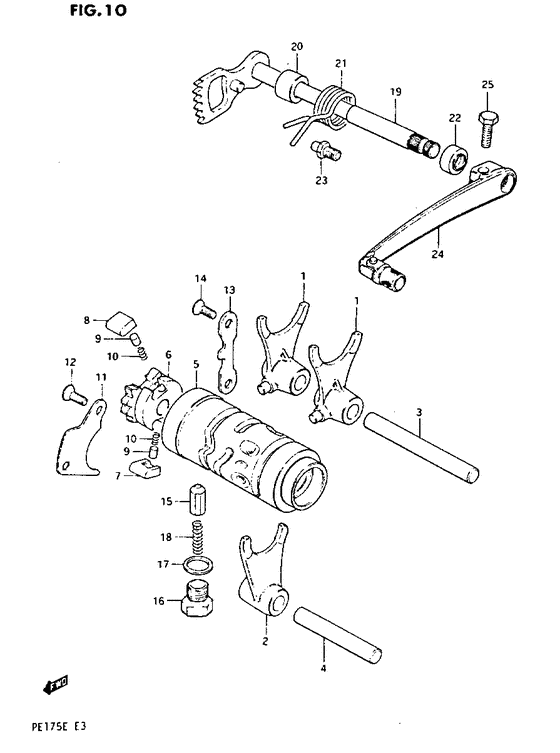

Gear shifting Diagram Suzuki PE175
- Year
- 1984
- Model code
- PE175E E
- Engine Capacity
- 175
- Model
- PE175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25211-41301-000 FORK,GEAR SHIFT NO.1Fork, gear shifting (1) Fork,gear shift no.1; |
25211-41301-000 |
from US $46.37 |
||
|
2
|
2
25221-41X00-000 FORK,GEAR SHIFT NO.2Gear shift fork 2 Gear shift fork 2; |
25221-41X00-000 |
from US $46.37 |
||
|
3
|
3
25411-14100-000
Shaft, fork (1)
|
25411-14100-000 |
— | ||
| replacement | |||||
|
3
|
3
25411-48001-000 SHAFT,GEAR SHIFT FORK |
25411-48001-000 |
from US $11.92 |
||
|
4
|
4
25421-35402-000
Shaft, sub transmission
|
25421-35402-000 |
— | ||
| replacements | |||||
|
4
|
4
25421-35410-000 SHAFT,GEAR SHIFT FORK NO.2Shaft, sub transmission |
25421-35410-000 |
from US $12.14 |
||
|
4
|
4
25421-35403-000 SHAFT,GEAR SHIFT FORKShaft, no.1 |
25421-35403-000 |
from US $9.66 |
||
|
5
|
5
25310-14100-000
Cam comp gear s
Cam comp gear shift; |
25310-14100-000 |
— | ||
|
6
|
6
25322-31301-000
Gear, cam driven
|
25322-31301-000 |
— | ||
| replacement | |||||
|
6
|
6
25322-31310-000 GEAR,GEAR SHIFT CAM DRIVEN |
25322-31310-000 |
from US $15.96 |
||
|
7
|
7
25323-34201-000 PAWL,GEAR SHIFT NO.1Pawl, no.1 Pole gear shift no.1; |
25323-34201-000 |
from US $6.23 |
||
|
8
|
8
25324-34201-000 PAWL,GEAR SHIFT NO.2Pawl, no.2 Pole gear shift no.2; |
25324-34201-000 |
from US $6.23 |
||
|
9
|
9
09261-05003-000 PIN(5X8)Pin Shifting paul roller; |
09261-05003-000 |
from US $1.22 |
||
|
10
|
10
09440-04003-000 SPRING |
09440-04003-000 |
from US $1.06 |
||
|
11
|
11
25331-11001-000 LIFTER,GEAR SHIFT PAWLLifter, pawl |
25331-11001-000 |
from US $3.31 |
||
|
12
|
12
02122-06128-000
Screw
|
02122-06128-000 |
— | ||
| replacement | |||||
|
12
|
12
02122-06127-000 SCREW |
02122-06127-000 |
from US $0.63 |
||
|
13
|
13
25341-40001-000 STOPPER,GEAR SHIFT POLEGuide, cam |
25341-40001-000 |
from US $5.74 |
||
|
14
|
14
02122-06128-000
Screw
|
02122-06128-000 |
— | ||
| replacement | |||||
|
14
|
14
02122-06127-000 SCREW |
02122-06127-000 |
from US $0.63 |
||
|
15
|
15
25351-11000-000
Stopper, cam
|
25351-11000-000 |
— | ||
| replacement | |||||
|
15
|
15
25351-11010-000 STOPPER,REVERSE CAM |
25351-11010-000 |
from US $6.72 |
||
|
16
|
16
25352-11010-000 HOUSING,GEAR SHIFT CAM STOPPERHolder, stopper Housing cam stopper; |
25352-11010-000 |
from US $8.16 |
||
|
17
|
17
09168-14004-000 GASKET(14X19.2X2)Gasket (14.1x18x1.5) Gasket; |
09168-14004-000 |
from US $1.22 |
||
|
18
|
18
09440-05007-000 SPRINGSpring |
09440-05007-000 |
from US $1.22 |
||
|
19
|
19
25510-40500-000
Shaft gear shift
|
25510-40500-000 |
— | ||
| replacement | |||||
|
19
|
19
25510-405V0-000
Shaft,gear shift
|
25510-405V0-000 |
— | ||
|
20
|
20
09180-12083-000 SPACER(12X20X15.3)Spacer (12x20x15.3) Spacer; |
09180-12083-000 |
from US $1.68 |
||
|
21
|
21
09444-26013-000 SPRINGSpring |
09444-26013-000 |
from US $1.68 |
||
|
22
|
22
09285-12002-000
Shift shaft oil
Shift shaft oil seal; |
09285-12002-000 |
— | ||
| replacement | |||||
|
22
|
22
09285-12006-000 SEAL,OIL(12X22X9)Oil seal (12x22x9) Shift shaft oil seal; |
09285-12006-000 |
from US $2.58 |
||
|
23
|
23
25671-01000-000
Change arm stop
|
25671-01000-000 |
— | ||
| replacement | |||||
|
23
|
23
25671-01011-000 STOPPER,GEAR SHIFT ARM |
25671-01011-000 |
from US $1.92 |
||
|
24
|
24
25600-40304-000
LEVER,GEAR SHIFT
|
25600-40304-000 |
— | ||
|
25
|
25
01500-06207-000 Bolt |
01500-06207-000 |
from US $0.76 |
||
