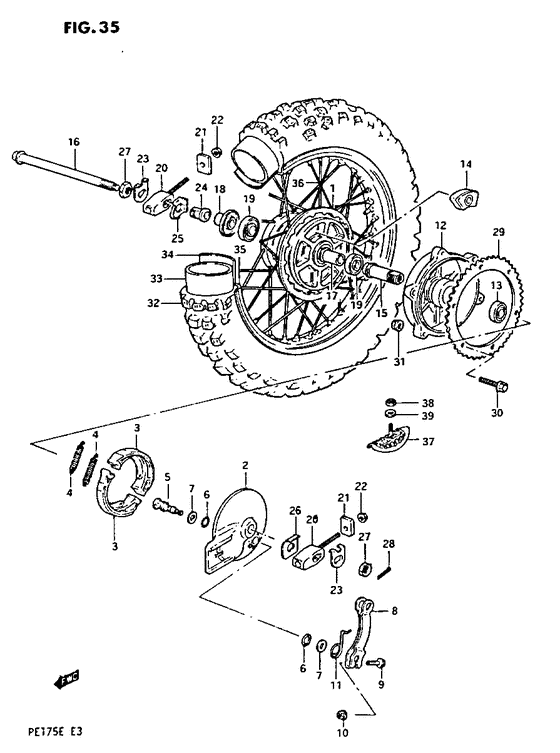

Rear wheel Diagram Suzuki PE175
- Year
- 1984
- Model code
- PE175E E
- Engine Capacity
- 175
- Model
- PE175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64110-14400-000
Hub rr wheel
|
64110-14400-000 |
— | ||
|
2
|
2
64210-14400-000
Panel rr hub
|
64210-14400-000 |
— | ||
|
3
|
3
54410-40500-000
Shoe,brake
|
54410-40500-000 |
— | ||
| replacement | |||||
|
3
|
3
54400-40840-000
SHOE SET,BRAKE
|
54400-40840-000 |
— | ||
|
4
|
4
09443-07025-000 SPRING(L:35.8) |
09443-07025-000 |
from US $1.52 |
||
|
5
|
5
64441-40501-000
Cam,rear brake
|
64441-40501-000 |
— | ||
|
6
|
6
09280-14003-000 O ring |
09280-14003-000 |
from US $2.66 |
||
| replacement | |||||
|
6
|
6
09280-14011-000 O RING(D:2.5,ID:13.8)O ring (d:2.5 id:13.8) |
09280-14011-000 |
from US $2.13 |
||
|
7
|
7
09160-14001-000 Washer |
09160-14001-000 |
US $2.28 |
||
| replacement | |||||
|
7
|
7
09160-14055-000 WASHER(14.5X22X1.6) |
09160-14055-000 |
from US $3.77 |
||
|
8
|
8
64451-40601-000
Lever rr brake
|
64451-40601-000 |
— | ||
|
9
|
9
01517-06307-000
Bolt
|
01517-06307-000 |
— | ||
| replacement | |||||
|
9
|
9
01550-06307-000 Bolt |
01550-06307-000 |
from US $0.91 |
||
|
10
|
10
09159-06017-000
Adjust nut
|
09159-06017-000 |
— | ||
| replacement | |||||
|
10
|
10
08319-31067-000 NUTNut, center |
08319-31067-000 |
from US $1.60 |
||
|
11
|
11
09448-31018-000
Spring rr brk l
|
09448-31018-000 |
— | ||
|
12
|
12
64309-40500-000
Drum rr brake
|
64309-40500-000 |
— | ||
|
13
|
13
09262-22015-000
Bearing (22x50x14)
|
09262-22015-000 |
— | ||
| replacements | |||||
|
13
|
13
09262-22027-000
BEARING(22X50X14)
|
09262-22027-000 |
— | ||
|
13
|
13
09262-22047-000 Bearing(22X50X14) |
09262-22047-000 |
from US $52 |
||
|
14
|
14
64650-40600-000 ABSORBER,RR HUB SHOCKShock absorber r hub Shock absorber r hub; |
64650-40600-000 |
US $66.61 |
||
|
15
|
15
64761-14400-000
Shaft rr brake
|
64761-14400-000 |
— | ||
|
16
|
16
64711-14400-000
Axle rr
|
64711-14400-000 |
— | ||
|
17
|
17
64730-40500-000
Spacer rr hub b
|
64730-40500-000 |
— | ||
|
18
|
18
64740-14400-000
Spacer rr axle
|
64740-14400-000 |
— | ||
|
19
|
19
08123-63027-000 BEARING |
08123-63027-000 |
US $25.88 |
||
| replacement | |||||
|
19
|
19
08123-6302B-000 Bearing,front Hub |
08123-6302B-000 |
from US $11.52 |
||
|
20
|
20
61410-14121-000
Adjuster chain
|
61410-14121-000 |
— | ||
|
21
|
21
61421-14210-000
PLATE,CHAIN ADJUSTER GUIDE,R
Plate chain adjuster; |
61421-14210-000 |
— | ||
|
22
|
22
08319-31087-000 NUT |
08319-31087-000 |
from US $1.67 |
||
|
23
|
23
64712-14301-000
WASHER,CHAIN ADJUSTER GUIDE
Washer chain adj; |
64712-14301-000 |
— | ||
|
24
|
24
64781-14201-000
Spacer chain ad
Spacer chain adjust rh; |
64781-14201-000 |
— | ||
|
25
|
25
64782-14200-000
Washer ch adj g
|
64782-14200-000 |
— | ||
|
26
|
26
64792-14400-000
Plate ch adjuster lh
|
64792-14400-000 |
— | ||
|
27
|
27
09140-22003-000
NUT
|
09140-22003-000 |
— | ||
|
28
|
28
04111-30208-000
Cotter pin
|
04111-30208-000 |
— | ||
| replacement | |||||
|
28
|
28
04111-3020A-000 PIN |
04111-3020A-000 |
from US $0.74 |
||
|
29
|
29
64511-40510-000
Sprocket rr
Nt:48 |
64511-40510-000 |
— | ||
|
29
|
29
64511-40500-000
Sprocket rr 46t
Nt:46,opt |
64511-40500-000 |
— | ||
|
29
|
29
64511-40520-000
Sprocket rr 50t
Nt:50,opt |
64511-40520-000 |
— | ||
|
30
|
30
09103-08048-000 BOLT(8X30)Bolt (8x30) Bolt rr sprocket; |
09103-08048-000 |
from US $7.09 |
||
|
31
|
31
08319-31087-000 NUT |
08319-31087-000 |
from US $1.67 |
||
|
32
|
32
65100-14110-000
Tire (4.10-18)
Irc |
65100-14110-000 |
— | ||
|
32
|
32
65100-14220-000
Tire (4.10-18)
Bs |
65100-14220-000 |
— | ||
|
33
|
33
65200-41330-000
Tube rear
|
65200-41330-000 |
— | ||
| replacement | |||||
|
33
|
33
65200-42AA1-000 TUBE ASSY,WHEEL INNER |
65200-42AA1-000 |
from US $31.83 |
||
|
34
|
34
65261-33030-000 PROTECTOR,INNER TUBEProtector, inner tube |
65261-33030-000 |
from US $3.42 |
||
|
35
|
35
65311-14410-000
Rim wheel
Rim wheel (18x18); |
65311-14410-000 |
— | ||
|
36
|
36
65320-14400-000
Spoke set rr
|
65320-14400-000 |
— | ||
|
37
|
37
65270-46910-000
Stopper,bead
|
65270-46910-000 |
— | ||
| replacement | |||||
|
37
|
37
65270-43D00-000 STOPPER,BEAD(1.85)Stopper, bead |
65270-43D00-000 |
from US $25.08 |
||
|
38
|
38
08310-12088-000
Nut
|
08310-12088-000 |
— | ||
| replacement | |||||
|
38
|
38
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
|
39
|
39
08322-11088-000
Washer
|
08322-11088-000 |
— | ||
| replacement | |||||
|
39
|
39
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
