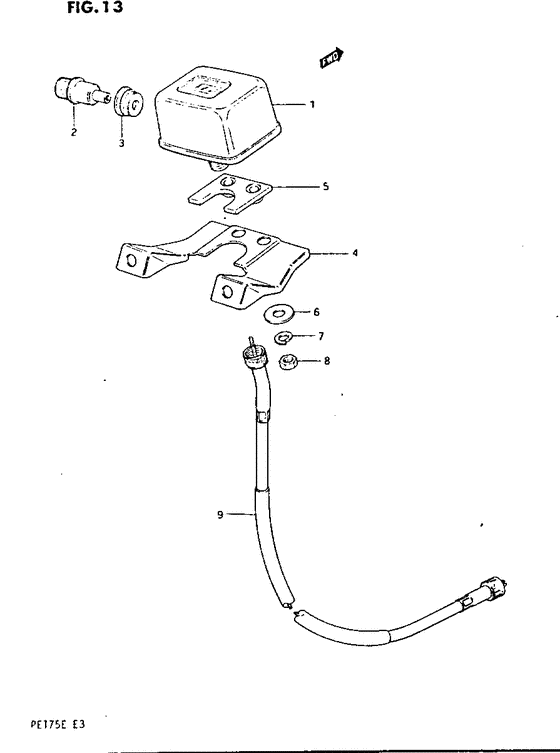

Trip meter Diagram Suzuki PE175
- Year
- 1984
- Model code
- PE175E E
- Engine Capacity
- 175
- Model
- PE175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34721-40610-000
Trip meter (mile)
|
34721-40610-000 |
— | ||
| replacement | |||||
|
1
|
1
34721-05D20-000 TRIP METERTrip meter assy (mile) |
34721-05D20-000 |
from US $108.56 |
||
|
2
|
2
34124-40610-000
Knob,trip
Knob,trip; |
34124-40610-000 |
— | ||
|
3
|
3
34126-41410-000
Trip knob shaft
Trip knob shaft cvr; |
34126-41410-000 |
— | ||
|
4
|
4
34725-40610-000
Bracket trip me
|
34725-40610-000 |
— | ||
|
5
|
5
34726-41410-000 CUSHION,TRIPMETERCushion Trip meter cushion; |
34726-41410-000 |
from US $2.50 |
||
|
6
|
6
34727-41410-000
Washer
|
34727-41410-000 |
— | ||
| replacements | |||||
|
6
|
6
09160-04022-000 WASHER(4.3X14X0.8) |
09160-04022-000 |
from US $1.12 |
||
|
6
|
6
09160-04017-000 Washer (4.3x13x0.8) |
09160-04017-000 |
US $1.65 |
||
|
7
|
7
08321-21047-000
Lock washer
|
08321-21047-000 |
— | ||
| replacement | |||||
|
7
|
7
08321-0104A-000 WASHER,LOCK |
08321-0104A-000 |
from US $0.96 |
||
|
8
|
8
08310-11047-000 Nut |
08310-11047-000 |
US $1.75 |
||
| replacement | |||||
|
8
|
8
08310-00047-000 NUT |
08310-00047-000 |
from US $0.68 |
||
|
9
|
9
34910-40X01-000
Cable,speedometer
|
34910-40X01-000 |
— | ||
| replacements | |||||
|
9
|
9
34910-17B01-000
CABLE ASSY,SPEEDOMETER
|
34910-17B01-000 |
— | ||
|
9
|
9
34910-17B02-000 Cable Assy,speedometer |
34910-17B02-000 |
from US $51.04 |
||
