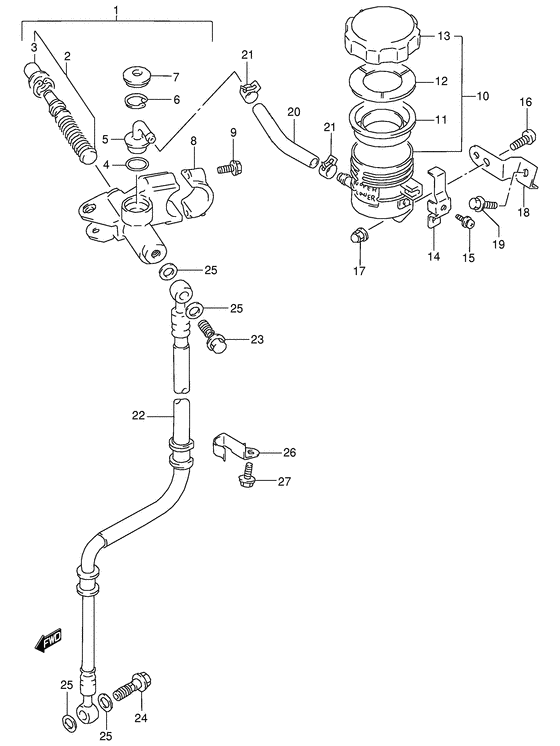

Front Master Cylinder Diagram Suzuki RG125
- Year
- 1993
- Model code
- RG125FP(E18) P
- Engine Capacity
- 125
- Model
- RG125F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59600-19D00-000
CYLINDER ASSY,FR MASTER
|
59600-19D00-000 |
— | ||
|
2
|
2
59600-04810-000 PISTON/CUP SET |
59600-04810-000 |
from US $32.68 |
||
|
3
|
3
59666-44300-000 BOOT |
59666-44300-000 |
from US $1.82 |
||
|
4
|
4
69686-34200-000 O RING |
69686-34200-000 |
from US $1.76 |
||
|
5
|
5
59672-17C00-000 CONNECTOR |
59672-17C00-000 |
from US $7.20 |
||
|
6
|
6
69674-00B20-000 CIRCLIP |
69674-00B20-000 |
from US $1.52 |
||
|
7
|
7
59673-17C00-000 COVER,DUSTCover, dust; |
59673-17C00-000 |
from US $6.23 |
||
|
8
|
8
59671-36500-000 HOLDER |
59671-36500-000 |
from US $8.62 |
||
|
9
|
9
59675-19C00-000 BOLT(6X25) |
59675-19C00-000 |
from US $1.68 |
||
|
10
|
10
59740-07D00-000 Tank Assy,reservoirTank assy, reservoir; |
59740-07D00-000 |
from US $60.23 |
||
|
11
|
11
59667-18441-000 DIAPHRAGMDiaphragm; |
59667-18441-000 |
from US $6.23 |
||
|
12
|
12
59668-18441-000 PLATE,DIAPHRAGMPlate, diaphragm; |
59668-18441-000 |
from US $2.46 |
||
|
13
|
13
59669-07D00-000 CAPCap |
59669-07D00-000 |
from US $13.83 |
||
|
14
|
14
59743-17C00-000 PLATE,RESERVOIR TANK CAPPlate, reservoir tan cap; |
59743-17C00-000 |
from US $5.32 |
||
|
15
|
15
02112-74128-000
Screw
Model n/p |
02112-74128-000 |
— | ||
| replacement | |||||
|
15
|
15
02112-7412A-000 SCREWModel n/p |
02112-7412A-000 |
from US $0.96 |
||
|
15
|
15
02112-74123-000
Screw
Model r |
02112-74123-000 |
— | ||
| replacement | |||||
|
15
|
15
02112-7412A-000 SCREWModel r |
02112-7412A-000 |
from US $0.96 |
||
|
16
|
16
02142-06125-000
Screw
Model n/p |
02142-06125-000 |
— | ||
| replacements | |||||
|
16
|
16
02142-0612B-000 SCREWModel n/p |
02142-0612B-000 |
from US $0.76 |
||
|
16
|
16
02142-0612A-000 SCREWModel n/p |
02142-0612A-000 |
from US $0.80 |
||
|
16
|
16
02142-06123-000
Screw
Screw; Model r |
02142-06123-000 |
— | ||
| replacements | |||||
|
16
|
16
02142-0612B-000 SCREWScrew; Model r |
02142-0612B-000 |
from US $0.76 |
||
|
16
|
16
02142-0612A-000 SCREWScrew; Model r |
02142-0612A-000 |
from US $0.80 |
||
|
17
|
17
08313-21064-000
Nut 6mm
Model n/p |
08313-21064-000 |
— | ||
| replacements | |||||
|
17
|
17
08313-2006B-000 NUTModel n/p |
08313-2006B-000 |
from US $0.76 |
||
|
17
|
17
08313-2006A-000 NUTModel n/p |
08313-2006A-000 |
from US $1.24 |
||
|
17
|
17
08313-20063-000
Nut
Model r |
08313-20063-000 |
— | ||
| replacements | |||||
|
17
|
17
08313-2006B-000 NUTModel r |
08313-2006B-000 |
from US $0.76 |
||
|
17
|
17
08313-2006A-000 NUTModel r |
08313-2006A-000 |
from US $1.24 |
||
|
18
|
18
59751-22D00-000 BRACKET,FR RESERVOIR TANKBracket, reservoir tank |
59751-22D00-000 |
US $4.67 |
||
|
19
|
19
01517-06125-000
Bolt
Model n/p |
01517-06125-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0612B-000 BoltBolt, clamp Model n/p |
01550-0612B-000 |
from US $0.76 |
||
|
19
|
19
01550-0612A-000 BoltModel n/p |
01550-0612A-000 |
from US $0.76 |
||
|
19
|
19
01550-06123-000
Bolt
Model r |
01550-06123-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0612B-000 BoltBolt, clamp Model r |
01550-0612B-000 |
from US $0.76 |
||
|
19
|
19
01550-0612A-000 BoltModel r |
01550-0612A-000 |
from US $0.76 |
||
|
20
|
20
59731-19D00-000
HOSE,FR RESERVOIR TANK
|
59731-19D00-000 |
— | ||
|
21
|
21
59735-17C00-000 CLAMP,RESERVOIR TANK FRClamp, reservoir tank front; |
59735-17C00-000 |
from US $2.13 |
||
|
22
|
22
59480-19D00-000
Hose, front brake
|
59480-19D00-000 |
— | ||
|
23
|
23
09360-10033-000
Bolt, lower (10x1.25x24)
Model n/p |
09360-10033-000 |
— | ||
| replacement | |||||
|
23
|
23
09360-10062-000 UNIONBolt, upper Model n/p |
09360-10062-000 |
from US $4.96 |
||
|
23
|
23
09360-10040-000
Bolt
Bolt, upper (10x1.25x22); Model r |
09360-10040-000 |
— | ||
| replacement | |||||
|
23
|
23
09360-10062-000 UNIONBolt, upper Bolt, upper (10x1.25x22); Model r |
09360-10062-000 |
from US $4.96 |
||
|
24
|
24
09360-10017-000 UNIONBolt (10x1.00x24) Bolt, lower (10x1.00x24); Model n/p |
09360-10017-000 |
from US $1.68 |
||
|
24
|
24
09360-10039-000
Bolt
Bolt, lower (10x1.00x22); Model r |
09360-10039-000 |
— | ||
| replacement | |||||
|
24
|
24
09360-10061-000 Union bolt (10x22)Union bolt (10x22) Bolt, lower (10x1.00x22); Model r |
09360-10061-000 |
from US $6.24 |
||
|
25
|
25
09161-10009-000 WASHER(10X15X1.5)Lock washer Washer; |
09161-10009-000 |
from US $1.06 |
||
|
26
|
26
59266-19D01-000
CLAMP,FR BRAKE HOSE
|
59266-19D01-000 |
— | ||
|
27
|
27
01517-06125-000
Bolt
Model n/p |
01517-06125-000 |
— | ||
| replacements | |||||
|
27
|
27
01550-0612B-000 BoltBolt, clamp Model n/p |
01550-0612B-000 |
from US $0.76 |
||
|
27
|
27
01550-0612A-000 BoltModel n/p |
01550-0612A-000 |
from US $0.76 |
||
|
27
|
27
01550-06123-000
Bolt
Model r |
01550-06123-000 |
— | ||
| replacements | |||||
|
27
|
27
01550-0612B-000 BoltBolt, clamp Model r |
01550-0612B-000 |
from US $0.76 |
||
|
27
|
27
01550-0612A-000 BoltModel r |
01550-0612A-000 |
from US $0.76 |
||
