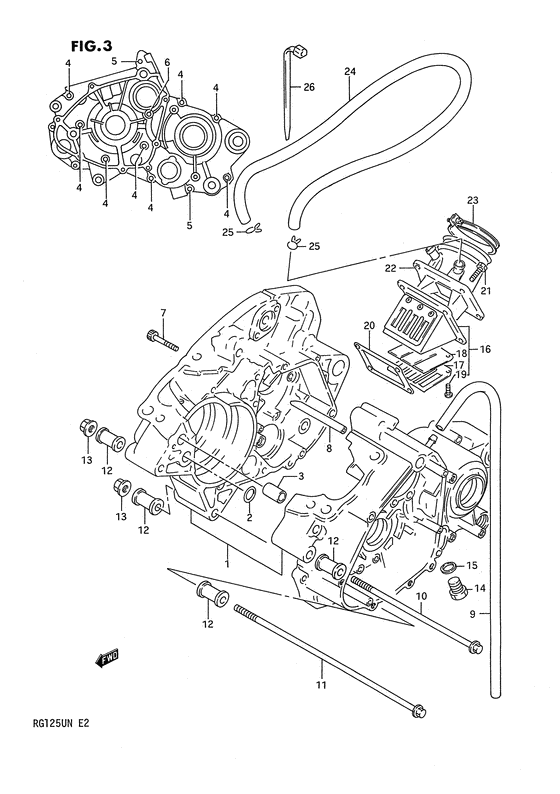

Crankcase Diagram Suzuki RG125
- Year
- 1992
- Model code
- RG125UN(E2) N
- Engine Capacity
- 125
- Model
- RG125F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11301-19810-000
Crankcase set
|
11301-19810-000 |
— | ||
| replacement | |||||
|
1
|
1
11301-19811-000
CRANKCASE SET
|
11301-19811-000 |
— | ||
|
2
|
2
09280-16010-000 O RING(D:1.9,ID:15.8) |
09280-16010-000 |
US $11.40 |
||
|
3
|
3
09206-13004-000 PIN(10.4X13X22)Pin (l:22) Pin; |
09206-13004-000 |
from US $3.69 |
||
|
4
|
4
01547-06507-000 BoltBolt, cyl head cover no.2 |
01547-06507-000 |
from US $0.96 |
||
|
5
|
5
01547-06657-000 Bolt |
01547-06657-000 |
from US $4.34 |
||
|
6
|
6
11395-03D10-000 SCREW,CRANKCASE |
11395-03D10-000 |
US $1.51 |
||
|
7
|
7
07110-06357-000
Bolt
|
07110-06357-000 |
— | ||
| replacement | |||||
|
7
|
7
07130-06357-000 Bolt |
07130-06357-000 |
from US $0.96 |
||
|
8
|
8
11391-03D00-000
PIPE,BREATHER
|
11391-03D00-000 |
— | ||
|
9
|
9
09352-60103-00A
Hose, breather
L:1000->00 |
09352-60103-00A |
— | ||
| replacement | |||||
|
9
|
9
09352-60103-00B HOSE(6X10X2000)Hose, fuel L:1000->00 |
09352-60103-00B |
from US $25.21 |
||
|
10
|
10
09103-08303-000
Bolt (8*175)
Bolt (8x175); |
09103-08303-000 |
— | ||
|
11
|
11
09103-08218-000
BOLT(8X265)
Bolt (8x265); |
09103-08218-000 |
— | ||
|
12
|
12
11610-46A00-000
Spacer (l:30.2)
Spacer, engine mounting; |
11610-46A00-000 |
— | ||
|
13
|
13
08319-31087-000 NUT |
08319-31087-000 |
from US $1.67 |
||
|
14
|
14
09247-14031-000
Plug, oil drain
|
09247-14031-000 |
— | ||
| replacement | |||||
|
14
|
14
09247-14025-000 PLUG |
09247-14025-000 |
from US $4.42 |
||
|
15
|
15
09168-14004-000 GASKET(14X19.2X2)Gasket (14.1x18x1.5) Gasket; |
09168-14004-000 |
from US $1.22 |
||
|
16
|
16
13150-03D00-000
VALVE ASSY,REED
|
13150-03D00-000 |
— | ||
|
17
|
17
13152-03D00-000
STOPPER,REED VALVE
|
13152-03D00-000 |
— | ||
| replacement | |||||
|
17
|
17
13152-03D01-000 Stopper,reed Valve |
13152-03D01-000 |
US $4.67 |
||
|
18
|
18
13153-01B20-000
VALVE,REED
|
13153-01B20-000 |
— | ||
| replacement | |||||
|
18
|
18
13153-01B21-000
Valve,reed
|
13153-01B21-000 |
— | ||
|
19
|
19
13154-14500-000
Screw, reed valve
|
13154-14500-000 |
— | ||
| replacements | |||||
|
19
|
19
02112-0308A-000 SCREW |
02112-0308A-000 |
from US $0.96 |
||
|
19
|
19
02112-03083-000
Screw
|
02112-03083-000 |
— | ||
|
20
|
20
13156-03D00-000
Gasket, reed valve
Gasket, reed valve (na); |
13156-03D00-000 |
— | ||
| replacement | |||||
|
20
|
20
13156-03D10-000
GASKET,REED VALVE
Gasket, reed valve (na); |
13156-03D10-000 |
— | ||
|
21
|
21
01107-06205-000
Bolt
|
01107-06205-000 |
— | ||
| replacement | |||||
|
21
|
21
01500-0620A-000 Bolt |
01500-0620A-000 |
from US $0.76 |
||
|
22
|
22
13110-19D00-000
PIPE,INTAKE
|
13110-19D00-000 |
— | ||
| replacement | |||||
|
22
|
22
13110-19D01-000 Pipe,intake |
13110-19D01-000 |
US $84.27 |
||
|
23
|
23
09402-54208-000 CLAMP |
09402-54208-000 |
from US $8.91 |
||
|
24
|
24
13115-03D00-000
Hose, interference
|
13115-03D00-000 |
— | ||
| replacements | |||||
|
24
|
24
09355-90145-00B
HOSE(9X144X2000)
|
09355-90145-00B |
— | ||
|
24
|
24
09354-90143-45A
New Genuine Part
|
09354-90143-45A |
— | ||
|
25
|
25
09401-13409-000 CLIPClamp Clip; |
09401-13409-000 |
from US $2.27 |
||
|
26
|
26
09407-18402-000 CLAMP(L:165)Clamp (l:165) Clamp (l:165); |
09407-18402-000 |
from US $0.77 |
||
|
26
|
26
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $1.08 |
||
