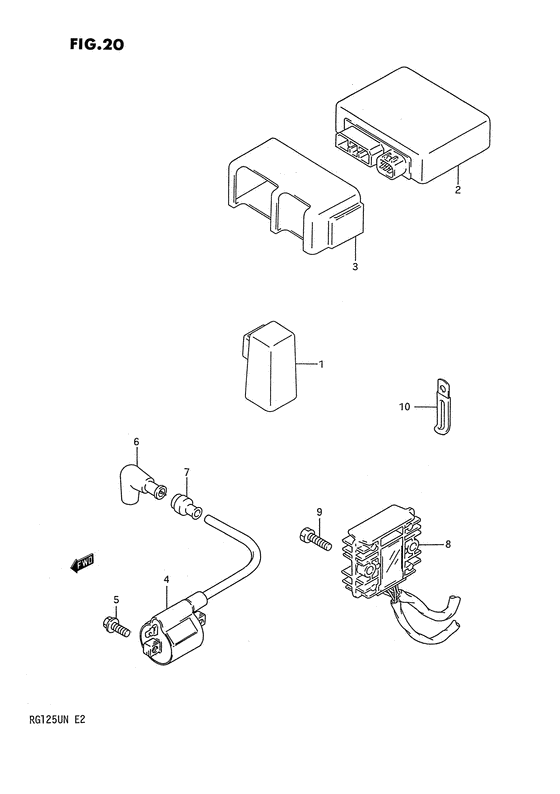

Electrical Diagram Suzuki RG125
- Year
- 1992
- Model code
- RG125UN(E2) N
- Engine Capacity
- 125
- Model
- RG125F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31800-19D00-000
Relay, starting motor
|
31800-19D00-000 |
— | ||
| replacement | |||||
|
1
|
1
31800-19D01-000
RELAY ASSY,STARTING MOTOR
|
31800-19D01-000 |
— | ||
|
2
|
2
32900-19D40-000
Cdi unit
|
32900-19D40-000 |
— | ||
|
3
|
3
32980-19D00-000
Holder, cdi unit
|
32980-19D00-000 |
— | ||
|
4
|
4
33410-03D00-000 COIL ASSY,IGNITION |
33410-03D00-000 |
US $80.96 |
||
|
5
|
5
01517-06166-000
Bolt
|
01517-06166-000 |
— | ||
| replacement | |||||
|
5
|
5
01550-0616B-000 Bolt |
01550-0616B-000 |
from US $0.76 |
||
|
6
|
6
33510-20A00-000
Cap, spark plug
|
33510-20A00-000 |
— | ||
| replacement | |||||
|
6
|
6
33510-20A02-000 Cap,spark plug |
33510-20A02-000 |
from US $19.20 |
||
|
7
|
7
33542-38B00-000 SEAL,HIGH TENSION CORDSeal, hightension cord Seal, high tension cord; |
33542-38B00-000 |
from US $1.52 |
||
|
8
|
8
32800-08D10-000 Rectifier Assy |
32800-08D10-000 |
from US $119.23 |
||
|
9
|
9
09128-06024-000
Screw exhaust p
Bolt (6x25); |
09128-06024-000 |
— | ||
| replacement | |||||
|
9
|
9
09103-06212-000 BOLT(6X25)Bolt (6x25); |
09103-06212-000 |
from US $0.91 |
||
|
10
|
10
09404-06402-000
Clamp, hose (l:60)
|
09404-06402-000 |
— | ||
| replacements | |||||
|
10
|
10
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
10
|
10
09404-06206-000
CLAMP(L:45)
|
09404-06206-000 |
— | ||
|
10
|
10
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
10
|
10
09404-06031-000 Clamp,rsvr Tank Ovfl Hose |
09404-06031-000 |
from US $1.37 |
||
