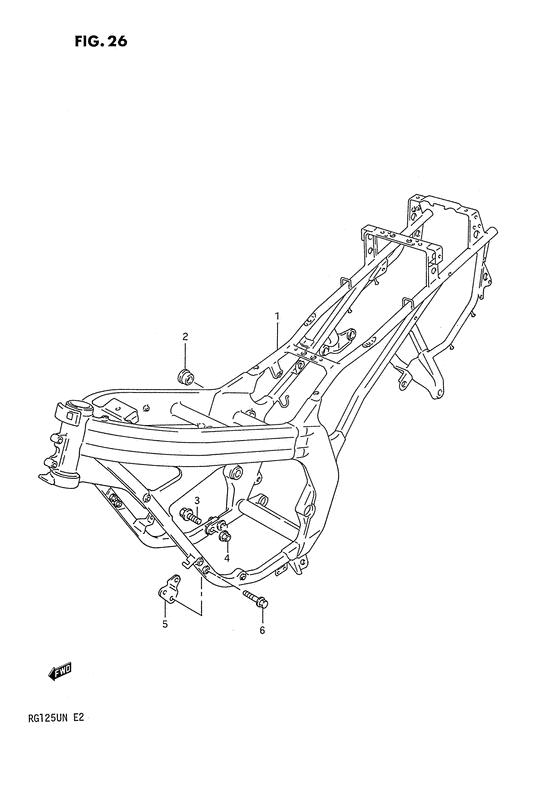

Frame Diagram Suzuki RG125
- Year
- 1992
- Model code
- RG125UN(E2) N
- Engine Capacity
- 125
- Model
- RG125F
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41100-19D70-13L
Frame (silver)
Frame (silver); |
41100-19D70-13L |
— | ||
|
1
|
1
41100-19D80-13L
Frame (silver)
Frame (silver); E4 |
41100-19D80-13L |
— | ||
|
2
|
2
09250-25006-000
Plug, frame rh
Plug, frame rh; |
09250-25006-000 |
— | ||
|
3
|
3
07120-10308-000
Bolt
Bolt, frame joint; |
07120-10308-000 |
— | ||
| replacement | |||||
|
3
|
3
07120-1030B-000 BoltBolt, frame joint; |
07120-1030B-000 |
from US $7.06 |
||
|
4
|
4
08319-31107-000 NUT |
08319-31107-000 |
from US $1.98 |
||
|
5
|
5
41910-19D00-13L
PLATE,ENG MTG(SILVER)
|
41910-19D00-13L |
— | ||
|
6
|
6
01517-08508-000
Bolt 8x50
|
01517-08508-000 |
— | ||
| replacement | |||||
|
6
|
6
01550-08507-000 Bolt |
01550-08507-000 |
from US $1.08 |
||
