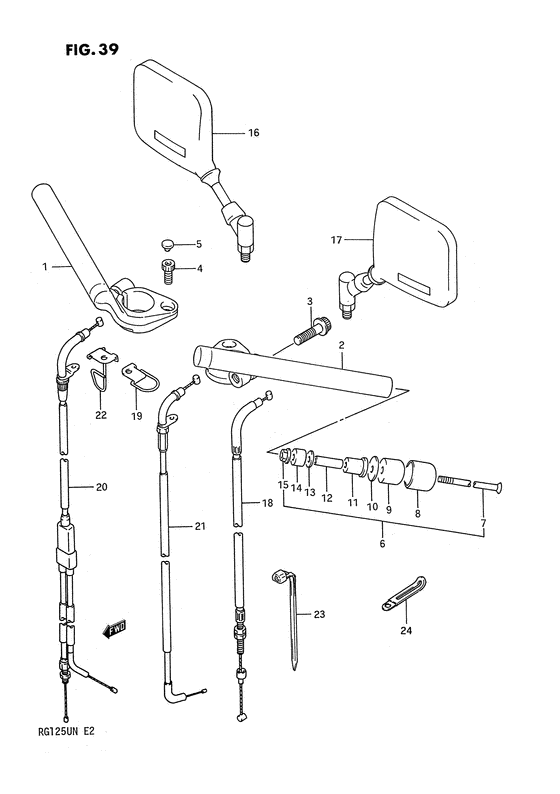

Handlebar Diagram Suzuki RG125
- Year
- 1992
- Model code
- RG125UN(E2) N
- Engine Capacity
- 125
- Model
- RG125F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56110-19D10-000
Handlebar, rh
|
56110-19D10-000 |
— | ||
| replacement | |||||
|
1
|
1
56110-19D11-000
Handlebar,r
|
56110-19D11-000 |
— | ||
|
2
|
2
56150-19D10-000
HANDLEBAR,L
|
56150-19D10-000 |
— | ||
|
3
|
3
07120-10357-000
Bolt
|
07120-10357-000 |
— | ||
| replacement | |||||
|
3
|
3
07120-1035B-000 Bolt |
07120-1035B-000 |
from US $7.31 |
||
|
4
|
4
07130-08208-000
Bolt
|
07130-08208-000 |
— | ||
| replacement | |||||
|
4
|
4
07130-08207-000 Bolt |
07130-08207-000 |
from US $5.88 |
||
|
5
|
5
09250-06011-000 CAP(OD:11) |
09250-06011-000 |
from US $1.82 |
||
|
6
|
6
56200-19870-000
Balancer set, handlebar
|
56200-19870-000 |
— | ||
| replacement | |||||
|
6
|
6
56200-18812-000
BALANCER SET,HANDLEBAR
|
56200-18812-000 |
— | ||
|
7
|
7
09127-06017-000 SCREW(6X127)Screw Screw (6x127); |
09127-06017-000 |
from US $1.76 |
||
|
8
|
8
56274-48B00-000
CAP,HANDLEBAR BALANCER
|
56274-48B00-000 |
— | ||
|
9
|
9
56271-49420-000 BALANCER,HANDLE |
56271-49420-000 |
from US $18.95 |
||
|
10
|
10
56275-34400-000 Spacer |
56275-34400-000 |
US $3.33 |
||
| replacement | |||||
|
10
|
10
56275-34401-000 SPACER,BALANCER |
56275-34401-000 |
from US $2.61 |
||
|
11
|
11
56272-19D00-000 EXPANDER,HANDLE BALANCERExpander, handle |
56272-19D00-000 |
from US $7.25 |
||
|
12
|
12
56276-17D00-000 SPACER,EXPANDER |
56276-17D00-000 |
from US $1.82 |
||
|
13
|
13
08322-21067-000
Washer
|
08322-21067-000 |
— | ||
| replacement | |||||
|
13
|
13
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.65 |
||
|
14
|
14
56272-43500-000
Expander
|
56272-43500-000 |
— | ||
| replacement | |||||
|
14
|
14
56272-42F00-000 EXPANDER,HANDLE BALANCER |
56272-42F00-000 |
from US $1.94 |
||
|
15
|
15
09159-06024-000 NUT |
09159-06024-000 |
from US $1.28 |
||
|
16
|
16
56500-10040-000
Mirror assy, rear view rh
Mirror assy, rear view rh; |
56500-10040-000 |
— | ||
| replacements | |||||
|
16
|
16
56500-10042-000
MIRROR ASSY,RR VIEW,R
Mirror assy, rear view rh; |
56500-10042-000 |
— | ||
|
16
|
16
56500-10043-000 Mirror Assy,rear View,rMirror assy, rear view rh; |
56500-10043-000 |
from US $81.33 |
||
|
17
|
17
56600-10040-000
Mirror assy, rear view lh
|
56600-10040-000 |
— | ||
| replacements | |||||
|
17
|
17
56600-10042-000
MIRROR ASSY,RR VIEW,L
|
56600-10042-000 |
— | ||
|
17
|
17
56600-10043-000 Mirror Assy,rear View,l |
56600-10043-000 |
from US $81.33 |
||
|
18
|
18
58210-19D10-000 Cable,clutch |
58210-19D10-000 |
US $43.42 |
||
|
19
|
19
58290-22D01-000
Guide, clutch cable
|
58290-22D01-000 |
— | ||
|
20
|
20
58300-19D10-000 Cable assy,throttle |
58300-19D10-000 |
US $44.16 |
||
|
21
|
21
58410-19D10-000
Cable, starter
|
58410-19D10-000 |
— | ||
| replacement | |||||
|
21
|
21
58410-19D11-000
CABLE,STARTER
|
58410-19D11-000 |
— | ||
|
22
|
22
58470-12C00-000
Guide,starter cable
|
58470-12C00-000 |
— | ||
|
23
|
23
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $1.08 |
||
|
24
|
24
09404-06413-000
Clamp throttle
|
09404-06413-000 |
— | ||
| replacements | |||||
|
24
|
24
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
24
|
24
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
