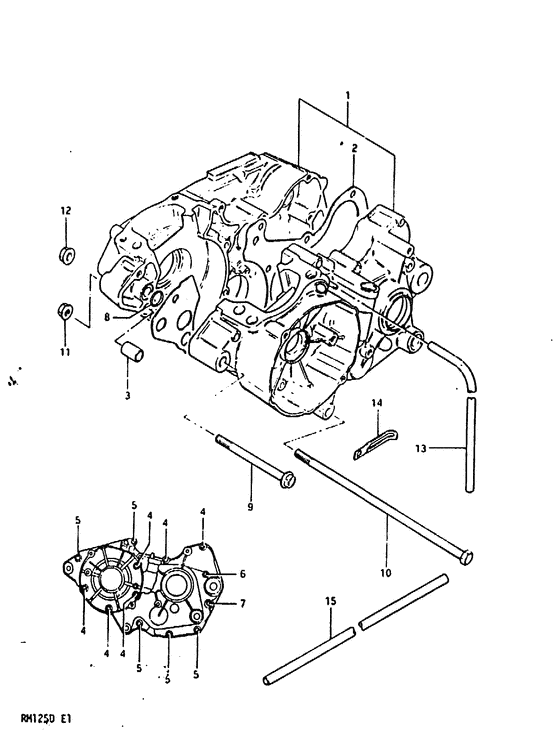

Crankcase Diagram Suzuki RM125
- Year
- 1983
- Model code
- RM125D D
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11300-14880-000
Crankcase Assy
|
11300-14880-000 |
— | ||
|
2
|
2
11481-14110-000 Gasket |
11481-14110-000 |
US $12.23 |
||
| replacement | |||||
|
2
|
2
11481-14110-H17 GASKET,CRANKCASE |
11481-14110-H17 |
from US $12.23 |
||
|
3
|
3
09206-13001-000
Pin
|
09206-13001-000 |
— | ||
| replacement | |||||
|
3
|
3
04211-13189-000 PIN |
04211-13189-000 |
from US $1.22 |
||
|
4
|
4
02112-06458-000
Screw
|
02112-06458-000 |
— | ||
| replacement | |||||
|
4
|
4
02112-06457-000 SCREW |
02112-06457-000 |
from US $0.80 |
||
|
5
|
5
02112-06508-000
Screw
|
02112-06508-000 |
— | ||
| replacement | |||||
|
5
|
5
02112-06507-000 SCREWScrew |
02112-06507-000 |
from US $0.96 |
||
|
6
|
6
02112-06557-000 SCREW |
02112-06557-000 |
from US $0.96 |
||
|
7
|
7
02112-06658-000
Screw 6x65
Screw (6*65); |
02112-06658-000 |
— | ||
| replacement | |||||
|
7
|
7
02112-06657-000 SCREWScrew (6*65); |
02112-06657-000 |
from US $2.27 |
||
|
8
|
8
09280-14004-000 O RING(D:1.9,ID:13.8)O ring, gear shifting cam |
09280-14004-000 |
from US $0.18 |
||
|
9
|
9
09103-08072-000
Bolt
Bolt (8*90); |
09103-08072-000 |
— | ||
| replacement | |||||
|
9
|
9
09103-08363-000 BOLT(8X90)Bolt (8*90); |
09103-08363-000 |
from US $8 |
||
|
10
|
10
09100-08190-000
Bolt
Bolt (8*205); |
09100-08190-000 |
— | ||
|
11
|
11
08319-31088-000
Nut
|
08319-31088-000 |
— | ||
| replacement | |||||
|
11
|
11
08319-3108A-000 NUT |
08319-3108A-000 |
from US $1.67 |
||
|
12
|
12
08319-21088-000
Nut 8mm
Nut; |
08319-21088-000 |
— | ||
| replacement | |||||
|
12
|
12
08319-2108A-000 NUTNut, lower Nut; |
08319-2108A-000 |
from US $3.35 |
||
|
13
|
13
09343-04046-000
Hose,breather (l:440 250)
|
09343-04046-000 |
— | ||
| replacements | |||||
|
13
|
13
09352-40703-600
HOSE(4X7X600)
|
09352-40703-600 |
— | ||
|
13
|
13
09352-40706-600 Hose(4X7X600) |
09352-40706-600 |
from US $8.16 |
||
|
14
|
14
09404-06412-000
Clamp
|
09404-06412-000 |
— | ||
| replacements | |||||
|
14
|
14
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
14
|
14
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
15
|
15
09343-04046-000
Hose,breather (l:440 250)
|
09343-04046-000 |
— | ||
| replacements | |||||
|
15
|
15
09352-40703-600
HOSE(4X7X600)
|
09352-40703-600 |
— | ||
|
15
|
15
09352-40706-600 Hose(4X7X600) |
09352-40706-600 |
from US $8.16 |
||
|
15
|
15
09343-04046-000
Hose,breather (l:440 250)
|
09343-04046-000 |
— | ||
| replacements | |||||
|
15
|
15
09352-40703-600
HOSE(4X7X600)
|
09352-40703-600 |
— | ||
|
15
|
15
09352-40706-600 Hose(4X7X600) |
09352-40706-600 |
from US $8.16 |
||
