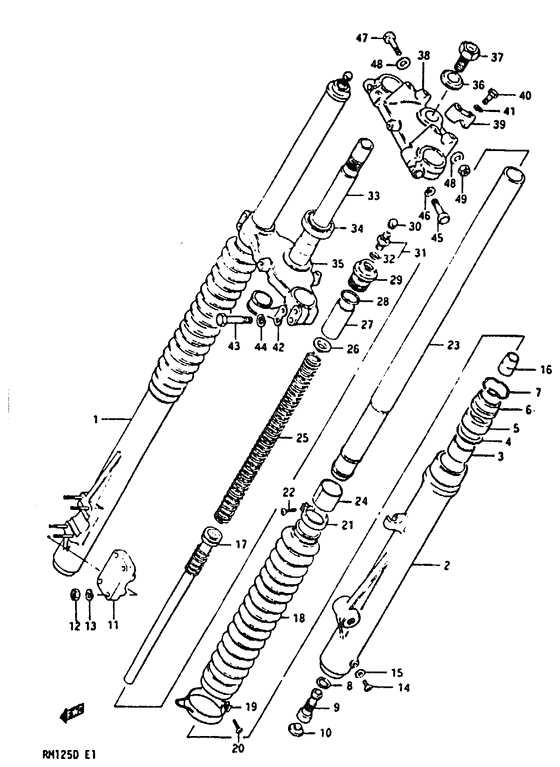

Front fork Diagram Suzuki RM125
- Year
- 1983
- Model code
- RM125D D
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16
|
16
51100-14140-163
Fork assy fr
Front fork assy (yellow); |
51100-14140-163 |
— | ||
|
1
|
1
51130-14140-163
Outer tube, rh
|
51130-14140-163 |
— | ||
|
2
|
2
51141-14140-163
Tube,outer lh
|
51141-14140-163 |
— | ||
|
3
|
3
51167-14100-000
Slide metal
|
51167-14100-000 |
— | ||
| replacement | |||||
|
3
|
3
51167-13A00-000 Metal,slide |
51167-13A00-000 |
from US $5.59 |
||
|
4
|
4
51158-14100-000 WASHER(40X50X2.3)Washer |
51158-14100-000 |
from US $2.13 |
||
|
5
|
5
51153-14140-000
SEAL,OIL
|
51153-14140-000 |
— | ||
|
6
|
6
51173-14140-000
SEAL,DUST
|
51173-14140-000 |
— | ||
|
7
|
7
51156-40301-000 RING,STOPPERRing, oil seal stopper Snap ring; |
51156-40301-000 |
from US $2.58 |
||
|
8
|
8
51148-14140-000
Gasket,cylinder
|
51148-14140-000 |
— | ||
|
9
|
9
51770-14140-000
Valve,df
|
51770-14140-000 |
— | ||
|
10
|
10
51189-14140-000
Cap,fork valve
|
51189-14140-000 |
— | ||
|
11
|
11
51132-14140-163
Holder, axle (yellow)
|
51132-14140-163 |
— | ||
|
12
|
12
08310-12068-000
Nut 6mm
|
08310-12068-000 |
— | ||
| replacement | |||||
|
12
|
12
08310-00067-000 NUT |
08310-00067-000 |
from US $0.76 |
||
|
13
|
13
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
13
|
13
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.65 |
||
|
14
|
14
02112-04088-000
Screw
|
02112-04088-000 |
— | ||
| replacement | |||||
|
14
|
14
02112-04087-000 SCREW |
02112-04087-000 |
from US $0.41 |
||
|
15
|
15
51183-03010-000 GASKET,DRAIN,PLUGGasket Gasket; |
51183-03010-000 |
from US $1.40 |
||
|
16
|
16
51195-14140-000
Pieace, oil lock
|
51195-14140-000 |
— | ||
|
17
|
17
51146-14140-000
Cylinder,fork
|
51146-14140-000 |
— | ||
|
18
|
18
51571-40300-000
BOOT
|
51571-40300-000 |
— | ||
|
19
|
19
51574-14140-000
Band
|
51574-14140-000 |
— | ||
|
20
|
20
02112-04188-000
Screw
|
02112-04188-000 |
— | ||
| replacement | |||||
|
20
|
20
02112-0420A-000 SCREW |
02112-0420A-000 |
from US $0.80 |
||
|
21
|
21
51575-40300-000
Band,boot
|
51575-40300-000 |
— | ||
| replacement | |||||
|
21
|
21
51575-44B00-000
BAND,BOOT
|
51575-44B00-000 |
— | ||
|
22
|
22
02112-04108-000
Screw
|
02112-04108-000 |
— | ||
| replacement | |||||
|
22
|
22
02112-04107-000 SCREW |
02112-04107-000 |
from US $0.80 |
||
|
23
|
23
51110-14140-000
Tube, inner
|
51110-14140-000 |
— | ||
|
24
|
24
51121-14100-000 PISTONPiston |
51121-14100-000 |
from US $8.46 |
||
|
25
|
25
51171-14120-000
Spring
|
51171-14120-000 |
— | ||
| replacement | |||||
|
25
|
25
51171-14300-000
Spring fr fork
|
51171-14300-000 |
— | ||
|
26
|
26
51172-40300-000 GUIDEGuide, spring; |
51172-40300-000 |
from US $3.50 |
||
|
27
|
27
51176-14140-000
Spacer,spring
|
51176-14140-000 |
— | ||
|
28
|
28
51117-40300-000 O RINGO ring; |
51117-40300-000 |
from US $2.24 |
||
|
29
|
29
51351-14140-000
Cap,inner tube
|
51351-14140-000 |
— | ||
|
30
|
30
51294-40400-000 CAP,VALVE AIR |
51294-40400-000 |
from US $10.35 |
||
|
31
|
31
51169-14140-000
Valve,fork air
|
51169-14140-000 |
— | ||
|
32
|
32
51117-14210-000
O ring
|
51117-14210-000 |
— | ||
| replacement | |||||
|
32
|
32
09280-06005-000 O RING(D:1.9,ID:5.7)O ring |
09280-06005-000 |
from US $1.26 |
||
|
33
|
33
51410-14140-291
Stem, steering (black)
|
51410-14140-291 |
— | ||
|
34
|
34
09265-30005-000
Bearing
|
09265-30005-000 |
— | ||
| replacements | |||||
|
34
|
34
09265-30009-000
BEARING(30X55X17)
|
09265-30009-000 |
— | ||
|
34
|
34
09265-30034-000 Bearing |
09265-30034-000 |
from US $31.92 |
||
|
35
|
35
08211-30402-000
Winner
|
08211-30402-000 |
— | ||
| replacement | |||||
|
35
|
35
09181-30184-000 SHIM(30X40X1.5)Washer |
09181-30184-000 |
from US $1.82 |
||
|
36
|
36
51356-41310-000 WASHER |
51356-41310-000 |
US $5.46 |
||
|
37
|
37
51351-41320-000
Bolt
|
51351-41320-000 |
— | ||
|
38
|
38
51311-14140-291
Head,stem
Stem head, steering (black); |
51311-14140-291 |
— | ||
|
39
|
39
56211-27200-291 HOLDER,HANDLE UPRClamp, handlebar (black) Holder, handle (black); |
56211-27200-291 |
from US $7.60 |
||
|
40
|
40
01107-08358-000
Bolt 8 x 35
|
01107-08358-000 |
— | ||
| replacement | |||||
|
40
|
40
01500-0835B-000 BoltBolt, muffler support |
01500-0835B-000 |
from US $0.96 |
||
|
41
|
41
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
41
|
41
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
42
|
42
58621-40301-000
CLIP,CABLE
|
58621-40301-000 |
— | ||
|
43
|
43
01107-08458-000
Bolt
|
01107-08458-000 |
— | ||
| replacement | |||||
|
43
|
43
01500-08453-000 BoltBolt, lower bracket |
01500-08453-000 |
from US $1.22 |
||
|
44
|
44
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
44
|
44
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
45
|
45
01107-10458-000
Bolt (10*45)
|
01107-10458-000 |
— | ||
| replacement | |||||
|
45
|
45
01500-1045A-000 Bolt |
01500-1045A-000 |
from US $1.13 |
||
|
46
|
46
08321-21108-000
Lock washer
|
08321-21108-000 |
— | ||
| replacement | |||||
|
46
|
46
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
|
47
|
47
01107-08508-000
Bolt
|
01107-08508-000 |
— | ||
| replacement | |||||
|
47
|
47
01500-08507-000 Bolt |
01500-08507-000 |
from US $4.88 |
||
|
48
|
48
08322-21088-000
Washer
|
08322-21088-000 |
— | ||
| replacement | |||||
|
48
|
48
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
49
|
49
08310-12088-000
Nut
|
08310-12088-000 |
— | ||
| replacement | |||||
|
49
|
49
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
