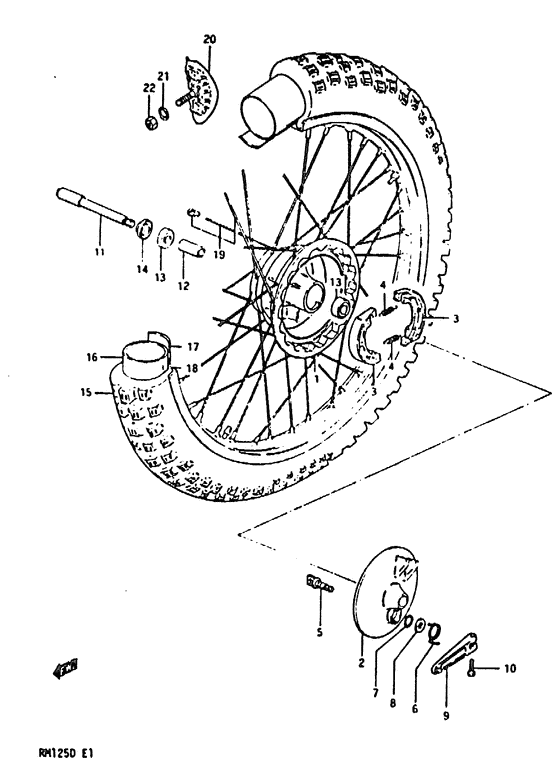

Front wheel Diagram Suzuki RM125
- Year
- 1983
- Model code
- RM125D D
- Engine Capacity
- 125
- Model
- RM125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54110-14120-000
Hub, front wheel
|
54110-14120-000 |
— | ||
|
2
|
2
54210-14120-000
Panel fr hub
|
54210-14120-000 |
— | ||
|
3
|
3
54410-14100-000
Shoe, brake
|
54410-14100-000 |
— | ||
| replacement | |||||
|
3
|
3
64400-40810-000 SHOE SET,BRAKEShoe set, brake |
64400-40810-000 |
from US $30.91 |
||
|
4
|
4
09443-08021-000
SPRING
|
09443-08021-000 |
— | ||
|
5
|
5
54441-14101-000
CAM,FR BRAKE
|
54441-14101-000 |
— | ||
|
6
|
6
09448-32007-000
Srping brake ca
|
09448-32007-000 |
— | ||
|
7
|
7
09280-12001-000 O RING(D:2.5,ID:11.4)O ring, reverse lever pivot Dust seal; |
09280-12001-000 |
from US $4.52 |
||
|
8
|
8
09160-12011-000 WASHER(12.5X20X1)Washer (12.5x20x1) Washer (12.5*20*1); |
09160-12011-000 |
from US $0.91 |
||
|
9
|
9
54451-14111-000
Lever, brake cam
|
54451-14111-000 |
— | ||
|
10
|
10
01107-06258-000
Bolt
|
01107-06258-000 |
— | ||
| replacement | |||||
|
10
|
10
01500-06257-000 Bolt |
01500-06257-000 |
from US $0.96 |
||
|
11
|
11
54711-14202-000
Axle, front
|
54711-14202-000 |
— | ||
|
12
|
12
54730-14100-000
Spacer fr hub b
|
54730-14100-000 |
— | ||
|
13
|
13
09262-15011-000
B1 15x35x11 bea
|
09262-15011-000 |
— | ||
| replacement | |||||
|
13
|
13
09262-15024-000 BEARING(15X35X11) |
09262-15024-000 |
from US $17.66 |
||
|
14
|
14
54740-14200-000
Spacer front ax
Spacer, rh; |
54740-14200-000 |
— | ||
|
15
|
15
55100-14105-000
Tire, front (90/80/21)
Irc |
55100-14105-000 |
— | ||
| replacement | |||||
|
15
|
15
55100-14300-000
Tire fr 100/80-
Irc |
55100-14300-000 |
— | ||
|
15
|
15
55100-14125-000
Tire, front (90/80-21)
Bs |
55100-14125-000 |
— | ||
| replacement | |||||
|
15
|
15
55110-37E10-000
Tire,front,80/1
Bs |
55110-37E10-000 |
— | ||
|
16
|
16
55200-16510-000 TUBETube assy, wheel inner Tube, inner (2.75-21); |
55200-16510-000 |
US $51.75 |
||
|
17
|
17
55261-16510-000 Protector, inner tube |
55261-16510-000 |
from US $3.20 |
||
| replacement | |||||
|
17
|
17
55261-14540-000 PROTECTOR,WHEEL INNERProtector, inner tube |
55261-14540-000 |
US $6.14 |
||
|
18
|
18
55311-14100-000
Rim, wheel (1.60-21)
|
55311-14100-000 |
— | ||
| replacement | |||||
|
18
|
18
55311-14500-000
Rim fr wheel 1.
|
55311-14500-000 |
— | ||
|
19
|
19
55320-14111-000
Spoke assy fr w
|
55320-14111-000 |
— | ||
|
20
|
20
65270-14300-000 STOPPER,BEADStopper, bead; |
65270-14300-000 |
US $60.52 |
||
|
21
|
21
08322-11088-000
Washer
|
08322-11088-000 |
— | ||
| replacement | |||||
|
21
|
21
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
22
|
22
08310-22088-000
Nut
|
08310-22088-000 |
— | ||
| replacement | |||||
|
22
|
22
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
