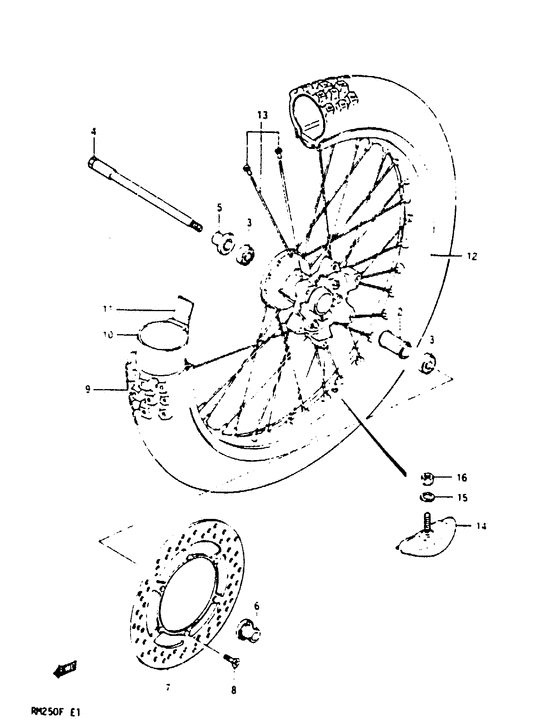

Front wheel (Model f) Diagram Suzuki RM250
- Year
- 1984
- Model code
- RM250E(E/F) E
- Engine Capacity
- 250
- Model
- RM250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54111-14500-000
Hub,front wheel
|
54111-14500-000 |
— | ||
| replacement | |||||
|
1
|
1
54111-14501-000
Hub, fr
|
54111-14501-000 |
— | ||
|
2
|
2
54730-14100-000
Spacer fr hub b
Spacer, front hub; |
54730-14100-000 |
— | ||
|
3
|
3
08123-62027-000 BEARINGB1 15x35x11 bearing rh Bearing; |
08123-62027-000 |
from US $10.08 |
||
|
4
|
4
54711-14510-000
Axle,front
|
54711-14510-000 |
— | ||
| replacement | |||||
|
4
|
4
54711-14500-000
Axle fr
|
54711-14500-000 |
— | ||
|
5
|
5
54740-14500-000
Spacer,axle,rh
|
54740-14500-000 |
— | ||
| replacement | |||||
|
5
|
5
54740-14501-000
Spacer,fr axle
|
54740-14501-000 |
— | ||
|
6
|
6
54750-14500-000
Spacer, axle, lh
|
54750-14500-000 |
— | ||
| replacement | |||||
|
6
|
6
54750-14501-000
Spacer fr axle
|
54750-14501-000 |
— | ||
|
7
|
7
59221-14500-000
Disk,front brake
|
59221-14500-000 |
— | ||
| replacement | |||||
|
7
|
7
59221-14510-000
Disk,front brak
|
59221-14510-000 |
— | ||
|
8
|
8
02122-06168-000
Screw
|
02122-06168-000 |
— | ||
| replacement | |||||
|
8
|
8
02122-06167-000 SCREW |
02122-06167-000 |
from US $0.47 |
||
|
9
|
9
55100-14620-000
Tire, front (100/80-21)
Bs |
55100-14620-000 |
— | ||
| replacement | |||||
|
9
|
9
55110-37E10-000
Tire,front,80/1
Bs |
55110-37E10-000 |
— | ||
|
10
|
10
55200-16510-000 TUBETube assy, wheel inner Tube assy; |
55200-16510-000 |
US $51.75 |
||
|
11
|
11
55261-16510-000 Protector, inner tube |
55261-16510-000 |
from US $3.20 |
||
| replacement | |||||
|
11
|
11
55261-14540-000 PROTECTOR,WHEEL INNERProtector, inner tube |
55261-14540-000 |
US $6.14 |
||
|
12
|
12
55311-14510-000
Rim,front wheel (1.60x21)
|
55311-14510-000 |
— | ||
|
13
|
13
55320-14510-000
Spoke set fr wh
|
55320-14510-000 |
— | ||
|
14
|
14
65270-14300-000 STOPPER,BEADStopper, bead; |
65270-14300-000 |
US $60.52 |
||
|
15
|
15
08322-11088-000
Washer
|
08322-11088-000 |
— | ||
| replacement | |||||
|
15
|
15
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
16
|
16
08310-12088-000
Nut
|
08310-12088-000 |
— | ||
| replacement | |||||
|
16
|
16
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
