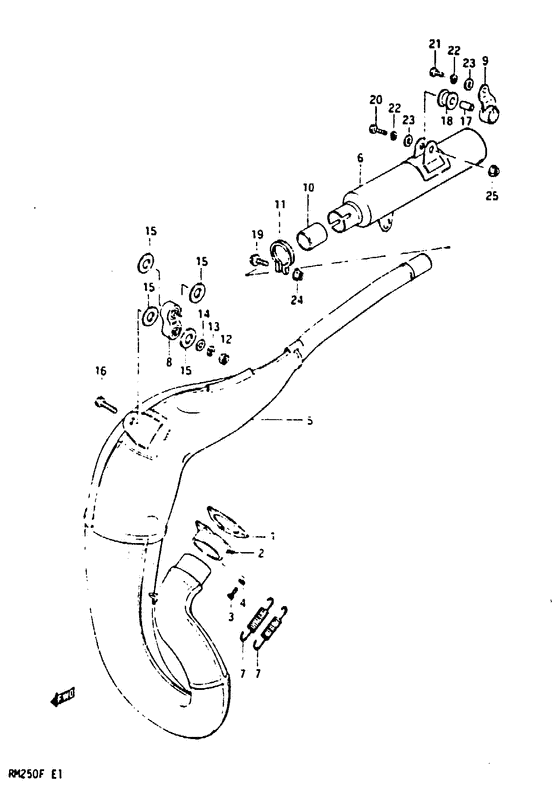

Muffler Diagram Suzuki RM250
- Year
- 1984
- Model code
- RM250E(E/F) E
- Engine Capacity
- 250
- Model
- RM250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14181-16300-000
Exh flange gasket
|
14181-16300-000 |
— | ||
| replacement | |||||
|
1
|
1
14181-16300-H17 GASKET,EXHAUST FLANGE |
14181-16300-H17 |
from US $3.72 |
||
|
2
|
2
14170-14301-000
Flange, exhaust pipe
|
14170-14301-000 |
— | ||
| replacement | |||||
|
2
|
2
14170-00B20-000
Flange ex.pipe
|
14170-00B20-000 |
— | ||
|
3
|
3
02112-06165-000 Screw, front fender |
02112-06165-000 |
US $0.65 |
||
| replacements | |||||
|
3
|
3
02112-0616B-000 SCREW |
02112-0616B-000 |
from US $0.96 |
||
|
3
|
3
02112-0616A-000 SCREW |
02112-0616A-000 |
from US $0.76 |
||
|
4
|
4
08321-21065-000
Lock washer
|
08321-21065-000 |
— | ||
| replacement | |||||
|
4
|
4
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
5
|
5
14310-14601-000
Muffler, 1st
Model e |
14310-14601-000 |
— | ||
|
5
|
5
14310-14605-000
Muffler, 1st
Model f |
14310-14605-000 |
— | ||
|
6
|
6
14330-14601-000
Muffler, 2nd
Model e |
14330-14601-000 |
— | ||
|
6
|
6
14330-14603-000
Muffler, 2nd
Model f |
14330-14603-000 |
— | ||
|
7
|
7
09443-12024-000
Spring
|
09443-12024-000 |
— | ||
| replacement | |||||
|
7
|
7
09443-12024-XC0
SPRING
|
09443-12024-XC0 |
— | ||
|
8
|
8
14770-40000-000
DAMPER,MUFFLER
Damper, muffler; |
14770-40000-000 |
— | ||
|
9
|
9
14770-14600-000
Damper muffler
|
14770-14600-000 |
— | ||
|
10
|
10
14771-14600-000
Gasket
|
14771-14600-000 |
— | ||
| replacement | |||||
|
10
|
10
14771-14601-000
GASKET,2ND MUFFLER
|
14771-14601-000 |
— | ||
|
11
|
11
14772-14600-000
CLAMP,MUFFLER 2ND
|
14772-14600-000 |
— | ||
|
12
|
12
08310-22088-000
Nut
|
08310-22088-000 |
— | ||
| replacement | |||||
|
12
|
12
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
|
13
|
13
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
13
|
13
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
14
|
14
09160-08035-000
Wasehr (8.5x29x1.6)
|
09160-08035-000 |
— | ||
| replacement | |||||
|
14
|
14
09160-08130-000 WASHER(8.5X24X1.6) |
09160-08130-000 |
from US $0.91 |
||
|
15
|
15
09161-13001-000
WASHER(13X28X1.6)
|
09161-13001-000 |
— | ||
|
16
|
16
09100-08176-000 BOLT(8X32)Bolt (8*32); |
09100-08176-000 |
from US $3.35 |
||
|
17
|
17
09180-08102-000
Spacer 2nd muffler (8.6x12x17.5)
|
09180-08102-000 |
— | ||
| replacement | |||||
|
17
|
17
09180-08194-000 SPACER(8.5X12X17.5)Spacer, 8.5x12x17.5 |
09180-08194-000 |
from US $2.08 |
||
|
18
|
18
09320-12026-000
Cushion
|
09320-12026-000 |
— | ||
| replacement | |||||
|
18
|
18
09320-12043-000 CUSHIONCushion, exhaust support |
09320-12043-000 |
from US $7.45 |
||
|
19
|
19
01517-06258-000
Bolt
|
01517-06258-000 |
— | ||
| replacement | |||||
|
19
|
19
01550-06257-000 Bolt |
01550-06257-000 |
from US $1.12 |
||
|
20
|
20
01107-08358-000
Bolt 8 x 35
|
01107-08358-000 |
— | ||
| replacement | |||||
|
20
|
20
01500-0835B-000 BoltBolt, muffler support |
01500-0835B-000 |
from US $0.96 |
||
|
21
|
21
01107-08208-000
Bolt
|
01107-08208-000 |
— | ||
| replacement | |||||
|
21
|
21
01500-08207-000 Bolt |
01500-08207-000 |
from US $0.76 |
||
|
22
|
22
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
22
|
22
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
23
|
23
08322-11088-000
Washer
|
08322-11088-000 |
— | ||
| replacement | |||||
|
23
|
23
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
24
|
24
08316-26068-000
Nut
|
08316-26068-000 |
— | ||
| replacement | |||||
|
24
|
24
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
25
|
25
08316-26088-000
Nut
|
08316-26088-000 |
— | ||
| replacement | |||||
|
25
|
25
08316-20087-000 NUT |
08316-20087-000 |
from US $3.77 |
||
