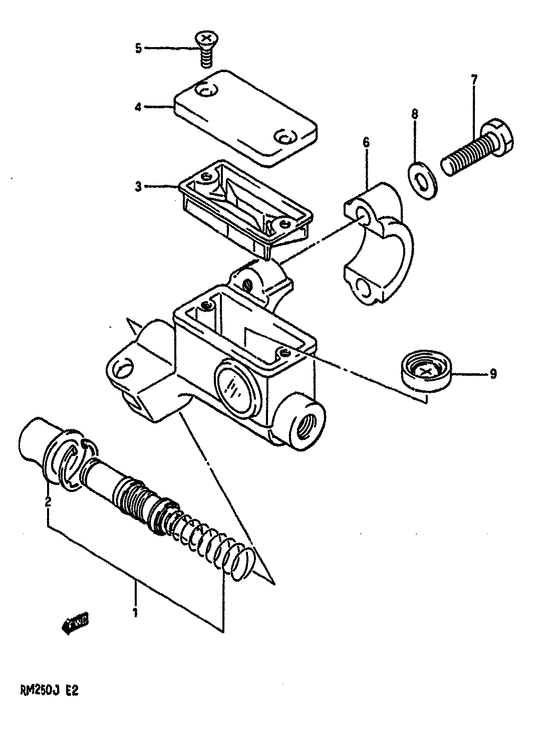

Front Master Cylinder Diagram Suzuki RM250
- Year
- 1988
- Model code
- RM250J J
- Engine Capacity
- 250
- Model
- RM250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
7
|
7
59600-02B01-000 Cylinder assy,front master |
59600-02B01-000 |
US $173.88 |
||
| replacement | |||||
|
7
|
7
59600-27C01-000 CYLINDER ASSY,FR MASTER |
59600-27C01-000 |
from US $191.36 |
||
|
1
|
1
59600-02820-000
Piston/cup set
|
59600-02820-000 |
— | ||
| replacement | |||||
|
1
|
1
59600-03820-000 PISTON & CUP SET |
59600-03820-000 |
from US $34.40 |
||
|
2
|
2
59666-44300-000 BOOT |
59666-44300-000 |
from US $1.82 |
||
|
3
|
3
59667-14500-000 DIAPHRAGM |
59667-14500-000 |
from US $8.27 |
||
|
4
|
4
59669-14500-000
Cap
|
59669-14500-000 |
— | ||
| replacement | |||||
|
4
|
4
59669-27C01-000 CAP |
59669-27C01-000 |
from US $11.37 |
||
|
5
|
5
69689-49300-000 SCREWScrew, cap |
69689-49300-000 |
from US $1.52 |
||
|
6
|
6
59671-14580-000
Holder
|
59671-14580-000 |
— | ||
|
7
|
7
01204-06255-000 Bolt |
01204-06255-000 |
US $11.80 |
||
|
8
|
8
08322-21064-000
Washer
|
08322-21064-000 |
— | ||
| replacement | |||||
|
8
|
8
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
9
|
9
59748-14500-000 SEPARATOR |
59748-14500-000 |
from US $5.78 |
||
