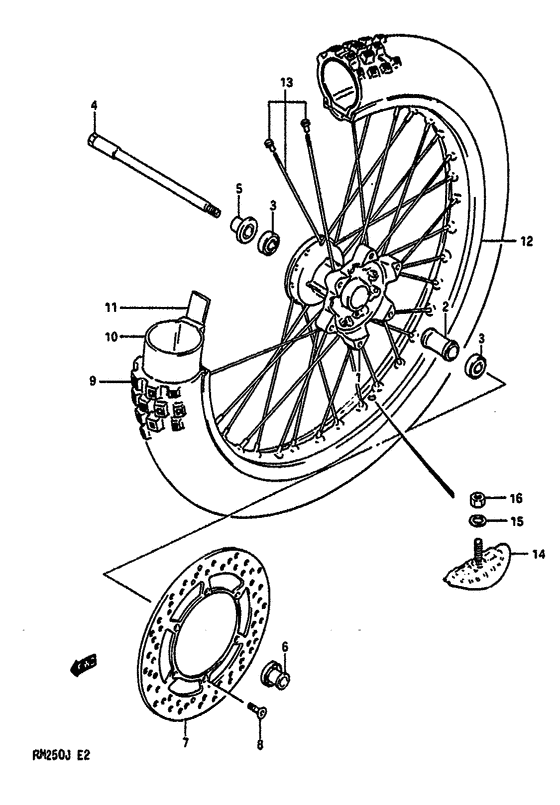

Front wheel Diagram Suzuki RM250
- Year
- 1988
- Model code
- RM250J J
- Engine Capacity
- 250
- Model
- RM250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54111-14501-000
Hub, fr
|
54111-14501-000 |
— | ||
|
2
|
2
54730-01B00-000 SPACER,FR HUB BEARINGSpacer, bearing Spacer,front hub (17.1x27x50); |
54730-01B00-000 |
from US $28.15 |
||
|
3
|
3
08123-60037-000 BEARINGBearing |
08123-60037-000 |
from US $10.72 |
||
|
4
|
4
54711-01B00-000
Axle,front
|
54711-01B00-000 |
— | ||
| replacement | |||||
|
4
|
4
54711-01B02-000
AXLE,FR
|
54711-01B02-000 |
— | ||
|
5
|
5
54740-01B00-000
Spacer,axle,rh
|
54740-01B00-000 |
— | ||
| replacement | |||||
|
5
|
5
54740-01B01-000
SPACER,FR AXLE,R
|
54740-01B01-000 |
— | ||
|
6
|
6
54750-01B00-000
Spacer, axle, lh
|
54750-01B00-000 |
— | ||
| replacement | |||||
|
6
|
6
54750-05D00-000
SPACER,FR AXLE,L
|
54750-05D00-000 |
— | ||
|
7
|
7
59221-14510-000
Disk,front brak
|
59221-14510-000 |
— | ||
|
8
|
8
02122-06167-000 SCREW |
02122-06167-000 |
from US $0.47 |
||
|
9
|
9
55100-00B10-000
Tire, front (80/100-21) (bridgestone)
B6 |
55100-00B10-000 |
— | ||
| replacement | |||||
|
9
|
9
55110-37E10-000
Tire,front,80/1
B6 |
55110-37E10-000 |
— | ||
|
9
|
9
55100-01820-000
Tire,front (80/100-21)
Tire,front (80/100-21); B6 e2 |
55100-01820-000 |
— | ||
|
10
|
10
55200-16510-000 TUBETube assy, wheel inner Tube,inner; |
55200-16510-000 |
US $51.75 |
||
|
10
|
10
55200-14540-000 Tube assy, innerE2 |
55200-14540-000 |
US $44.98 |
||
| replacement | |||||
|
10
|
10
55200-16510-000 TUBETube assy, wheel inner E2 |
55200-16510-000 |
US $51.75 |
||
|
11
|
11
55261-16510-000 Protector, inner tube |
55261-16510-000 |
from US $3.20 |
||
| replacement | |||||
|
11
|
11
55261-14540-000 PROTECTOR,WHEEL INNERProtector, inner tube |
55261-14540-000 |
US $6.14 |
||
|
11
|
11
55261-14540-000 PROTECTOR,WHEEL INNERProtector, inner tube E2 |
55261-14540-000 |
US $6.14 |
||
|
12
|
12
55311-01B00-000 Rim,front wheel (1.60x21) |
55311-01B00-000 |
US $205.57 |
||
| replacement | |||||
|
12
|
12
55311-28C01-000 RIM,FR WHEEL(1.60X21) |
55311-28C01-000 |
US $298.08 |
||
|
13
|
13
55320-01B00-000
Spoke set, front wheel
|
55320-01B00-000 |
— | ||
| replacement | |||||
|
13
|
13
55320-28E00-000 SPOKE SET,FR WHEELSpoke set, front wheel |
55320-28E00-000 |
from US $89.79 |
||
|
14
|
14
65270-14300-000 STOPPER,BEADStopper,bead; |
65270-14300-000 |
US $60.52 |
||
|
15
|
15
08322-11088-000
Washer
|
08322-11088-000 |
— | ||
| replacement | |||||
|
15
|
15
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
16
|
16
08310-22088-000
Nut
|
08310-22088-000 |
— | ||
| replacement | |||||
|
16
|
16
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
