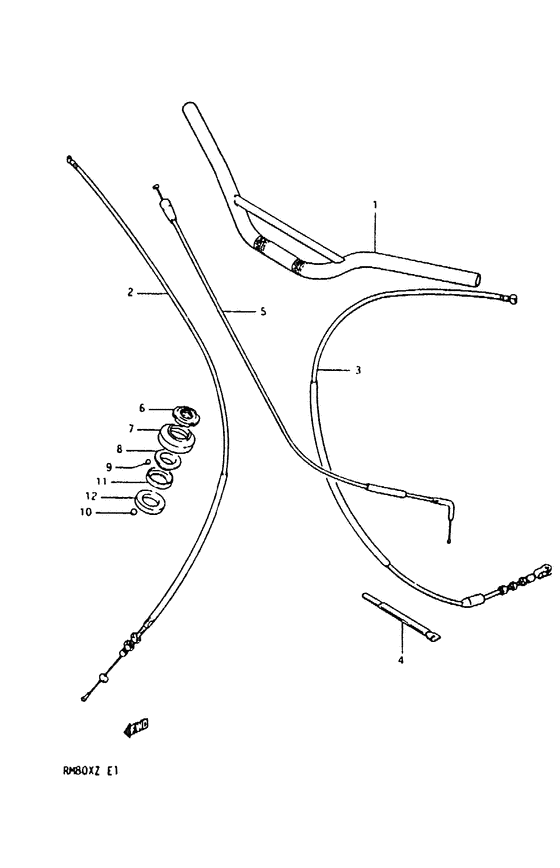

Handlebar - control cable Diagram Suzuki RM80
- Year
- 1982
- Model code
- RM80XZ Z
- Engine Capacity
- 80
- Model
- RM80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56110-20400-08C
Handlebar (gold)
|
56110-20400-08C |
— | ||
| replacement | |||||
|
1
|
1
56110-20900-291
Handlebar
|
56110-20900-291 |
— | ||
|
2
|
2
58110-20400-000
Cable, front brake
|
58110-20400-000 |
— | ||
| replacement | |||||
|
2
|
2
58110-20410-000
CABLE,FR BRAKE
|
58110-20410-000 |
— | ||
|
3
|
3
58200-20400-000
Cable assy, clutch
|
58200-20400-000 |
— | ||
| replacement | |||||
|
3
|
3
58200-20401-000
CABLE ASSY,CLUTCH
|
58200-20401-000 |
— | ||
|
4
|
4
09407-18301-000
CLAMP
Clamp, clutch cable; |
09407-18301-000 |
— | ||
| replacement | |||||
|
4
|
4
09407-18302-000 ClampClamp, clutch cable; |
09407-18302-000 |
from US $2.24 |
||
|
5
|
5
58300-20400-000
Cable assy, throttle
|
58300-20400-000 |
— | ||
| replacement | |||||
|
5
|
5
58300-20X00-000
Cable assy,throttle
|
58300-20X00-000 |
— | ||
|
6
|
6
51631-28000-000 NUT,STEERING STEM(25X44X10)Nut, stem Nut, steering stem; |
51631-28000-000 |
from US $8.36 |
||
|
7
|
7
51643-25001-000 DUST SEAL,STEERING UPRSeal, dust Dust seal, steering; |
51643-25001-000 |
from US $2.13 |
||
|
8
|
8
51621-28000-000 RACE,STEERING OUTER UPRRace, outer upper Race, steering outer upper; |
51621-28000-000 |
from US $7.04 |
||
|
9
|
9
06111-06003-000 BALLBall, steering upper; |
06111-06003-000 |
from US $0.76 |
||
|
10
|
10
06111-08003-000 BALLSteel ball lower Ball, steering lower; |
06111-08003-000 |
from US $0.80 |
||
|
11
|
11
51611-20002-000 RACE,STEERING INNER UPRRace, inner Race, steering inner upper; |
51611-20002-000 |
from US $6.08 |
||
|
12
|
12
51611-33002-000 RACE,STEERING INNER LWRRace, inner lower Race, steering inner lower; |
51611-33002-000 |
from US $8.98 |
||
