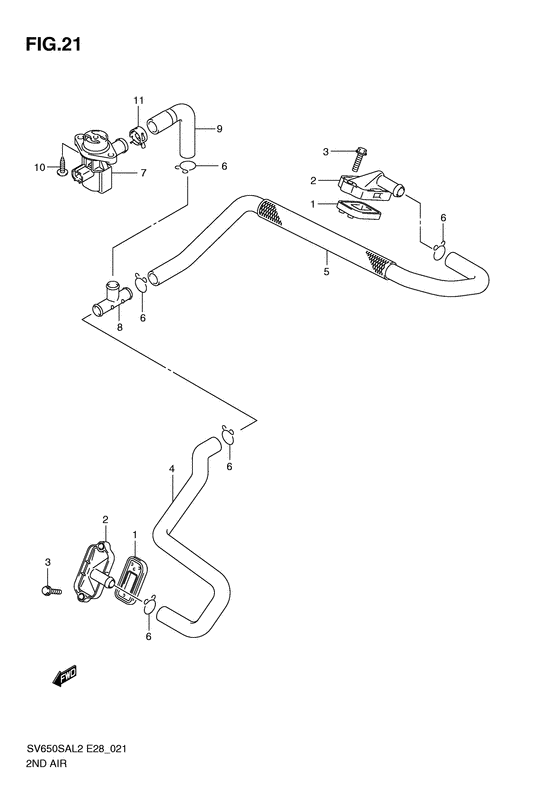

2nd air Diagram Suzuki SV650
- Year
- 2012
- Model code
- SV650SAL2(E28) L2
- Sales region
- Canada
- Engine Capacity
- 650
- Model
- SV650 (ABS)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18450-06G00-000 VALVE ASSY,2ND AIR REED |
18450-06G00-000 |
from US $18.33 |
||
|
2
|
2
18531-06G01-000 COVER,2ND AIRCover, 2nd air Cover, 2nd air reed valve; |
18531-06G01-000 |
from US $8.27 |
||
|
3
|
3
09103-06201-000 BOLT(6X20)Bolt (6x20); |
09103-06201-000 |
from US $4.05 |
||
|
4
|
4
18461-17G10-000 HOSE,2ND AIR VALVE FR |
18461-17G10-000 |
from US $13.98 |
||
|
5
|
5
18471-17G00-000 HOSE,2ND AIR VALVE RR |
18471-17G00-000 |
from US $18.58 |
||
|
6
|
6
09401-15101-000 CLIP |
09401-15101-000 |
from US $1.76 |
||
|
7
|
7
18510-27G00-000
Valve assy, air cut
|
18510-27G00-000 |
— | ||
| replacements | |||||
|
7
|
7
18510-27G01-000
VALVE ASSY,AIR CUT
|
18510-27G01-000 |
— | ||
|
7
|
7
18510-27G02-000 Valve Assy,air Cut |
18510-27G02-000 |
from US $56.70 |
||
|
8
|
8
13855-18A03-000 JOINTJoint Union, 2nd air hose; |
13855-18A03-000 |
from US $3.20 |
||
|
9
|
9
18711-27G00-000 HOSE,2ND AIR VALVE |
18711-27G00-000 |
from US $7.40 |
||
|
10
|
10
03541-0520A-000 SCREW |
03541-0520A-000 |
from US $0.76 |
||
|
11
|
11
09401-18304-A05 CLIP |
09401-18304-A05 |
from US $2.13 |
||
