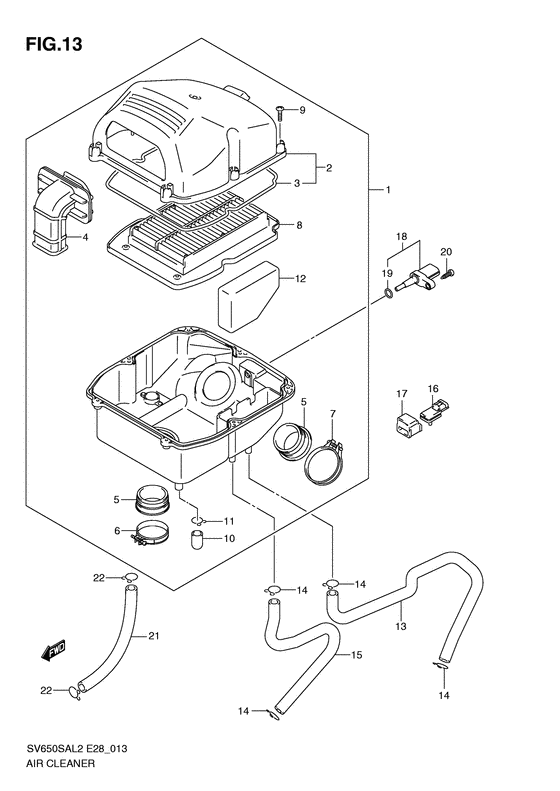

Air cleaner Diagram Suzuki SV650
- Year
- 2012
- Model code
- SV650SAL2(E28) L2
- Sales region
- Canada
- Engine Capacity
- 650
- Model
- SV650 (ABS)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-17G10-000
CLEANER ASSY,AIR
|
13700-17G10-000 |
— | ||
|
2
|
2
13740-16G00-000
CAP,AIR CLEANER
|
13740-16G00-000 |
— | ||
| replacement | |||||
|
2
|
2
13740-16G01-000 Cap,air Cleaner |
13740-16G01-000 |
from US $34.04 |
||
|
3
|
3
13746-16G00-000 GASKETGasket, air cleaner |
13746-16G00-000 |
from US $6.15 |
||
|
4
|
4
13891-17G00-000
TUBE,INLET
|
13891-17G00-000 |
— | ||
| replacement | |||||
|
4
|
4
13891-17G01-000 Tube,inlet |
13891-17G01-000 |
from US $30.73 |
||
|
5
|
5
13881-17G00-000
TUBE,OUTLET
|
13881-17G00-000 |
— | ||
| replacement | |||||
|
5
|
5
13881-17G01-000 Tube,outlet |
13881-17G01-000 |
from US $14.38 |
||
|
6
|
6
13826-17G00-000 CLAMPClamp, cutlet tube front |
13826-17G00-000 |
from US $6.86 |
||
|
7
|
7
13826-17G00-000 CLAMPClamp, cutlet tube front |
13826-17G00-000 |
from US $6.86 |
||
|
8
|
8
13780-16G00-000 FILTER |
13780-16G00-000 |
from US $36.48 |
||
|
9
|
9
03541-0520A-000 SCREW |
03541-0520A-000 |
from US $0.76 |
||
|
10
|
10
13859-41B10-000 PLUG |
13859-41B10-000 |
from US $2.89 |
||
|
11
|
11
09401-14301-000 CLIPClip Clip; |
09401-14301-000 |
from US $2.13 |
||
|
12
|
12
13788-17G00-000 FILTER,BREATHER |
13788-17G00-000 |
from US $11.44 |
||
|
13
|
13
13851-17G00-000 TUBE,BREATHER CRANKCASE |
13851-17G00-000 |
from US $14.32 |
||
|
14
|
14
09401-15101-000 CLIP |
09401-15101-000 |
from US $1.76 |
||
|
15
|
15
13851-17G10-000 TUBE,BREATHER CYLINDER |
13851-17G10-000 |
from US $11.59 |
||
|
16
|
16
18591-41F00-000 SENSOR,PRESSURESensor, boost lh Sensor, pressure; |
18591-41F00-000 |
from US $233.68 |
||
|
17
|
17
18595-41F00-000 HOLDER,SENSORHolder, sensor; |
18595-41F00-000 |
US $9.16 |
||
|
18
|
18
13650-41F10-000 SENSOR,AIR TEMP |
13650-41F10-000 |
from US $40.80 |
||
|
19
|
19
13655-41F10-000 O RING |
13655-41F10-000 |
US $5.34 |
||
|
20
|
20
03511-0516A-000 SCREWScrew; |
03511-0516A-000 |
from US $0.76 |
||
|
21
|
21
13865-17G00-000 HOSE,ISC CLNR |
13865-17G00-000 |
US $19.87 |
||
|
22
|
22
09401-15101-000 CLIP |
09401-15101-000 |
from US $1.76 |
||
