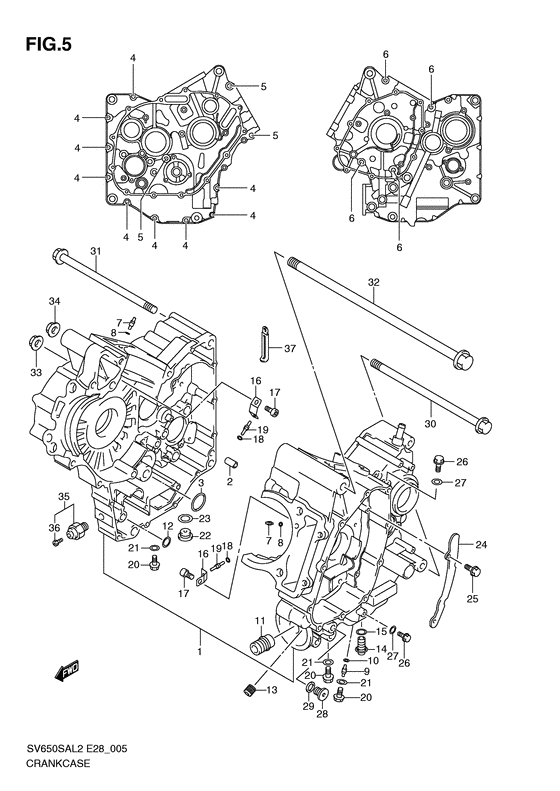

Crankcase Diagram Suzuki SV650
- Year
- 2012
- Model code
- SV650SAL2(E28) L2
- Sales region
- Canada
- Engine Capacity
- 650
- Model
- SV650 (ABS)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11301-20883-000
CRANKCASE SET
|
11301-20883-000 |
— | ||
| replacement | |||||
|
1
|
1
11301-20885-000 CRANKCASE SET |
11301-20885-000 |
US $2,122.48 |
||
|
2
|
2
09206-11007-000 PIN(8.4X11X20)Pin (8.4x11x20); |
09206-11007-000 |
from US $3.20 |
||
|
3
|
3
09280-15007-000 O RING(D:2.4,ID:15.8)O ring (d:2.4,id:15.8); |
09280-15007-000 |
from US $0.81 |
||
|
4
|
4
01547-0650A-000 Bolt |
01547-0650A-000 |
from US $0.91 |
||
|
5
|
5
07120-0855A-000 Bolt |
07120-0855A-000 |
from US $5.88 |
||
|
6
|
6
07120-0880A-000 Bolt |
07120-0880A-000 |
from US $6.49 |
||
|
7
|
7
09493-28010-000 JET,AIR (14)Jet, oil gallery Jet (14); |
09493-28010-000 |
from US $6.72 |
||
|
8
|
8
09280-04004-000 O RING(D:1.2,ID:4)O ring, oil gallery jet O ring (d:1.2,id:4); |
09280-04004-000 |
from US $1.82 |
||
|
9
|
9
09493-28010-000 JET,AIR (14)Jet, oil gallery Jet (14); |
09493-28010-000 |
from US $6.72 |
||
|
10
|
10
09280-04004-000 O RING(D:1.2,ID:4)O ring, oil gallery jet O ring (d:1.2,id:4); |
09280-04004-000 |
from US $1.82 |
||
|
11
|
11
16591-06B01-000 UNION,OIL STANDUnion, oil filter stand; |
16591-06B01-000 |
from US $5.60 |
||
|
12
|
12
09280-12009-000 O RING(D:1.9,ID:12.6)O ring (d:1.9,id:12.6); |
09280-12009-000 |
from US $1.98 |
||
|
13
|
13
11329-17G00-000 JET,OIL GALLERY(3.6)Jet, oil gallery (3.6); |
11329-17G00-000 |
from US $4.27 |
||
|
14
|
14
09247-12011-000 PLUG(12X20)Plug, oil drain Plug (12x20); Oil drain |
09247-12011-000 |
from US $2.74 |
||
|
15
|
15
09168-12002-000 GASKET(12.1X16.2X3.7)Gasket Gasket (12.1x16.2x3.7); |
09168-12002-000 |
from US $0.76 |
||
|
16
|
16
16438-19F00-000 PLATE,PISTON COOLING JET |
16438-19F00-000 |
US $1.69 |
||
|
17
|
17
09106-06075-000 BOLT(6X12)Bolt (6x12); |
09106-06075-000 |
from US $3.04 |
||
|
18
|
18
09280-04004-000 O RING(D:1.2,ID:4)O ring, oil gallery jet O ring (d:1.2,id:4); |
09280-04004-000 |
from US $1.82 |
||
|
19
|
19
09493-26007-000 JET(13)Jet (130) Jet (13); |
09493-26007-000 |
US $10.52 |
||
|
20
|
20
01550-0812A-000 Bolt |
01550-0812A-000 |
from US $0.91 |
||
|
21
|
21
09168-08016-000 GASKET(8.2X14X1)Gasket (8.2x14x1.0) Gasket (8.2x14x1); |
09168-08016-000 |
from US $1.22 |
||
|
22
|
22
09248-16012-000 PLUG(16X8)Plug, t.d.c check Plug; |
09248-16012-000 |
from US $2.72 |
||
|
23
|
23
09168-16002-000 GASKET(16X22X2)Gasket (16x22x2); |
09168-16002-000 |
from US $1.31 |
||
|
24
|
24
11323-19F00-000 PLATE,OIL SEPARATORPlate, oil separator; |
11323-19F00-000 |
US $1.99 |
||
|
25
|
25
01547-0612A-000 BoltBolt, push rod guide |
01547-0612A-000 |
from US $0.76 |
||
|
26
|
26
01547-0610A-000 Bolt |
01547-0610A-000 |
from US $0.80 |
||
|
27
|
27
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) Gasket (5.8x13x1.2); |
09168-06023-000 |
from US $1.52 |
||
|
28
|
28
09247-12006-000 PLUG(12X10)Plug (12x10); |
09247-12006-000 |
from US $1.98 |
||
|
29
|
29
09168-12017-000 GASKET(12X17X1)Gasket, drain plug Gasket (12x17x1); |
09168-12017-000 |
from US $1.06 |
||
|
30
|
30
09103-10137-000 BOLT(10X255)Bolt (10x255) Bolt (10x255); |
09103-10137-000 |
from US $16.27 |
||
|
31
|
31
09103-10205-000 BOLT(10X225)Bolt (l:225) Bolt (10x225); |
09103-10205-000 |
from US $22.39 |
||
|
32
|
32
09103-12054-000 BOLT(12X310)Bolt (12x310); |
09103-12054-000 |
from US $29.46 |
||
|
33
|
33
09159-10115-000 NUT |
09159-10115-000 |
from US $2.58 |
||
|
34
|
34
09159-12054-000 NUTNut, pivot |
09159-12054-000 |
from US $8.56 |
||
|
35
|
35
37820-33D10-000 SWITCH ASSY,OIL PRESSURE |
37820-33D10-000 |
US $28.02 |
||
| replacement | |||||
|
35
|
35
37820-33D11-000 SWITCH ASSYOIL PRESSURE |
37820-33D11-000 |
from US $24.32 |
||
|
36
|
36
37822-33D00-000 BOLT,OIL PRESSURE SWITCH |
37822-33D00-000 |
from US $3.19 |
||
|
37
|
37
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire Clamp (l:45); |
09404-06429-000 |
from US $1.52 |
||
