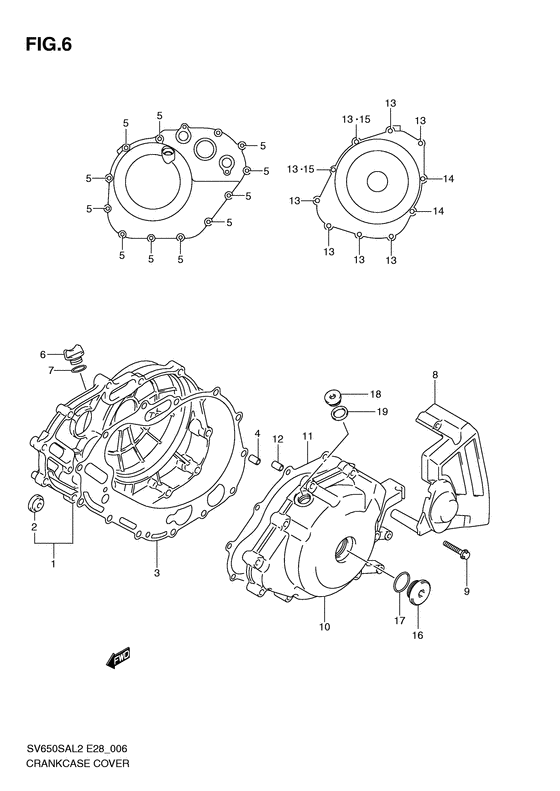

Crankcase cover Diagram Suzuki SV650
- Year
- 2012
- Model code
- SV650SAL2(E28) L2
- Sales region
- Canada
- Engine Capacity
- 650
- Model
- SV650 (ABS)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11340-17G00-000 Cover,clutch |
11340-17G00-000 |
from US $270.20 |
||
|
2
|
2
11971-33210-000 LENS,OIL LEVEL CHECKLens, oil check Lens, oil level check; |
11971-33210-000 |
from US $11.97 |
||
|
3
|
3
11482-44H00-000 GASKET,CLUTCH COVERGasket, clutch cover (na); |
11482-44H00-000 |
from US $13.07 |
||
|
4
|
4
04211-09149-000 PINDowel pin |
04211-09149-000 |
from US $0.91 |
||
|
5
|
5
09103-06214-000 BOLT(6X35)Bolt (6x35) Bolt (6x35); |
09103-06214-000 |
from US $1.08 |
||
|
6
|
6
11971-25D00-000 PLUG,ENGINE OIL FILLERPlug, eng oil filler Plug, oil filler; |
11971-25D00-000 |
from US $2.46 |
||
|
7
|
7
09280-17003-000 O RING(D:3.1,ID:16.8)O ring, oil filler cap O ring (d:3.1,id:16.8); |
09280-17003-000 |
from US $1.53 |
||
|
8
|
8
11361-17G00-000 COVER,ENGINE SPROCKET |
11361-17G00-000 |
from US $55.94 |
||
|
9
|
9
09103-06224-000 BOLT(6X45)Bolt (6x45); |
09103-06224-000 |
from US $4.11 |
||
|
10
|
10
11351-19F50-000 COVER,MAGNETO |
11351-19F50-000 |
from US $218.96 |
||
|
11
|
11
11483-19F00-000 GASKET,MAGNETO COVERGasket, magneto cover (na); |
11483-19F00-000 |
from US $8.66 |
||
|
12
|
12
04211-09149-000 PINDowel pin |
04211-09149-000 |
from US $0.91 |
||
|
13
|
13
09103-06214-000 BOLT(6X35)Bolt (6x35) Bolt (6x35); |
09103-06214-000 |
from US $1.08 |
||
|
14
|
14
09103-06239-000 BOLT(6X65)Bolt (6x65) Bolt (6x65); |
09103-06239-000 |
from US $1.40 |
||
|
15
|
15
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) Gasket (5.8x13x1.2); |
09168-06023-000 |
from US $1.52 |
||
|
16
|
16
09259-26011-000 PLUG(26X9) |
09259-26011-000 |
from US $7.20 |
||
|
17
|
17
09280-22008-000 O RING(D:3.1,ID:22.7)O ring (d:3.1,id:22.7); |
09280-22008-000 |
from US $1.67 |
||
|
18
|
18
09248-16012-000 PLUG(16X8)Plug, t.d.c check Plug; |
09248-16012-000 |
from US $2.72 |
||
|
19
|
19
09168-16002-000 GASKET(16X22X2)Gasket (16x22x2); |
09168-16002-000 |
from US $1.31 |
