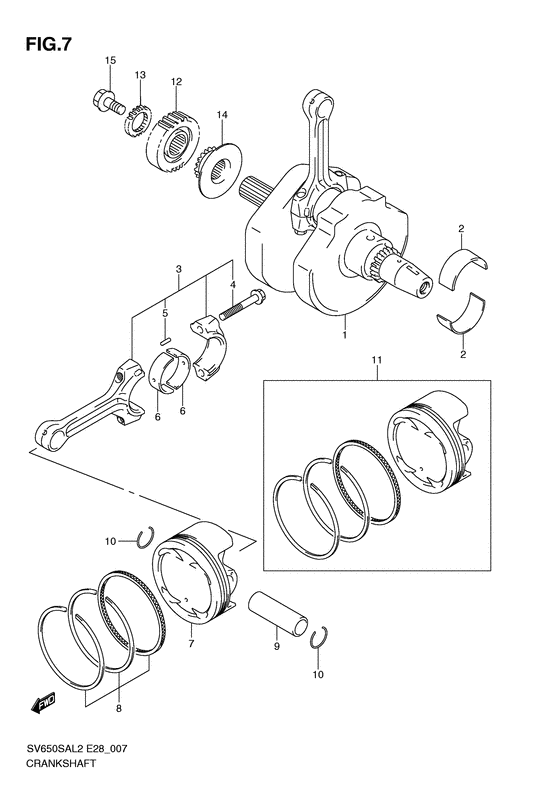

Crankshaft Diagram Suzuki SV650
- Year
- 2012
- Model code
- SV650SAL2(E28) L2
- Sales region
- Canada
- Engine Capacity
- 650
- Model
- SV650 (ABS)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12220-17G00-000 CRANKSHAFT |
12220-17G00-000 |
from US $1,574.40 |
||
|
2
|
2
12229-44H00-0A0
Bearing,crankshaft
Bearing, crankshaft (green); |
12229-44H00-0A0 |
— | ||
| replacement | |||||
|
2
|
2
12229-44H10-0A0 Bearing,crankshaftBearing, crankshaft (green); |
12229-44H10-0A0 |
from US $10.74 |
||
|
2
|
2
12229-44H00-0B0
Bearing,crankshaft
Bearing, crankshaft (black); |
12229-44H00-0B0 |
— | ||
| replacement | |||||
|
2
|
2
12229-44H10-0B0 Bearing,crankshaftBearing, crankshaft (black); |
12229-44H10-0B0 |
from US $10.74 |
||
|
2
|
2
12229-44H00-0C0
Bearing,crankshaft
Bearing, crankshaft (brown); |
12229-44H00-0C0 |
— | ||
| replacement | |||||
|
2
|
2
12229-44H10-0C0 Bearing,crankshaftBearing, crankshaft (brown); |
12229-44H10-0C0 |
from US $10.74 |
||
|
3
|
3
12160-17G10-000 CONNECTING ROD ASSYConnrod assy; |
12160-17G10-000 |
from US $230.56 |
||
|
4
|
4
12163-24F10-000 BOLT,CONNECTING RODBolt, connrod; |
12163-24F10-000 |
from US $4.40 |
||
|
5
|
5
04221-04089-000 PINPin, bal sprocket driven Pin; |
04221-04089-000 |
from US $0.76 |
||
|
6
|
6
12164-46E01-0A0 BEARING,CRANK PIN (Green)Bearing, crank pin (green); |
12164-46E01-0A0 |
from US $14.40 |
||
|
6
|
6
12164-46E01-0B0 Bearing, crank pin (black)Bearing, crank pin (black); |
12164-46E01-0B0 |
from US $14.40 |
||
|
6
|
6
12164-46E01-0C0 Bearing, crank pin (brown)Bearing, crank pin (brown); |
12164-46E01-0C0 |
from US $14.40 |
||
|
6
|
6
12164-46E01-0D0 Bearing, crank pin (yellow)Bearing, crank pin (yellow); |
12164-46E01-0D0 |
from US $14.40 |
||
|
7
|
7
12111-20F10-0F0 PISTON |
12111-20F10-0F0 |
from US $132 |
||
|
8
|
8
12140-17G20-000 RING SET,PISTON |
12140-17G20-000 |
from US $76.76 |
||
|
9
|
9
12151-05A00-000 PIN,PISTON |
12151-05A00-000 |
from US $11.25 |
||
|
10
|
10
09381-20004-000 CIRCLIPSnap ring Circlip; |
09381-20004-000 |
from US $1.52 |
||
|
11
|
11
12100-17G20-050 PISTON SET(OS:0.5)Piston set (os:0.5); Opt |
12100-17G20-050 |
US $249.56 |
||
|
12
|
12
21111-20F10-000 GEAR,PRIMARY DRIVEGear, primary drive; |
21111-20F10-000 |
US $119.20 |
||
|
13
|
13
17451-17G00-000 GEAR,WATER PUMP DRIVEGear, water pump drive; |
17451-17G00-000 |
from US $18.95 |
||
|
14
|
14
12731-19F00-000 SPROCKET,CAM CHAIN DRIVE |
12731-19F00-000 |
from US $36.06 |
||
|
15
|
15
09103-10338-000 BOLT(10X19)Bolt (10x19); |
09103-10338-000 |
from US $10.35 |
||
