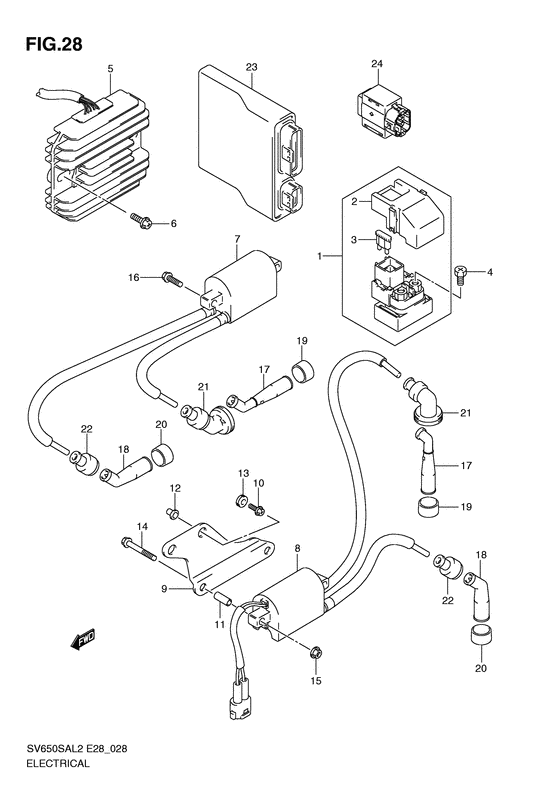

Electrical Diagram Suzuki SV650
- Year
- 2012
- Model code
- SV650SAL2(E28) L2
- Sales region
- Canada
- Engine Capacity
- 650
- Model
- SV650 (ABS)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31800-06G00-000
RELAY ASSY,STARTING MOTOR
Relay assy, starting motor; |
31800-06G00-000 |
— | ||
| replacement | |||||
|
1
|
1
31800-06G01-000 Relay Assy,starting MotorRelay assy, starting motor; |
31800-06G01-000 |
US $95.42 |
||
|
2
|
2
31861-47E00-000 COVERCover, relay assy; |
31861-47E00-000 |
from US $7.91 |
||
|
3
|
3
09481-30101-000 FUSE(30A)Fuse (30a); |
09481-30101-000 |
from US $1.22 |
||
|
4
|
4
09128-06013-000 SCREW(6X8)Screw Screw (6x8); |
09128-06013-000 |
from US $1.94 |
||
|
5
|
5
32800-16G01-000
Rectifier Assy
|
32800-16G01-000 |
— | ||
| replacement | |||||
|
5
|
5
32800-16G02-000 Rectifier Assy |
32800-16G02-000 |
from US $235.52 |
||
|
6
|
6
02162-0620B-000 SCREWBolt, rectifier |
02162-0620B-000 |
from US $3.23 |
||
|
7
|
7
33410-17GA0-000
COIL ASSY,IGNITION FR
Coil assy, ignition front; |
33410-17GA0-000 |
— | ||
| replacements | |||||
|
7
|
7
33410-17GA1-000
COIL ASSY,IGUNITION FR
Coil assy, ignition front; |
33410-17GA1-000 |
— | ||
|
7
|
7
33410-17GA2-000 Coil Assy,igunition FrCoil assy, ignition front; |
33410-17GA2-000 |
US $111.87 |
||
|
8
|
8
33420-17GA0-000
COIL ASSY,IGNITION RR
Coil assy, ignition rear; |
33420-17GA0-000 |
— | ||
| replacement | |||||
|
8
|
8
33420-17GA1-000 COIL ASSY,IGUNITION RRCoil assy, ignition rear; |
33420-17GA1-000 |
US $93.10 |
||
|
9
|
9
33424-17GA0-000 BRACKET,IGNITION COIL RR |
33424-17GA0-000 |
from US $7.69 |
||
|
10
|
10
09116-06130-000 BOLT(6X16)Bolt, air cleaner front Bolt (6x16); |
09116-06130-000 |
from US $0.98 |
||
|
11
|
11
09180-06195-000 SPACER(6.4X10X18)Spacer (6.4x10x18) Spacer (6.4x10x18); |
09180-06195-000 |
from US $1.76 |
||
|
12
|
12
09180-06325-000 SPACER(6.2X8.4X6.9)Spacer (6.2x8.4x6.9); |
09180-06325-000 |
from US $1.82 |
||
|
13
|
13
09320-06017-000
CUSHION
|
09320-06017-000 |
— | ||
| replacement | |||||
|
13
|
13
09320-08516-000 Cushion(8X18X5.8) |
09320-08516-000 |
from US $3.35 |
||
|
14
|
14
01547-0640A-000 Bolt |
01547-0640A-000 |
from US $0.96 |
||
|
15
|
15
08316-1006A-000 NUT |
08316-1006A-000 |
from US $0.80 |
||
|
16
|
16
01547-0625A-000 BoltBolt, fr brake hose no.2 |
01547-0625A-000 |
from US $0.91 |
||
|
17
|
17
33510-17G00-000 CAP ASSY,SPARK PLUGCap assy, spark plug (center); |
33510-17G00-000 |
from US $23.56 |
||
|
18
|
18
33510-20E00-000 CAP ASSY,SPARK PLUGCap assy, spark plug (side); |
33510-20E00-000 |
from US $21.12 |
||
|
19
|
19
33541-23E10-000 SEAL,SPARK PLUGSeal, spark plug cap (center); |
33541-23E10-000 |
from US $3.95 |
||
|
20
|
20
33541-47D00-000 SEAL,SPARK PLUGSeal, spark plug Seal, spark plug cap (side); |
33541-47D00-000 |
from US $4.26 |
||
|
21
|
21
33542-17G01-000 SEAL,HIGH TENSION CORD CTRSeal, high tension cord Seal, high tension (center); |
33542-17G01-000 |
from US $5.10 |
||
|
22
|
22
33542-38B00-000 SEAL,HIGH TENSION CORDSeal, hightension cord Seal, spark plug cap (side); |
33542-38B00-000 |
from US $1.52 |
||
|
23
|
23
32920-17GD1-000
CONTROL UNIT,FI
|
32920-17GD1-000 |
— | ||
|
24
|
24
33960-06G10-000 SENSOR ASSY,FUEL CUT |
33960-06G10-000 |
from US $60.04 |
||
