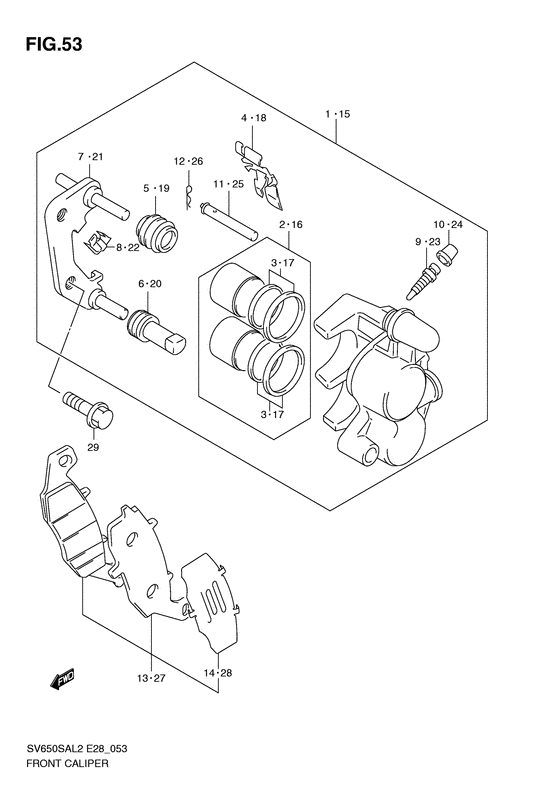

Front caliper Diagram Suzuki SV650
- Year
- 2012
- Model code
- SV650SAL2(E28) L2
- Sales region
- Canada
- Engine Capacity
- 650
- Model
- SV650 (ABS)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59100-33DJ0-999 CALIPER ASSY,FR,R |
59100-33DJ0-999 |
from US $341.44 |
||
|
2
|
2
59300-01820-000 Piston set |
59300-01820-000 |
from US $43.06 |
||
|
3
|
3
59100-04851-000 SEAL SET,PISTON |
59100-04851-000 |
from US $11.25 |
||
|
4
|
4
59115-33D00-000 SPRING,PAD,RSpring rh Spring pad, rh; |
59115-33D00-000 |
from US $5.47 |
||
|
5
|
5
59112-44B00-000 BOOT,AXLEBoot, axle; |
59112-44B00-000 |
from US $5.62 |
||
|
6
|
6
59313-36500-000 INSULATOR,AXLEInsulator, axle; |
59313-36500-000 |
from US $4.10 |
||
|
7
|
7
59150-33D01-000 CARRIER,CALIPER,RCarrier, caliper, r Carrier, caliper rh; |
59150-33D01-000 |
from US $51.04 |
||
|
8
|
8
59116-33D00-000 GUIDE,PADGuide, pad; |
59116-33D00-000 |
from US $3.04 |
||
|
9
|
9
59121-18410-000 BLEEDERBleeder; |
59121-18410-000 |
from US $7.14 |
||
|
10
|
10
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug Cap, bleeder plug; |
55156-66310-000 |
from US $1.98 |
||
|
11
|
11
59141-44B01-000 PIN,PADPin, pad; |
59141-44B01-000 |
from US $6.34 |
||
|
12
|
12
69142-45000-000 CLIP,PAD PINClip Clip; |
69142-45000-000 |
from US $2.58 |
||
|
13
|
13
59102-33860-000 PAD & SHIM SET |
59102-33860-000 |
from US $75.92 |
||
|
14
|
14
59171-33D00-000 SHIM,PADShim, pad; |
59171-33D00-000 |
from US $7.29 |
||
|
15
|
15
59300-33DJ0-999 CALIPER ASSY,FR,L |
59300-33DJ0-999 |
from US $368 |
||
|
16
|
16
59300-01820-000 Piston set |
59300-01820-000 |
from US $43.06 |
||
|
17
|
17
59100-04851-000 SEAL SET,PISTON |
59100-04851-000 |
from US $11.25 |
||
|
18
|
18
59315-33D00-000 SPRING,PAD,LSpring lh Spring pad, lh; |
59315-33D00-000 |
from US $7.60 |
||
|
19
|
19
59112-44B00-000 BOOT,AXLEBoot ,axle; |
59112-44B00-000 |
from US $5.62 |
||
|
20
|
20
59313-36500-000 INSULATOR,AXLEInsulator, axle; |
59313-36500-000 |
from US $4.10 |
||
|
21
|
21
59350-33D01-000 CARRIER,CALIPER,LCarrier, caliper lh; |
59350-33D01-000 |
from US $52.26 |
||
|
22
|
22
59116-33D00-000 GUIDE,PADGuide, pad; |
59116-33D00-000 |
from US $3.04 |
||
|
23
|
23
59121-18410-000 BLEEDERBleeder; |
59121-18410-000 |
from US $7.14 |
||
|
24
|
24
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug Cap, bleeder plug; |
55156-66310-000 |
from US $1.98 |
||
|
25
|
25
59141-44B01-000 PIN,PADPin, pad; |
59141-44B01-000 |
from US $6.34 |
||
|
26
|
26
69142-45000-000 CLIP,PAD PINClip Clip; |
69142-45000-000 |
from US $2.58 |
||
|
27
|
27
59302-33830-000 PAD & SHIM SET |
59302-33830-000 |
from US $72.68 |
||
|
28
|
28
59171-33D00-000 SHIM,PADShim, pad; |
59171-33D00-000 |
from US $7.29 |
||
|
29
|
29
01550-1025A-000 BoltBolt, drive gear |
01550-1025A-000 |
from US $1.06 |
