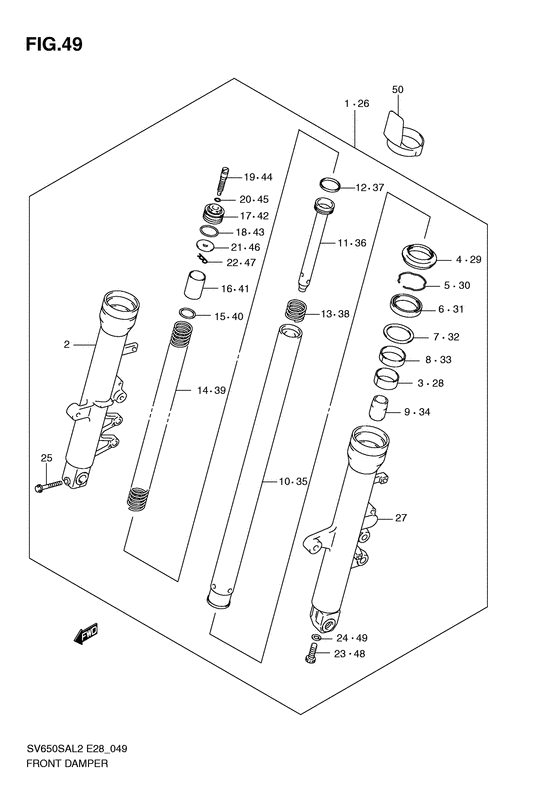

Front damper Diagram Suzuki SV650
- Year
- 2012
- Model code
- SV650SAL2(E28) L2
- Sales region
- Canada
- Engine Capacity
- 650
- Model
- SV650 (ABS)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51103-17GB0-000 DAMPER ASSY,FR FORK,R |
51103-17GB0-000 |
from US $753.28 |
||
|
2
|
2
51130-17GB0-000 TUBE,OUTER,R |
51130-17GB0-000 |
from US $401.28 |
||
|
3
|
3
51121-42E00-000 Bush,slider |
51121-42E00-000 |
from US $10.64 |
||
|
4
|
4
51173-01H00-000 SEAL,DUST |
51173-01H00-000 |
from US $6.23 |
||
|
5
|
5
51556-38B00-000 CIRCLIP,FORK OIL SEALRing, oil seal stopper Ring, stopper; |
51556-38B00-000 |
from US $1.98 |
||
|
6
|
6
51153-01H00-000 SEAL,OILSeal, oil Seal, oil; |
51153-01H00-000 |
from US $24.32 |
||
|
7
|
7
51168-17G80-000 SPACER,SEAL |
51168-17G80-000 |
from US $4.12 |
||
|
8
|
8
51152-17G00-000 Bush,guide |
51152-17G00-000 |
from US $14.08 |
||
|
9
|
9
51195-48B31-000 PIECE,OIL LOCKPiece, oil lock; |
51195-48B31-000 |
from US $11.04 |
||
|
10
|
10
51110-17G80-000 TUBE,INNER |
51110-17G80-000 |
from US $358.80 |
||
|
11
|
11
51146-17G80-000 CYLINDER |
51146-17G80-000 |
from US $53.73 |
||
|
12
|
12
51196-12C00-000 RING,PISTONRing, piston Ring, piston; |
51196-12C00-000 |
from US $4.40 |
||
|
13
|
13
51177-12C00-000 SPRING,REBOUND |
51177-12C00-000 |
US $5.23 |
||
|
14
|
14
51171-17G80-000 SPRING,FR |
51171-17G80-000 |
US $61.09 |
||
|
15
|
15
51192-19C00-000 JOINT,SPRINGJoint, spring; |
51192-19C00-000 |
from US $1.82 |
||
|
16
|
16
51176-12C10-000 COLLAR,SPRING(32.9X34X50)Collar, spring |
51176-12C10-000 |
from US $11.84 |
||
|
17
|
17
51189-12C00-000 BOLT,FORKBolt, fork |
51189-12C00-000 |
from US $36.80 |
||
|
18
|
18
51117-12C00-000 O RINGO ring O ring; |
51117-12C00-000 |
from US $1.82 |
||
|
19
|
19
51185-17G00-000 ADJUSTER BOLT,SPRING |
51185-17G00-000 |
US $24.29 |
||
|
20
|
20
09280-09005-000 O RING(D:1.9,ID:8.6)O ring (d:1.9,id:8.6); |
09280-09005-000 |
from US $1.67 |
||
|
21
|
21
51186-12C00-000 SEAT,SPRING |
51186-12C00-000 |
from US $2.16 |
||
|
22
|
22
51188-32B00-000 PIN,SEAT SPRING |
51188-32B00-000 |
US $2.88 |
||
|
23
|
23
51147-48130-000 BOLT(8X27)Bolt, center |
51147-48130-000 |
from US $2.29 |
||
|
24
|
24
51148-36011-000 GASKETGasket |
51148-36011-000 |
from US $1.98 |
||
|
25
|
25
51328-03FK0-000 BOLT(8X40) |
51328-03FK0-000 |
from US $1.60 |
||
|
26
|
26
51104-17GB0-000 DAMPER ASSY,FR FORK,L |
51104-17GB0-000 |
US $753.28 |
||
|
27
|
27
51140-17GB0-000 TUBE,OUTER,L |
51140-17GB0-000 |
from US $401.28 |
||
|
28
|
28
51121-42E00-000 Bush,slider |
51121-42E00-000 |
from US $10.64 |
||
|
29
|
29
51173-01H00-000 SEAL,DUST |
51173-01H00-000 |
from US $6.23 |
||
|
30
|
30
51556-38B00-000 CIRCLIP,FORK OIL SEALRing, oil seal stopper Ring, stopper; |
51556-38B00-000 |
from US $1.98 |
||
|
31
|
31
51153-01H00-000 SEAL,OILSeal, oil Seal, oil; |
51153-01H00-000 |
from US $24.32 |
||
|
32
|
32
51168-17G80-000 SPACER,SEAL |
51168-17G80-000 |
from US $4.12 |
||
|
33
|
33
51152-17G00-000 Bush,guide |
51152-17G00-000 |
from US $14.08 |
||
|
34
|
34
51195-48B31-000 PIECE,OIL LOCKPiece, oil lock; |
51195-48B31-000 |
from US $11.04 |
||
|
35
|
35
51110-17G80-000 TUBE,INNER |
51110-17G80-000 |
from US $358.80 |
||
|
36
|
36
51146-17G80-000 CYLINDER |
51146-17G80-000 |
from US $53.73 |
||
|
37
|
37
51196-12C00-000 RING,PISTONRing, piston Ring, piston; |
51196-12C00-000 |
from US $4.40 |
||
|
38
|
38
51177-12C00-000 SPRING,REBOUND |
51177-12C00-000 |
US $5.23 |
||
|
39
|
39
51171-17G80-000 SPRING,FR |
51171-17G80-000 |
US $61.09 |
||
|
40
|
40
51192-19C00-000 JOINT,SPRINGJoint, spring; |
51192-19C00-000 |
from US $1.82 |
||
|
41
|
41
51176-12C10-000 COLLAR,SPRING(32.9X34X50)Collar, spring |
51176-12C10-000 |
from US $11.84 |
||
|
42
|
42
51189-12C00-000 BOLT,FORKBolt, fork |
51189-12C00-000 |
from US $36.80 |
||
|
43
|
43
51117-12C00-000 O RINGO ring O ring; |
51117-12C00-000 |
from US $1.82 |
||
|
44
|
44
51185-17G00-000 ADJUSTER BOLT,SPRING |
51185-17G00-000 |
US $24.29 |
||
|
45
|
45
09280-09005-000 O RING(D:1.9,ID:8.6)O ring (d:1.9,id:8.6); |
09280-09005-000 |
from US $1.67 |
||
|
46
|
46
51186-12C00-000 SEAT,SPRING |
51186-12C00-000 |
from US $2.16 |
||
|
47
|
47
51188-32B00-000 PIN,SEAT SPRING |
51188-32B00-000 |
US $2.88 |
||
|
48
|
48
51147-48130-000 BOLT(8X27)Bolt, center |
51147-48130-000 |
from US $2.29 |
||
|
49
|
49
51148-36011-000 GASKETGasket |
51148-36011-000 |
from US $1.98 |
||
|
50
|
50
51201-32F00-000 PROTECTOR |
51201-32F00-000 |
from US $8.21 |
