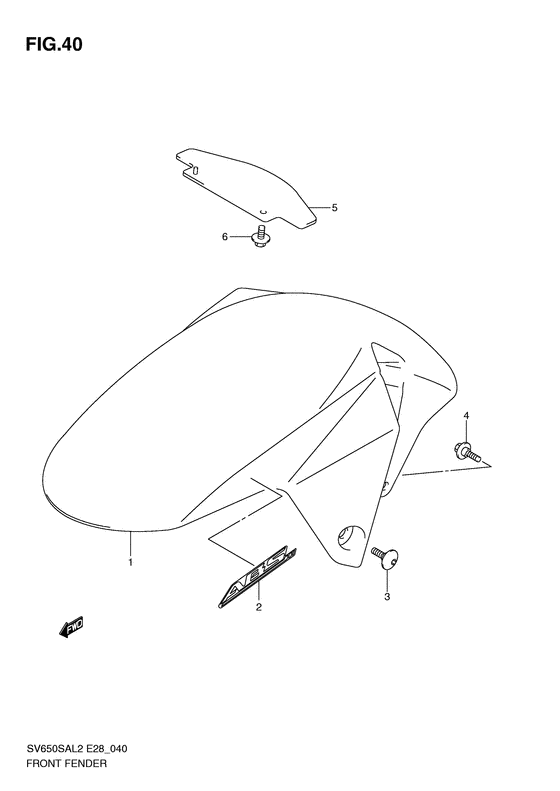

Front fender Diagram Suzuki SV650
- Year
- 2012
- Model code
- SV650SAL2(E28) L2
- Sales region
- Canada
- Engine Capacity
- 650
- Model
- SV650 (ABS)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53111-16G01-YAY FENDER,FRFender, front (black); |
53111-16G01-YAY |
from US $164.86 |
||
|
1
|
1
53111-16G01-YBD FENDER,FRFender, front (white); |
53111-16G01-YBD |
US $137.26 |
||
|
2
|
2
68151-44G00-1ZY
EMBLEM,ABS
Emblem, "abs" (gray); |
68151-44G00-1ZY |
— | ||
| replacement | |||||
|
2
|
2
68151-44G01-1ZY Emblem,abs(Gray)Emblem, "abs" (gray); |
68151-44G01-1ZY |
from US $10.24 |
||
|
3
|
3
09139-06131-000 SCREW(6X16)Screw (6x16); |
09139-06131-000 |
from US $1.82 |
||
|
4
|
4
09122-86005-000 SCREW(6X16)Bolt, rear Screw (6x16); |
09122-86005-000 |
from US $1.52 |
||
|
5
|
5
53182-16G00-000 FENDER,FR UPPER |
53182-16G00-000 |
from US $9.83 |
||
|
6
|
6
09111-06096-000 BOLT(6X12)Bolt (6x12); |
09111-06096-000 |
from US $4.13 |
||
