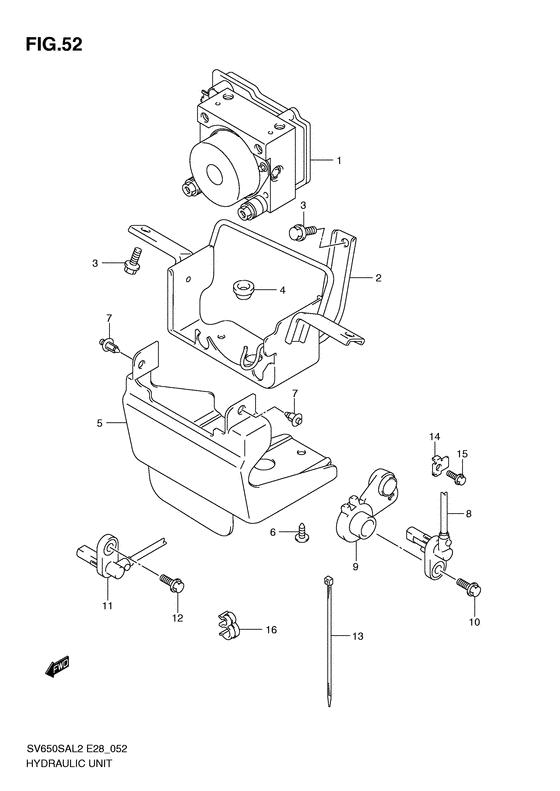

Hydraulic unit Diagram Suzuki SV650
- Year
- 2012
- Model code
- SV650SAL2(E28) L2
- Sales region
- Canada
- Engine Capacity
- 650
- Model
- SV650 (ABS)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55610-17G00-000 UNIT ASSY,HYDRAULIC ABS |
55610-17G00-000 |
from US $2,236 |
||
|
2
|
2
55660-17G00-000 HOLDER,HYDRAULIC UNIT ABS |
55660-17G00-000 |
US $50.78 |
||
|
3
|
3
01550-0616A-000 Bolt |
01550-0616A-000 |
from US $0.76 |
||
|
4
|
4
56121-58J00-000 DAMPER,ACTUATOR MOUNTRubber, unit mounting; |
56121-58J00-000 |
US $3.39 |
||
|
5
|
5
55667-17G10-000 COVER,HYDR ABS UNIT |
55667-17G10-000 |
US $30.36 |
||
|
6
|
6
09111-06065-000 BOLT(6X16)Bolt, protector Bolt (6x16); |
09111-06065-000 |
from US $4.17 |
||
|
7
|
7
09409-07332-000 CLIP |
09409-07332-000 |
from US $1.44 |
||
|
8
|
8
55710-17G00-000 SENSOR,FR WHEEL ABS |
55710-17G00-000 |
from US $184 |
||
|
9
|
9
55720-27G00-000 BRACKET,SPEED SENSOR FRBracket, sped sensor fr; |
55720-27G00-000 |
from US $101.20 |
||
|
10
|
10
01550-0816A-000 BoltBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
11
|
11
65710-17G00-000 SENSOR,RR WHEEL ABS |
65710-17G00-000 |
from US $176.64 |
||
|
12
|
12
01550-0816A-000 BoltBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
13
|
13
09407-14407-000 CLAMP(L:145)Band Clamp (l:145); |
09407-14407-000 |
from US $2.08 |
||
|
14
|
14
34938-14F00-000 GUIDE,SENSOR LEADGuide, sensor lead; |
34938-14F00-000 |
from US $2.82 |
||
|
15
|
15
01547-0612B-000 Bolt |
01547-0612B-000 |
from US $0.77 |
||
| replacement | |||||
|
15
|
15
01547-0616B-000 Bolt |
01547-0616B-000 |
from US $0.76 |
||
|
16
|
16
09408-00242-000 CLAMP |
09408-00242-000 |
from US $2.21 |
||
