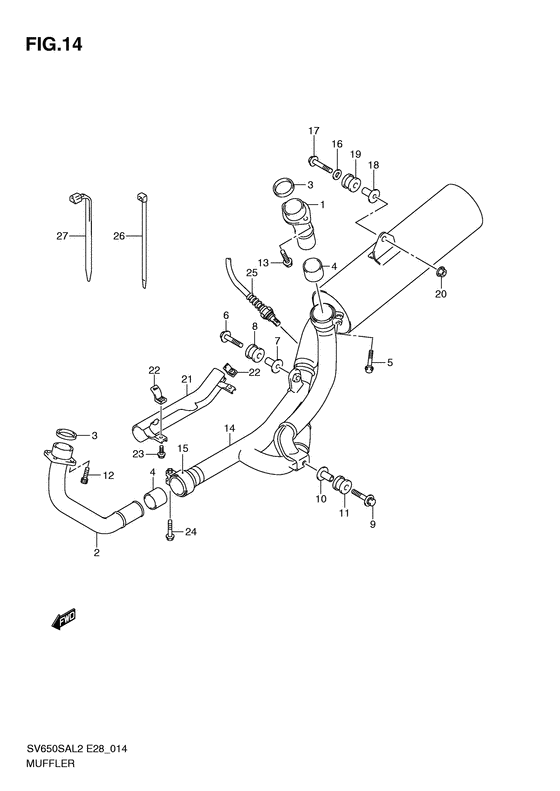

Muffler Diagram Suzuki SV650
- Year
- 2012
- Model code
- SV650SAL2(E28) L2
- Sales region
- Canada
- Engine Capacity
- 650
- Model
- SV650 (ABS)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14150-17G00-000 PIPE,EXHAUST RR |
14150-17G00-000 |
from US $83.54 |
||
|
2
|
2
14160-17G00-000 PIPE,EXHAUST FR |
14160-17G00-000 |
from US $281.96 |
||
|
3
|
3
14181-22D01-000 GASKET,EXHAUST PIPEGasket, exhaust pipe; |
14181-22D01-000 |
from US $6.08 |
||
|
4
|
4
14771-32E00-000 CONNECTOR,MUFFLERConnector, muffler Connector, muffler; |
14771-32E00-000 |
from US $18.24 |
||
|
5
|
5
07120-0835B-000 Bolt |
07120-0835B-000 |
from US $1.37 |
||
|
6
|
6
09118-08152-A05 BOLT(8X45)Bolt (8x45); Rh |
09118-08152-A05 |
from US $2.08 |
||
|
7
|
7
09180-08152-000 SPACER(8.6X12X24.2)Spacer, muffler support Spacer (8.6x12x24.2); Rh |
09180-08152-000 |
from US $2.74 |
||
|
8
|
8
09320-12048-000 CUSHIONRh |
09320-12048-000 |
from US $4.96 |
||
|
9
|
9
09118-08152-A05 BOLT(8X45)Bolt (8x45); Lh |
09118-08152-A05 |
from US $2.08 |
||
|
10
|
10
09180-08152-000 SPACER(8.6X12X24.2)Spacer, muffler support Spacer (8.6x12x24.2); Lh |
09180-08152-000 |
from US $2.74 |
||
|
11
|
11
09320-12048-000 CUSHIONLh |
09320-12048-000 |
from US $4.96 |
||
|
12
|
12
09106-08165-000 BOLT(8X25)Bolt, exhaust pipe Bolt (8x25); |
09106-08165-000 |
from US $2.28 |
||
|
13
|
13
07130-0825B-000 Bolt |
07130-0825B-000 |
from US $1.28 |
||
|
14
|
14
14305-17G60-H01 MUFFLER |
14305-17G60-H01 |
from US $1,857.60 |
||
|
15
|
15
14459-19F10-000 CLAMP,MUFFLER CONNECTOR |
14459-19F10-000 |
from US $11.40 |
||
|
16
|
16
09160-08142-000 WASHER(8.5X28X1.5)Washer (8.5x28x1.5); |
09160-08142-000 |
from US $4.22 |
||
|
17
|
17
09103-08358-000 BOLT(8X45)Bolt, muffler support Bolt (8x45); |
09103-08358-000 |
from US $1.44 |
||
|
18
|
18
09180-08152-000 SPACER(8.6X12X24.2)Spacer, muffler support Spacer (8.6x12x24.2); |
09180-08152-000 |
from US $2.74 |
||
|
19
|
19
09320-12048-000 CUSHION |
09320-12048-000 |
from US $4.96 |
||
|
20
|
20
08361-2508A-000 NUT |
08361-2508A-000 |
from US $0.96 |
||
|
21
|
21
14770-17G00-000 COVER,EXHAUST TT |
14770-17G00-000 |
US $68.08 |
||
|
22
|
22
14185-17G00-000 CLAMP,EXHAUST COVER |
14185-17G00-000 |
from US $5.97 |
||
|
23
|
23
09106-06084-000 BOLT(6X20)Bolt (6x20); |
09106-06084-000 |
from US $3.22 |
||
|
24
|
24
09103-08365-000 BOLT(8X35)Bolt (8x35); |
09103-08365-000 |
from US $1.60 |
||
|
25
|
25
18213-17G01-000 SENSOR,OXYGEN |
18213-17G01-000 |
from US $445.94 |
||
|
26
|
26
09407-10404-000 CLAMP(L:100)Clamp, battery lead (l:96) Clamp (l:100); |
09407-10404-000 |
from US $3.96 |
||
|
27
|
27
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap Clamp (l:125); |
09407-14403-000 |
from US $1.08 |
