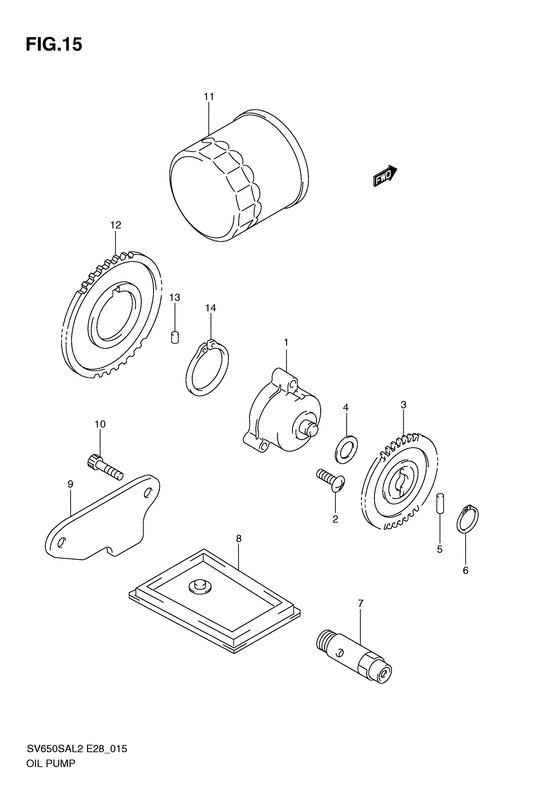

Oil pump Diagram Suzuki SV650
- Year
- 2012
- Model code
- SV650SAL2(E28) L2
- Sales region
- Canada
- Engine Capacity
- 650
- Model
- SV650 (ABS)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16400-20F00-000 PUMP ASSY,ENGINE OIL |
16400-20F00-000 |
from US $103.84 |
||
|
2
|
2
07130-0625A-000 BoltBolt |
07130-0625A-000 |
from US $0.91 |
||
|
3
|
3
16331-19F00-000 GEAR,ENG OIL PUMP DRIVENGear, eng oil pump driven (nt:34) Nt:34 |
16331-19F00-000 |
from US $22 |
||
|
4
|
4
09181-10158-000 SHIM(10X18X0.5)Washer, pump driven gear Shim (10x18x0.5); |
09181-10158-000 |
from US $1.92 |
||
|
5
|
5
09261-04001-000 PIN(4X18.5)Pin (4x18.5); |
09261-04001-000 |
from US $0.98 |
||
|
6
|
6
08331-3110A-000
Circlip
|
08331-3110A-000 |
— | ||
| replacement | |||||
|
6
|
6
08331-31109-000 CIRCLIP |
08331-31109-000 |
from US $1.12 |
||
|
7
|
7
16440-17C20-000 VALVE ASSY,OIL RELIEF |
16440-17C20-000 |
from US $33.60 |
||
|
8
|
8
16520-32E00-000
STRAINER,ENGINE OIL
Strainer, engine oil; |
16520-32E00-000 |
— | ||
| replacement | |||||
|
8
|
8
16520-32E01-000 Strainer Comp,eng OilStrainer, engine oil; |
16520-32E01-000 |
from US $12.18 |
||
|
9
|
9
16523-17G00-000 CAP,OIL STRAINER |
16523-17G00-000 |
US $6.69 |
||
|
10
|
10
07130-0612A-000 Bolt |
07130-0612A-000 |
from US $0.96 |
||
|
11
|
11
16510-07J00-000 FILTER ASSY,ENGINE OILFilter assy, engine oil; |
16510-07J00-000 |
US $17.46 |
||
| replacement | |||||
|
11
|
11
16510-07J10-000 FILTER ASSY,ENGINE OILFilter assy, engine oil; |
16510-07J10-000 |
from US $14.78 |
||
|
12
|
12
16321-19F00-000 GEAR,ENG OIL PUMP DRIVE |
16321-19F00-000 |
from US $59.84 |
||
|
13
|
13
09261-06002-000 PIN(6X6)Pin (6x6); |
09261-06002-000 |
from US $0.91 |
||
|
14
|
14
08331-31383-000 CIRCLIP |
08331-31383-000 |
from US $1.78 |
||
