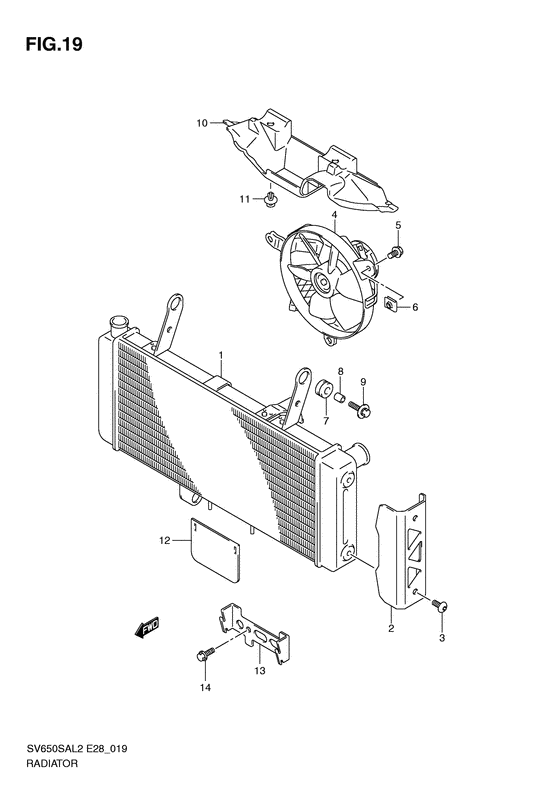

Radiator Diagram Suzuki SV650
- Year
- 2012
- Model code
- SV650SAL2(E28) L2
- Sales region
- Canada
- Engine Capacity
- 650
- Model
- SV650 (ABS)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17710-17G40-000 RADIATOR ASSY,WATER |
17710-17G40-000 |
from US $739.20 |
||
|
2
|
2
17761-17G00-000 COVER,RADIATOR |
17761-17G00-000 |
from US $29.26 |
||
|
3
|
3
09139-06027-000 SCREW(6X12)Screw (6x12); |
09139-06027-000 |
from US $1.82 |
||
|
4
|
4
17800-17G40-000 FAN ASSY,RADIATOR |
17800-17G40-000 |
from US $492.80 |
||
|
5
|
5
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.96 |
||
|
6
|
6
17712-40F00-000 NUT,FAN ASSY |
17712-40F00-000 |
from US $4.40 |
||
|
7
|
7
09320-10051-000 CUSHION |
09320-10051-000 |
from US $1.67 |
||
|
8
|
8
09180-06290-000 SPACER(6.5X10X12)Spacer, 6.5x10x12 Spacer (6.5x10x12); |
09180-06290-000 |
from US $1.92 |
||
|
9
|
9
09118-06097-000 BOLT(6X25)Bolt (6x25); |
09118-06097-000 |
from US $0.91 |
||
|
10
|
10
17771-17G11-000 SHIELD,RADIATOR HEAT |
17771-17G11-000 |
from US $13.76 |
||
|
11
|
11
09409-06313-000 CLIP |
09409-06313-000 |
from US $1.04 |
||
|
12
|
12
17781-17G00-000 RUBBER,RADIATOR UNDER |
17781-17G00-000 |
from US $5.10 |
||
|
13
|
13
17741-17G00-000 BRACKET,RADIATOR UNDER RUBBER |
17741-17G00-000 |
from US $4.93 |
||
|
14
|
14
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.96 |
