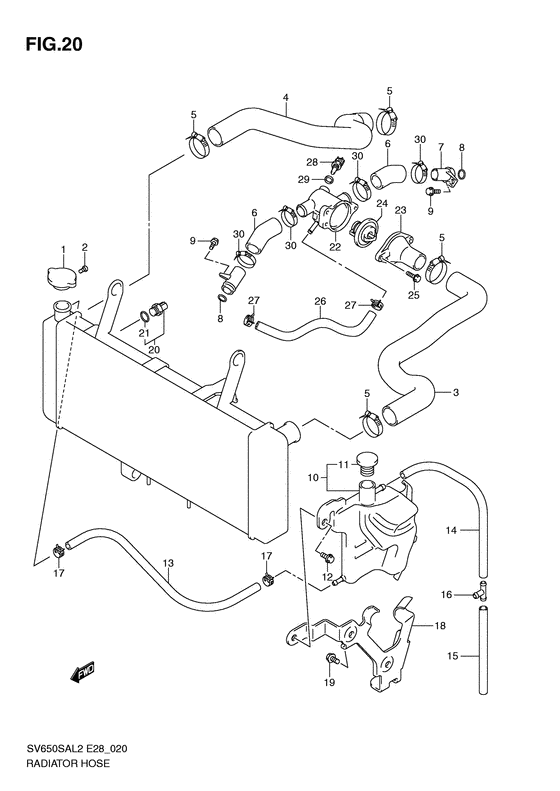

Radiator hose Diagram Suzuki SV650
- Year
- 2012
- Model code
- SV650SAL2(E28) L2
- Sales region
- Canada
- Engine Capacity
- 650
- Model
- SV650 (ABS)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17730-19D11-000 CAP,RADIATOR(1.1)Cap, radiator (1.1); |
17730-19D11-000 |
from US $15.68 |
||
|
2
|
2
17733-03D10-000 SCREW,RADIATOR CAPScrew, radiator cap; |
17733-03D10-000 |
from US $1.76 |
||
|
3
|
3
17851-17G10-000 HOSE,RADIATOR INLET |
17851-17G10-000 |
from US $23 |
||
|
4
|
4
17852-17G20-000 HOSE,RADIATOR OUTLET |
17852-17G20-000 |
from US $20.42 |
||
|
5
|
5
09402-38512-000 CLAMP |
09402-38512-000 |
from US $4.41 |
||
|
6
|
6
17853-19F00-000 HOSE,CONNECTOR INLET |
17853-19F00-000 |
from US $7.75 |
||
|
7
|
7
17890-06G20-000 UNION,CONNECTOR HOSEUnion, connector hose Union, connector hose; |
17890-06G20-000 |
from US $7.75 |
||
|
8
|
8
09280-18008-000
O RING(D:3.2,ID:17.8)
O ring (d:3.2,id:17.8); |
09280-18008-000 |
— | ||
| replacement | |||||
|
8
|
8
09280-18009-000 O RING(D:3.2,ID:17.8)O ring O ring (d:3.2,id:17.8); |
09280-18009-000 |
from US $3.04 |
||
|
9
|
9
07130-0612A-000 Bolt |
07130-0612A-000 |
from US $0.96 |
||
|
10
|
10
17910-17G10-000 Tank Assy,reservoir |
17910-17G10-000 |
from US $72.22 |
||
|
11
|
11
17931-02FA0-000 CAP,RESERVOIR TANKCap, reservoir tank; |
17931-02FA0-000 |
from US $5.93 |
||
|
12
|
12
09111-06085-000 BOLT(6X12)Bolt (6x12); |
09111-06085-000 |
from US $2.56 |
||
|
13
|
13
09352-50901-600 HOSE(5X9X600)Hose, lubrication no.2 Hose (5x9x600); L:600->550 |
09352-50901-600 |
from US $6.54 |
||
|
14
|
14
09352-50901-600 HOSE(5X9X600)Hose, lubrication no.2 Hose (5x9x600); L:600->400 |
09352-50901-600 |
from US $6.54 |
||
|
15
|
15
09352-70103-600
HOSE(7X10.2X600)
Hose (7x10.2x600); L:600->380 |
09352-70103-600 |
— | ||
| replacement | |||||
|
15
|
15
09352-70104-600 Hose(7X10.2X600)Hose (7x10.2x600); L:600->380 |
09352-70104-600 |
from US $5.60 |
||
|
16
|
16
09367-08005-000 3 WAY3 way (fltr to pump) |
09367-08005-000 |
from US $6.58 |
||
|
17
|
17
09401-08411-000 CLIPClip; |
09401-08411-000 |
from US $0.91 |
||
|
18
|
18
17920-17G10-000 BRACKET,RESERVOIR TANK |
17920-17G10-000 |
US $13.76 |
||
|
19
|
19
01550-0610A-000 Bolt |
01550-0610A-000 |
from US $0.96 |
||
|
20
|
20
17680-50F10-000
SWITCH,FAN THERMO
Switch, radiator fan; |
17680-50F10-000 |
— | ||
| replacement | |||||
|
20
|
20
17680-50F11-000 Switch Comp,rdtr FanSwitch, radiator fan; |
17680-50F11-000 |
from US $32.80 |
||
|
21
|
21
17689-50F00-000 O-RING |
17689-50F00-000 |
from US $0.74 |
||
|
22
|
22
17662-02F11-000 CONNECTOR,THERMOSTAT INLET |
17662-02F11-000 |
from US $33.60 |
||
|
23
|
23
17663-17G00-000 CAP,THERMOSTAT CONNECTOR |
17663-17G00-000 |
from US $14.70 |
||
|
24
|
24
17670-06G70-000
THERMOSTAT,WATER
|
17670-06G70-000 |
— | ||
| replacement | |||||
|
24
|
24
17670-06G71-000 Thermostat Comp,water |
17670-06G71-000 |
from US $22.26 |
||
|
25
|
25
01550-0616B-000 Bolt |
01550-0616B-000 |
from US $0.76 |
||
|
26
|
26
17856-19F00-000 HOSE,CONNECTOR TO WATER PUMP |
17856-19F00-000 |
from US $13.38 |
||
|
27
|
27
09401-12409-000
Clip
|
09401-12409-000 |
— | ||
| replacement | |||||
|
27
|
27
09401-12414-000 CLIP |
09401-12414-000 |
from US $1.76 |
||
|
28
|
28
13650-57F00-000 Sensor,water TempSensor, air temp Sensor, water temp; |
13650-57F00-000 |
from US $32.80 |
||
|
29
|
29
09168-12017-000 GASKET(12X17X1)Gasket, drain plug Gasket (12x17x1); |
09168-12017-000 |
from US $1.06 |
||
|
30
|
30
09402-28513-000 CLAMP |
09402-28513-000 |
from US $3.04 |
||
