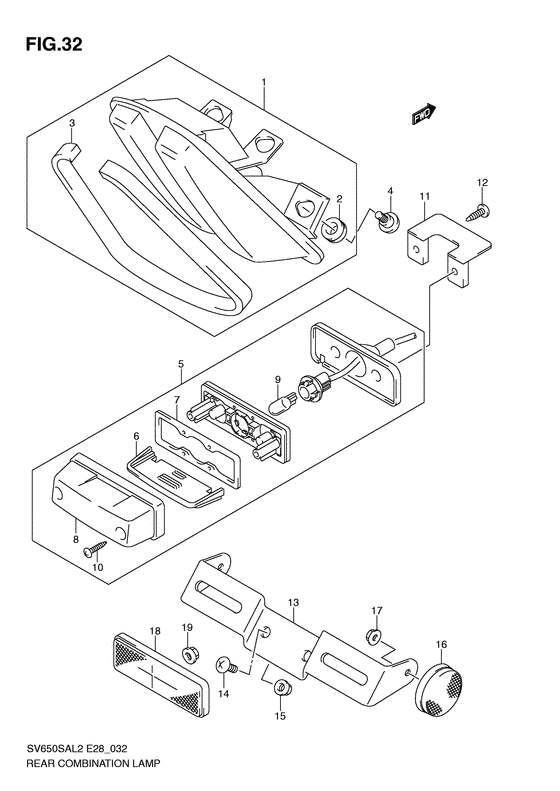

Rear combination lamp Diagram Suzuki SV650
- Year
- 2012
- Model code
- SV650SAL2(E28) L2
- Sales region
- Canada
- Engine Capacity
- 650
- Model
- SV650 (ABS)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35710-16G31-000 LAMP ASSY,RR COMBINATIONLamp assy, rear combination; |
35710-16G31-000 |
from US $153.16 |
||
|
2
|
2
09320-10049-000 CUSHION |
09320-10049-000 |
from US $3.71 |
||
|
3
|
3
45519-16G00-000
Cushion, seat tail cover rr
Cushion, seat tail cover; |
45519-16G00-000 |
— | ||
| replacement | |||||
|
3
|
3
45519-16G01-000 CUSHION,SEAT TAIL COVERCushion, seat tail cover; |
45519-16G01-000 |
from US $5.85 |
||
|
4
|
4
09139-06118-000 SCREW(6X22.5)Screw (6x22.5); |
09139-06118-000 |
from US $5.20 |
||
|
5
|
5
35910-16G10-000
Lamp assy,license
|
35910-16G10-000 |
— | ||
| replacement | |||||
|
5
|
5
35910-16G11-000 Lamp assy,license |
35910-16G11-000 |
from US $41.58 |
||
|
6
|
6
35912-16G00-000
Lens
|
35912-16G00-000 |
— | ||
| replacement | |||||
|
6
|
6
35912-16G01-000 LENS |
35912-16G01-000 |
from US $7.18 |
||
|
7
|
7
35913-16G00-000 GASKET |
35913-16G00-000 |
US $4.98 |
||
|
8
|
8
35917-16G00-000 COVER |
35917-16G00-000 |
from US $8.98 |
||
|
9
|
9
09471-12216-000 BULB(12V5W)Bulb (12v5w) Bulb (12v5w); |
09471-12216-000 |
from US $3.02 |
||
|
10
|
10
03211-0416A-000 SCREW |
03211-0416A-000 |
from US $0.76 |
||
|
11
|
11
35926-16G00-000 BRACKET,LICENSEBracket, license plate |
35926-16G00-000 |
from US $7.40 |
||
|
12
|
12
03541-0520B-000 SCREWScrew, fender |
03541-0520B-000 |
from US $0.96 |
||
|
13
|
13
35927-17G30-000 BRACKET,LICENSE PLATE |
35927-17G30-000 |
from US $8.83 |
||
|
14
|
14
02142-0616B-000 SCREWScrew, hinge Screw; |
02142-0616B-000 |
from US $2.82 |
||
|
15
|
15
08316-1006B-000 NUTNut; |
08316-1006B-000 |
from US $0.76 |
||
|
16
|
16
35970-14A20-000 REFLECTOR ASSY,RR SIDEReflector assy, side Reflector assy, rear side; |
35970-14A20-000 |
from US $7.74 |
||
|
17
|
17
08316-1005B-000 NUTNut, rr |
08316-1005B-000 |
US $3.96 |
||
|
18
|
18
35970-07F01-000 REFLECTOR ASSY,RRReflector assy, rear side; |
35970-07F01-000 |
from US $11.04 |
||
|
19
|
19
08316-1005B-000 NUTNut, rr |
08316-1005B-000 |
US $3.96 |
||
