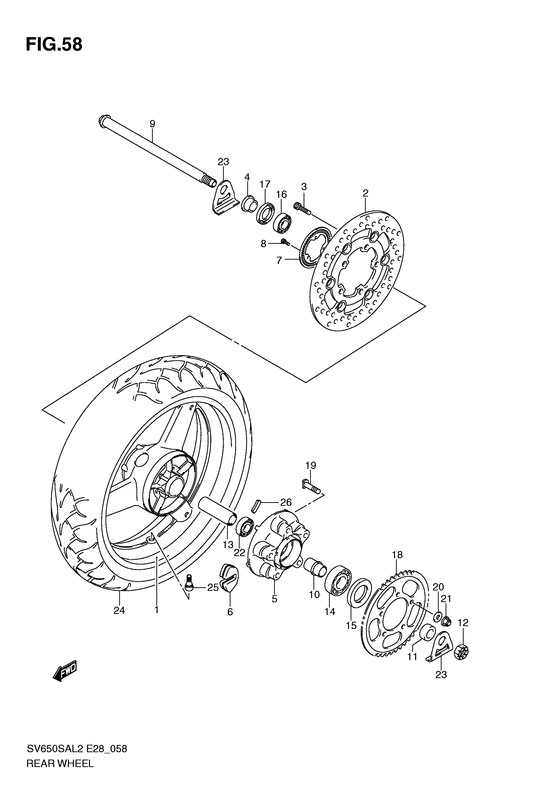

Rear wheel Diagram Suzuki SV650
- Year
- 2012
- Model code
- SV650SAL2(E28) L2
- Sales region
- Canada
- Engine Capacity
- 650
- Model
- SV650 (ABS)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64111-08F40-019 WHEEL,RR(17M/CXMT4.50)Wheel, rear (17m/cxmt4.50) (black) Wheel, rear 17m/cxmt4.50 (black); |
64111-08F40-019 |
from US $872.96 |
||
|
2
|
2
69211-38G00-000 DISC,RR BRAKE |
69211-38G00-000 |
from US $211.20 |
||
|
3
|
3
09106-08148-000 BOLT(8X33)Bolt (8x33); |
09106-08148-000 |
from US $1.98 |
||
|
4
|
4
64741-22D00-000 SPACER,RR AXLE,RSpacer, rear axle rh |
64741-22D00-000 |
from US $12.32 |
||
|
5
|
5
64611-19F00-000 DRUM,RR SPROCKET MOUNTINGDrum, rear sprocket mtg; |
64611-19F00-000 |
from US $138.74 |
||
|
6
|
6
64651-27A01-000 ABSORBER,RR HUB SHOCKAbsorber, rear hub shock Absorber, rear hub shock; |
64651-27A01-000 |
from US $8.98 |
||
|
7
|
7
64162-17G00-000 RING,SPEED SENSOR RR(50T) |
64162-17G00-000 |
from US $9.68 |
||
|
8
|
8
07130-0512A-000 BoltBolt, pulser/clamp |
07130-0512A-000 |
from US $0.96 |
||
|
9
|
9
64711-17G00-000 AXLE,RR |
64711-17G00-000 |
from US $90.53 |
||
|
10
|
10
64733-27A00-000 RETAINER,RR HUB BEARINGRetainer, drum Retainer, rr hub bearing; |
64733-27A00-000 |
from US $12.50 |
||
|
11
|
11
64751-26E00-000 SPACER,RR AXLE,LSpacer, lh |
64751-26E00-000 |
from US $14.08 |
||
|
12
|
12
08319-3118A-000 NUT |
08319-3118A-000 |
from US $8.79 |
||
|
13
|
13
09180-20062-000 SPACER(20.5X28X88)Spacer, front hub bearing Spacer (20.5x28x88); |
09180-20062-000 |
from US $21.96 |
||
|
14
|
14
09262-20042-000 BEARING(20X47X14)Bearing, lh (20x47x14) Bearing (20x47x14); Lh |
09262-20042-000 |
from US $22.40 |
||
|
15
|
15
09285-28001-000
SEAL,OIL(28X47X7)
Oil seal (28x47x7); |
09285-28001-000 |
— | ||
| replacement | |||||
|
15
|
15
09285-28004-000 OIL SEAL28x52x16 Oil seal (28x47x7); |
09285-28004-000 |
from US $9.73 |
||
|
16
|
16
09262-25073-000 BEARING(25X62X17)Bearing (25x62x17) Bearing (25x62x17); |
09262-25073-000 |
from US $14.59 |
||
|
17
|
17
09285-35001-000 SEAL,OIL(35X62X8)Oil seal (35x62x8); |
09285-35001-000 |
from US $8.64 |
||
|
18
|
18
64511-32C00-000 SPROCKET,RR(NT:45-525)Sprocket, rear (nt:45); |
64511-32C00-000 |
from US $93.47 |
||
|
19
|
19
09119-10043-000 BOLT(10X47)Bolt (10x47) |
09119-10043-000 |
from US $6.82 |
||
|
20
|
20
09160-10039-000 WASHER(10.5X22X2.3)Washer (10.5x22x2.3); |
09160-10039-000 |
from US $0.43 |
||
|
21
|
21
08319-3110A-000 NUTNut, fr differential |
08319-3110A-000 |
from US $1.98 |
||
|
22
|
22
08123-62047-000
BEARING
Rh |
08123-62047-000 |
— | ||
| replacement | |||||
|
22
|
22
08123-6204B-000 Bearing,rear Wheel HubRh |
08123-6204B-000 |
from US $12.31 |
||
|
23
|
23
61445-17G00-000 WASHER,CHAIN ADJUSTER |
61445-17G00-000 |
from US $5.59 |
||
|
24
|
24
65110-17G00-000 TIRE,RR(160/60 ZR17M/C 69W)Tire, rear, 160/60zr17m/c (69w)(dunlop) Tire, rear, 160/60zr17m/c (69w)(dunlop); |
65110-17G00-000 |
from US $390.08 |
||
|
25
|
25
43130-24A00-000 VALVE ASSY, WHEEL RIM(TR412)Valve assy, wheel rim (tr412) Valve assy, wheel rim (tr412); |
43130-24A00-000 |
from US $4.41 |
||
|
26
|
26
55411-22H00-000 BALANCER,WHEEL(10G)Balancer, wheel no.1; |
55411-22H00-000 |
from US $2.82 |
||
|
26
|
26
55412-22H00-000 BALANCER,WHEEL(20G)Balancer, wheel no.2; |
55412-22H00-000 |
from US $2.82 |
||
|
26
|
26
55413-22H00-000 BALANCER,WHEEL(30G)Balancer, wheel no.3; |
55413-22H00-000 |
from US $2.82 |
||
