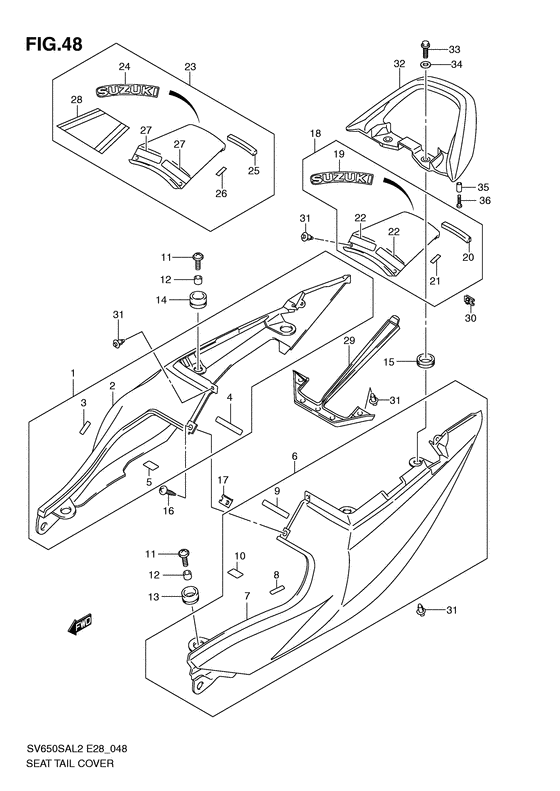

Seat tail cover Diagram Suzuki SV650
- Year
- 2012
- Model code
- SV650SAL2(E28) L2
- Sales region
- Canada
- Engine Capacity
- 650
- Model
- SV650 (ABS)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45501-16G21-YAY COVER,SEAT TAIL,R(BLACK)Cover, seat tail, r (black) Cover set, seat tail rh (black); |
45501-16G21-YAY |
from US $152.35 |
||
|
1
|
1
45501-16G21-YBD COVER,SEAT TAIL,R(WHITE)Cover set, seat tail rh (white); |
45501-16G21-YBD |
US $152.35 |
||
|
2
|
2
45511-16G02-YAY COVER,SEAT TAIL,RCover, seat tail, r (black) Cover, seat tail, rh (black); |
45511-16G02-YAY |
US $152.35 |
||
|
3
|
3
45516-42F00-000 TAPE,COVERTape, seat tail cover fr; |
45516-42F00-000 |
from US $8.48 |
||
|
4
|
4
45517-16G10-000 TAPE,SEAT TAIL COVER NO.2 FR |
45517-16G10-000 |
from US $6.15 |
||
|
5
|
5
47161-10D00-000 PROTECTOR,FRAME COVERTape, seat tail cover rr no.2 Tape, seat tail cover fr no.3; |
47161-10D00-000 |
from US $1.92 |
||
|
6
|
6
45502-16G21-YAY COVER,SEAT TAIL,L(BLACK)Cover, seat tail, l (black) Cover set, seat tail lh (black); |
45502-16G21-YAY |
from US $152.35 |
||
|
6
|
6
45502-16G21-YBD COVER,SEAT TAIL,L(WHITE)Cover set, seat tail lh (white); |
45502-16G21-YBD |
US $152.35 |
||
|
7
|
7
45512-16G02-YAY COVER,SEAT TAIL,LCover, seat tail, l (black) Cover, seat tail, lh (black); |
45512-16G02-YAY |
US $152.35 |
||
|
8
|
8
45516-42F00-000 TAPE,COVERTape, seat tail cover fr; |
45516-42F00-000 |
from US $8.48 |
||
|
9
|
9
45517-16G10-000 TAPE,SEAT TAIL COVER NO.2 FR |
45517-16G10-000 |
from US $6.15 |
||
|
10
|
10
47161-10D00-000 PROTECTOR,FRAME COVERTape, seat tail cover rr no.2 Tape, seat tail cover fr no.3; |
47161-10D00-000 |
from US $1.92 |
||
|
11
|
11
09136-06082-000 SCREW(6X25)Vis, bas Screw (6x25); |
09136-06082-000 |
from US $3.35 |
||
|
12
|
12
09180-06286-000 SPACER(6.5X10X9.4)Spacer (6.5x10x9.4); |
09180-06286-000 |
from US $1.52 |
||
|
13
|
13
09320-10052-000 CUSHIONCushion, rear |
09320-10052-000 |
US $3.62 |
||
| replacement | |||||
|
13
|
13
09320-10079-000 Cushion |
09320-10079-000 |
from US $5.78 |
||
|
14
|
14
47115-16G00-000
CUSHION,SEAT TAIL COVER CTR
|
47115-16G00-000 |
— | ||
| replacement | |||||
|
14
|
14
47115-16G01-000 Cushion,frame Cover Up |
47115-16G01-000 |
from US $2.24 |
||
|
15
|
15
09320-20010-000
CUSHION
|
09320-20010-000 |
— | ||
| replacement | |||||
|
15
|
15
09320-20011-000 Cushion |
09320-20011-000 |
from US $4.25 |
||
|
16
|
16
03241-1512B-000 SCREW |
03241-1512B-000 |
from US $0.76 |
||
|
17
|
17
09148-05038-000 NUTNut, inner |
09148-05038-000 |
from US $0.91 |
||
|
18
|
18
45503-16G00-4CX COVER,SEAT TAIL CTRCover, seat tail, center (black); For yay |
45503-16G00-4CX |
US $79.49 |
||
|
19
|
19
68161-16G00-17U EMBLEM,SUZUKIEmblem, "suzuki" (gray); For yay |
68161-16G00-17U |
from US $5.87 |
||
|
20
|
20
45518-16G00-000 CUSHION,SEAT TAIL COVER CTRCushion, seat tail cover ctr; For yay |
45518-16G00-000 |
from US $3.02 |
||
|
21
|
21
45517-16G00-000 TAPE,SEAT TAIL COVERTape, seat tail cover lower Tape, seat tail cover; For yay |
45517-16G00-000 |
from US $8.32 |
||
|
22
|
22
45516-42F00-000 TAPE,COVERTape, seat tail cover ctr; For yay |
45516-42F00-000 |
from US $8.48 |
||
|
23
|
23
45503-17G00-YBD
COVER,SEAT TAIL CTR
Cover, seat tail, center (white); For ybd |
45503-17G00-YBD |
— | ||
| replacement | |||||
|
23
|
23
45503-17G01-YBD Cover,seat Tail CtrCover, seat tail, center (white); For ybd |
45503-17G01-YBD |
US $108.19 |
||
|
24
|
24
68161-16G00-17U EMBLEM,SUZUKIEmblem, "suzuki" (gray); For ybd |
68161-16G00-17U |
from US $5.87 |
||
|
25
|
25
45518-16G00-000 CUSHION,SEAT TAIL COVER CTRCushion, seat tail cover ctr; For ybd |
45518-16G00-000 |
from US $3.02 |
||
|
26
|
26
45517-16G00-000 TAPE,SEAT TAIL COVERTape, seat tail cover lower Tape, seat tail cover; For ybd |
45517-16G00-000 |
from US $8.32 |
||
|
27
|
27
45516-42F00-000 TAPE,COVERTape, seat tail cover ctr; For ybd |
45516-42F00-000 |
from US $8.48 |
||
|
28
|
28
68165-17G00-LR5
TAPE,SEAT TAIL COVER CTR
Tape, seat tail cover ctr (blue/white); For ybd |
68165-17G00-LR5 |
— | ||
| replacement | |||||
|
28
|
28
68165-17G01-LR5 Tape,seat Tail Cover CtrTape, seat tail cover ctr (blue/white); For ybd |
68165-17G01-LR5 |
US $25.76 |
||
|
29
|
29
45514-16G00-YAY COVER,SEAT TAIL RRCover, seat tail, rear (black); |
45514-16G00-YAY |
from US $49.68 |
||
|
29
|
29
45514-16G00-YBD COVER,SEAT TAIL RRCover, seat tail, rear (white); |
45514-16G00-YBD |
US $50.05 |
||
|
30
|
30
09148-06018-000 NUTNut, buckrest rear cover |
09148-06018-000 |
from US $1.52 |
||
|
31
|
31
09409-06314-5PK CLIP(BLACK)Clip (black); |
09409-06314-5PK |
from US $1.52 |
||
|
32
|
32
46211-16G00-YAY HANDLE,PILLION RIDERHandle, pillion rider (black); |
46211-16G00-YAY |
from US $204.24 |
||
|
32
|
32
46211-16G00-YBD HANDLE,PILLION RIDERHandle, pillion rider (white); |
46211-16G00-YBD |
US $206.08 |
||
|
33
|
33
01551-0840B-000 BoltBolt, bracket |
01551-0840B-000 |
from US $5.27 |
||
|
34
|
34
09160-08158-000 WASHER(8.5X24X2.3)Washer (8.5x24x2.3); |
09160-08158-000 |
from US $3.71 |
||
|
35
|
35
09180-06271-000 SPACER(6.5X9X18)Spacer (6.5x9x18) Spacer (6.5x9x18); |
09180-06271-000 |
from US $1.53 |
||
|
36
|
36
09139-06112-000 SCREW(6X25)Screw (6x25); |
09139-06112-000 |
from US $5.36 |
||
