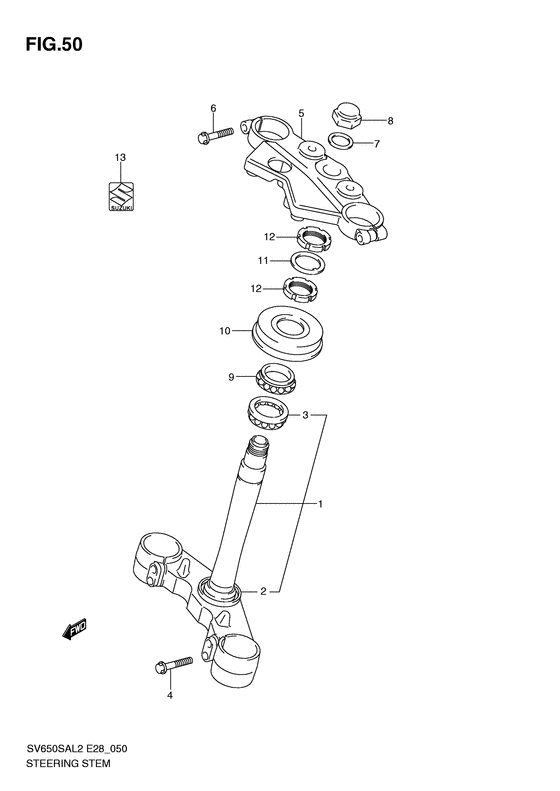

Steering stem Diagram Suzuki SV650
- Year
- 2012
- Model code
- SV650SAL2(E28) L2
- Sales region
- Canada
- Engine Capacity
- 650
- Model
- SV650 (ABS)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-17G90-000 STEM,STEERING |
51410-17G90-000 |
from US $440 |
||
|
2
|
2
51644-12C00-000 SEAL,STEERING LWRSeal, lower Seal, stem lower; |
51644-12C00-000 |
from US $6.84 |
||
|
3
|
3
09267-30010-000 BEARING(30X55X17)Bearing (30x55x17); |
09267-30010-000 |
from US $23.56 |
||
|
4
|
4
51328-03FK0-000 BOLT(8X40) |
51328-03FK0-000 |
from US $1.60 |
||
|
5
|
5
51311-17G20-000 HEAD,STEERING STEM |
51311-17G20-000 |
from US $314.64 |
||
|
6
|
6
51328-03FK0-000 BOLT(8X40) |
51328-03FK0-000 |
from US $1.60 |
||
|
7
|
7
51354-42E00-000 WASHER |
51354-42E00-000 |
from US $7.75 |
||
|
8
|
8
51353-27G00-000 NUT |
51353-27G00-000 |
from US $17.07 |
||
|
9
|
9
09267-30010-000 BEARING(30X55X17)Bearing (30x55x17); |
09267-30010-000 |
from US $23.56 |
||
|
10
|
10
51643-33E00-000 SEAL,STEERING UPR DUSTSeal, steering upper, dust Seal, stem dust upper; |
51643-33E00-000 |
from US $8.51 |
||
|
11
|
11
51641-33E00-000 WASHER,STEERING STEMWasher, steering stem; |
51641-33E00-000 |
from US $5.10 |
||
|
12
|
12
51631-33E00-000 NUT,STEERING STEMNut, steering stem; |
51631-33E00-000 |
US $33.51 |
||
|
13
|
13
68281-35F00-000 EMBLEM, SEmblem, "s"; |
68281-35F00-000 |
from US $7.45 |
