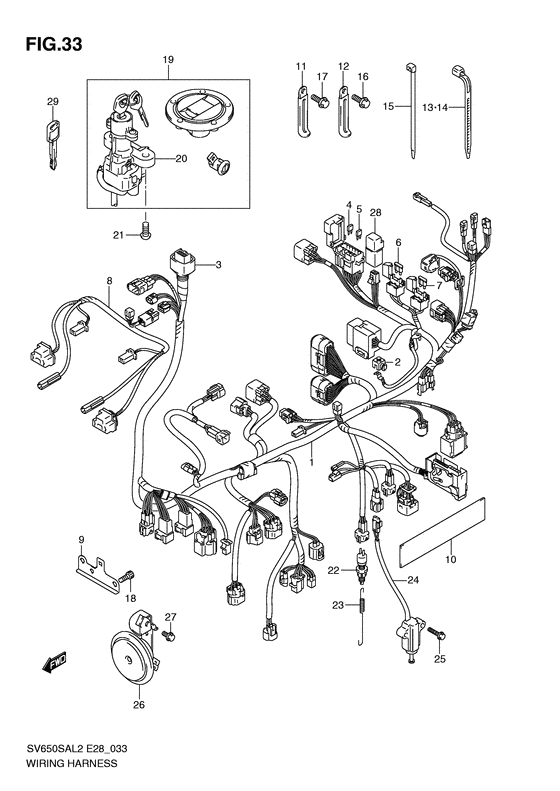

Wiring harness Diagram Suzuki SV650
- Year
- 2012
- Model code
- SV650SAL2(E28) L2
- Sales region
- Canada
- Engine Capacity
- 650
- Model
- SV650 (ABS)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-17GQ1-000 HARNESS,WIRING NO.1 |
36610-17GQ1-000 |
US $661.76 |
||
|
2
|
2
33624-16G00-000 CAP,BATTERY PLUSCap, battery plus Cap, battery plus; |
33624-16G00-000 |
from US $3.24 |
||
|
3
|
3
36618-33E00-000 COVER,SPEEDOMETER COUPLERCover, speedometer coupler; |
36618-33E00-000 |
from US $4.12 |
||
|
4
|
4
09481-10501-000 FUSE(10A)Fuse (10a); |
09481-10501-000 |
from US $1.01 |
||
|
5
|
5
09481-15501-000 FUSE(15A)Fuse (15a); |
09481-15501-000 |
from US $1.28 |
||
|
6
|
6
09481-25103-000 FUSE(25A)Fuse (25a); |
09481-25103-000 |
from US $0.77 |
||
|
7
|
7
09481-40101-000 FUSE(40A)Fuse (40a); |
09481-40101-000 |
from US $5.69 |
||
|
8
|
8
36620-16G10-000 HARNESS,WIRING NO.2Harness, wiring, no.2; |
36620-16G10-000 |
from US $89.60 |
||
| replacement | |||||
|
8
|
8
36620-16G11-000 Harness,wiring No.2Harness, wiring, no.2; |
36620-16G11-000 |
from US $89.60 |
||
|
9
|
9
36687-17G10-000 HOLDER,COUPLER |
36687-17G10-000 |
US $3.50 |
||
|
10
|
10
33652-26E00-000 PROTECTOR(20X90)X1.0Protector (20x90x1) Protector (20x90x1.0); |
33652-26E00-000 |
from US $1.91 |
||
|
11
|
11
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire Clamp (l:45); |
09404-06429-000 |
from US $1.52 |
||
|
12
|
12
09404-06433-000
CLAMP(L:80)
Clamp (l:80); |
09404-06433-000 |
— | ||
| replacements | |||||
|
12
|
12
09404-06434-000
CLAMP(L:80 T:1.0)
Clamp (l:80); |
09404-06434-000 |
— | ||
|
12
|
12
09404-06436-000 Clamp(L:80)Clamp (l:80); |
09404-06436-000 |
from US $2.13 |
||
|
12
|
12
09404-06036-000 Clamp(L:80)Clamp (l:80); |
09404-06036-000 |
from US $1.82 |
||
|
13
|
13
09407-11401-000 CLAMP(L:95)Clamp, stator lead Clamp (l:95); |
09407-11401-000 |
from US $1.76 |
||
|
14
|
14
09407-18402-000 CLAMP(L:165)Clamp (l:165) Clamp (l:165); |
09407-18402-000 |
from US $0.77 |
||
|
15
|
15
09407-14407-000 CLAMP(L:145)Band Clamp (l:145); |
09407-14407-000 |
from US $2.08 |
||
|
16
|
16
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
17
|
17
01550-0610A-000 Bolt |
01550-0610A-000 |
from US $0.96 |
||
|
18
|
18
07130-0610B-000 BoltScrew; |
07130-0610B-000 |
from US $0.96 |
||
|
19
|
19
37000-16840-000
Lock set
|
37000-16840-000 |
— | ||
| replacements | |||||
|
19
|
19
37000-16841-000
LOCK SET
|
37000-16841-000 |
— | ||
|
19
|
19
37000-16842-000 Lock Set |
37000-16842-000 |
US $397.44 |
||
|
20
|
20
37100-16G00-000
Lock assy, steering
|
37100-16G00-000 |
— | ||
| replacement | |||||
|
20
|
20
37100-16G01-000 LOCK ASSY,STEERING |
37100-16G01-000 |
US $168.28 |
||
|
21
|
21
09139-08016-000 BOLT(8X20)Screw (8x20) Bolt (8x20); |
09139-08016-000 |
from US $1.60 |
||
|
22
|
22
37740-45D00-000 SWITCH ASSY,STOP LAMPSwitch assy, stop lamp; |
37740-45D00-000 |
from US $16.10 |
||
| replacement | |||||
|
22
|
22
37740-31D00-000 SWITCH ASSY,STOP LAMPSwitch assy, stop lamp Switch assy, stop lamp; |
37740-31D00-000 |
from US $20.80 |
||
|
23
|
23
09443-06016-000 SPRINGSpring, stop lamp |
09443-06016-000 |
from US $4.49 |
||
|
24
|
24
37840-16G00-000
Switch Assy,Side Stand
|
37840-16G00-000 |
— | ||
| replacement | |||||
|
24
|
24
37840-16G01-000 Switch Assy,Side Stand |
37840-16G01-000 |
from US $80.22 |
||
|
25
|
25
01550-06257-000 Bolt |
01550-06257-000 |
from US $1.12 |
||
|
26
|
26
38500-17G11-000 HORN ASSY |
38500-17G11-000 |
from US $58.51 |
||
|
27
|
27
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
28
|
28
38740-24X50-000 RELAY ASSYRelay, neutral start Relay assy, fuel pump; |
38740-24X50-000 |
from US $25.08 |
||
|
29
|
29
37146-33E00-000 KEY,BLANKOpt |
37146-33E00-000 |
from US $27.28 |
||
