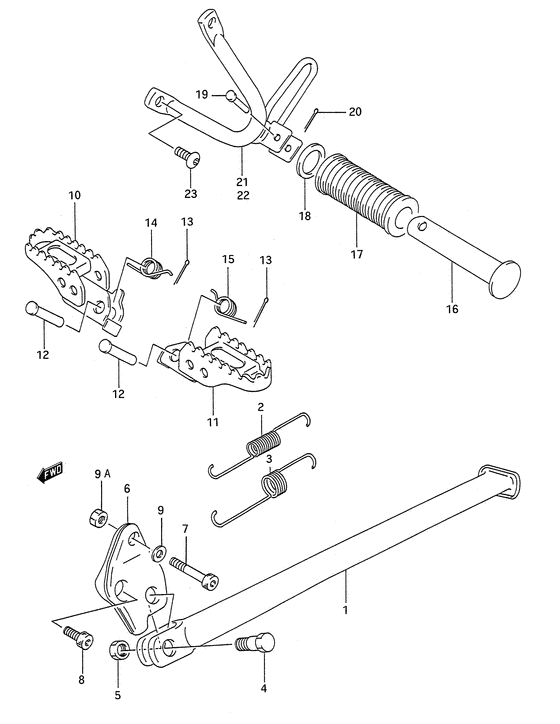

Stand Diagram Suzuki TS200
- Year
- 1991
- Model code
- TS200RM(E28) M
- Engine Capacity
- 200
- Model
- TS200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42310-08D20-0NF
Stand, prop (blue)
Stand, prop (blue); Model m |
42310-08D20-0NF |
— | ||
|
1
|
1
42310-08D20-019
Stand, prop (black)
Stand, prop (black); |
42310-08D20-019 |
— | ||
|
2
|
2
09443-14062-000
Spring
|
09443-14062-000 |
— | ||
| replacement | |||||
|
2
|
2
09443-14062-XC0 SPRING |
09443-14062-XC0 |
US $51.90 |
||
|
3
|
3
09443-20003-000 SPRINGSpring, outer |
09443-20003-000 |
from US $3.65 |
||
|
4
|
4
09111-10019-000
Bolt
|
09111-10019-000 |
— | ||
| replacement | |||||
|
4
|
4
09111-10047-000 BOLT(10X30) |
09111-10047-000 |
from US $1.76 |
||
|
5
|
5
08310-22107-000
Nut 10mm rh
|
08310-22107-000 |
— | ||
| replacement | |||||
|
5
|
5
08310-00107-000 NUT |
08310-00107-000 |
from US $0.80 |
||
|
6
|
6
42330-08D20-0NF
Bracket, prop stand (blue)
Bracket, prop stand (blue); Model m |
42330-08D20-0NF |
— | ||
|
6
|
6
42330-08D20-019
Bracket, prop stand (black)
Bracket, prop stand (black); |
42330-08D20-019 |
— | ||
|
7
|
7
09106-08097-000 BOLT(8X25)Bolt (8x25) Bolt, upper (8x25); |
09106-08097-000 |
from US $4.28 |
||
|
8
|
8
09106-08106-000 BOLT(8X20)Bolt, lower (8x20); |
09106-08106-000 |
from US $4.13 |
||
|
9
|
9
09164-08015-000 WASHERWasher; |
09164-08015-000 |
from US $1.52 |
||
|
9A
|
9A
08310-22085-000
Nut
|
08310-22085-000 |
— | ||
| replacement | |||||
|
9A
|
9A
09140-08021-000 NUT |
09140-08021-000 |
from US $3.59 |
||
|
10
|
10
43550-08D01-0NF
Footrest, front rh (blue)
Footrest, front rh (blue); Model m |
43550-08D01-0NF |
— | ||
| replacement | |||||
|
10
|
10
43550-08D01-019
FOOTREST,FR,R
Footrest, front rh (blue); Model m |
43550-08D01-019 |
— | ||
|
10
|
10
43550-08D01-019
FOOTREST,FR,R
Footrest, front rh (black); |
43550-08D01-019 |
— | ||
|
11
|
11
43560-08D01-0NF
Footrest, front lh (blue)
Footrest, front lh (blue); Model m |
43560-08D01-0NF |
— | ||
| replacement | |||||
|
11
|
11
43560-08D01-019 FOOTREST,FR,LFootrest, front lh (blue); Model m |
43560-08D01-019 |
US $47.10 |
||
|
11
|
11
43560-08D01-019 FOOTREST,FR,LFootrest, front lh (black); |
43560-08D01-019 |
US $47.10 |
||
|
12
|
12
09200-10013-000 PIN |
09200-10013-000 |
from US $4.06 |
||
|
13
|
13
04111-25208-000
25 x 20 cotter
Cotter pin; |
04111-25208-000 |
— | ||
| replacement | |||||
|
13
|
13
04111-2520A-000 PINCotter pin; |
04111-2520A-000 |
from US $0.80 |
||
|
14
|
14
09448-15007-000
Spring, rh
|
09448-15007-000 |
— | ||
| replacement | |||||
|
14
|
14
09448-15004-000 SPRING |
09448-15004-000 |
from US $3.57 |
||
|
15
|
15
09448-15012-000
Spring lh
|
09448-15012-000 |
— | ||
| replacement | |||||
|
15
|
15
09448-15012-XC0
SPRING
|
09448-15012-XC0 |
— | ||
|
16
|
16
43610-03001-000 BAR,FOOTREST RUBBERBar, pillion footrest Bar, footrest rubber; |
43610-03001-000 |
from US $10.56 |
||
|
17
|
17
43612-33200-000
Rubber
Rubber, pillion footrest; |
43612-33200-000 |
— | ||
| replacements | |||||
|
17
|
17
43612-33201-000
RUBBER,PILLION FOOTREST
Rubber, pillion footrest; |
43612-33201-000 |
— | ||
|
17
|
17
43612-33210-000 Rubber,pillion FootrestRubber, pillion footrest; |
43612-33210-000 |
from US $3.72 |
||
|
18
|
18
09160-19006-000 Washer |
09160-19006-000 |
US $2.78 |
||
| replacement | |||||
|
18
|
18
09160-19024-000 WASHER(19.5X32X2) |
09160-19024-000 |
from US $1.28 |
||
|
19
|
19
09200-06010-000 PINPin Pin; |
09200-06010-000 |
from US $1.12 |
||
|
20
|
20
04111-20208-000 20 x 20 cotterCotter pin Cotter pin; |
04111-20208-000 |
US $1.16 |
||
| replacement | |||||
|
20
|
20
04111-2020A-000 PINCotter pin, rod end Cotter pin; |
04111-2020A-000 |
from US $0.76 |
||
|
21
|
21
43650-03D00-0NF
Bracket, pillion rh (blue)
Bracket, pillion rh (blue); Model m |
43650-03D00-0NF |
— | ||
| replacement | |||||
|
21
|
21
43650-03D00-019
BRACKET,PILLION FOOT,R(BLACK)
Bracket, pillion rh (blue); Model m |
43650-03D00-019 |
— | ||
|
21
|
21
43650-03D00-019
BRACKET,PILLION FOOT,R(BLACK)
Bracket, pillion rh (black); |
43650-03D00-019 |
— | ||
|
22
|
22
43750-03D00-0NF
Bracket, pillion lh (blue)
Bracket, pillion lh (blue); Model m |
43750-03D00-0NF |
— | ||
| replacement | |||||
|
22
|
22
43750-03D00-019
Bracket, pillion lh (black)
Bracket, pillion lh (blue); Model m |
43750-03D00-019 |
— | ||
|
22
|
22
43750-03D00-019
Bracket, pillion lh (black)
Bracket, pillion lh (black); |
43750-03D00-019 |
— | ||
|
23
|
23
01107-08207-000 Bolt, rearModel m |
01107-08207-000 |
US $2.38 |
||
| replacement | |||||
|
23
|
23
01500-08207-000 BoltModel m |
01500-08207-000 |
from US $0.76 |
||
|
23
|
23
01517-08207-000
Bolt
Model n/p |
01517-08207-000 |
— | ||
| replacement | |||||
|
23
|
23
01550-08207-000 BoltModel n/p |
01550-08207-000 |
from US $1.12 |
||
